Tractor · 1980Unverified

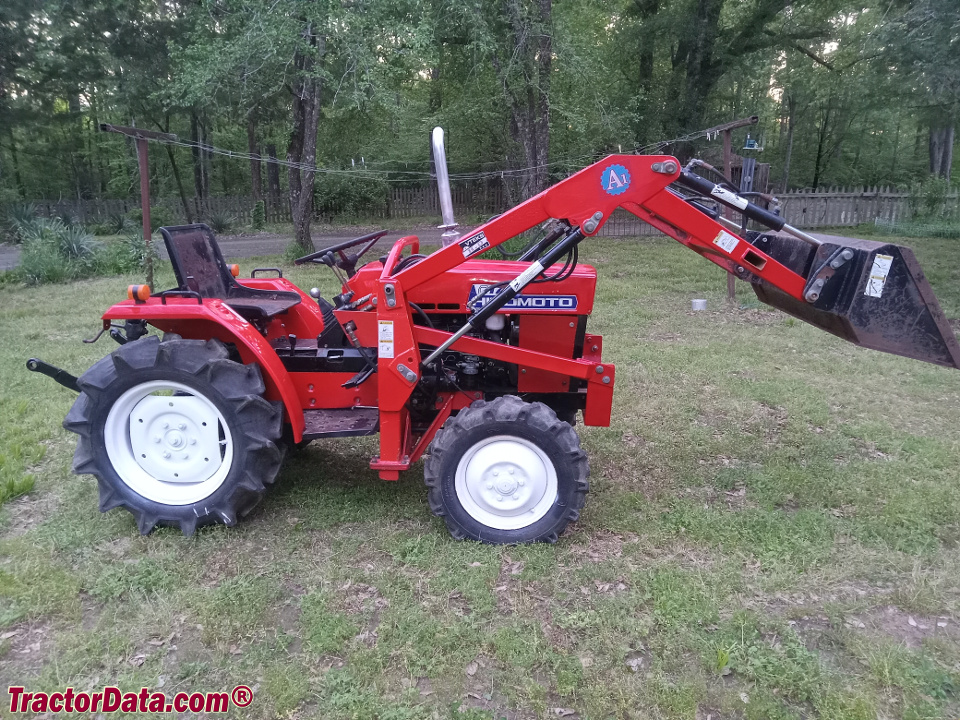

Hinomoto C174
Hinomoto C174 — Concord Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
725 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Variants
C1722WDReference
C1744WDReference
Engine
Toyosha 1.0L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine (gross)14.7 kWReference
Engine (net)13.3 kWReference
Toyosha CS100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke73 x 80 mmReference
Power (net)13.3 kWReference
Power (gross)14.7 kWReference
Rated RPM2500Reference
Torque54.9 NmReference
Torque RPM1800Reference
StarterelectricReference
Starter volts12Reference
Starter power0.8 kWReference
Oil capacity2.2 LReference
Coolant capacity3.0 LReference
Transmission
9-speed synchronizedReference
TypesynchronizedReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity17.0 LReference
PTO & Hydraulics
PTO (claimed)11.0 kWReference
Typeopen centerReference
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase129 cmReference
Weight725 kgReference
Front tire5.00-14Reference
Rear tire8.00-18Reference
Ag front5.00-14Reference
Ag rear8.00-18Reference
Lawn/turf front20.5x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length210 cmReference
Width103 cmReference
Height (steering wheel)119 cmReference
Ground clearance27 cmReference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Charging amps12.5Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
