Tractor · 1977Unverified

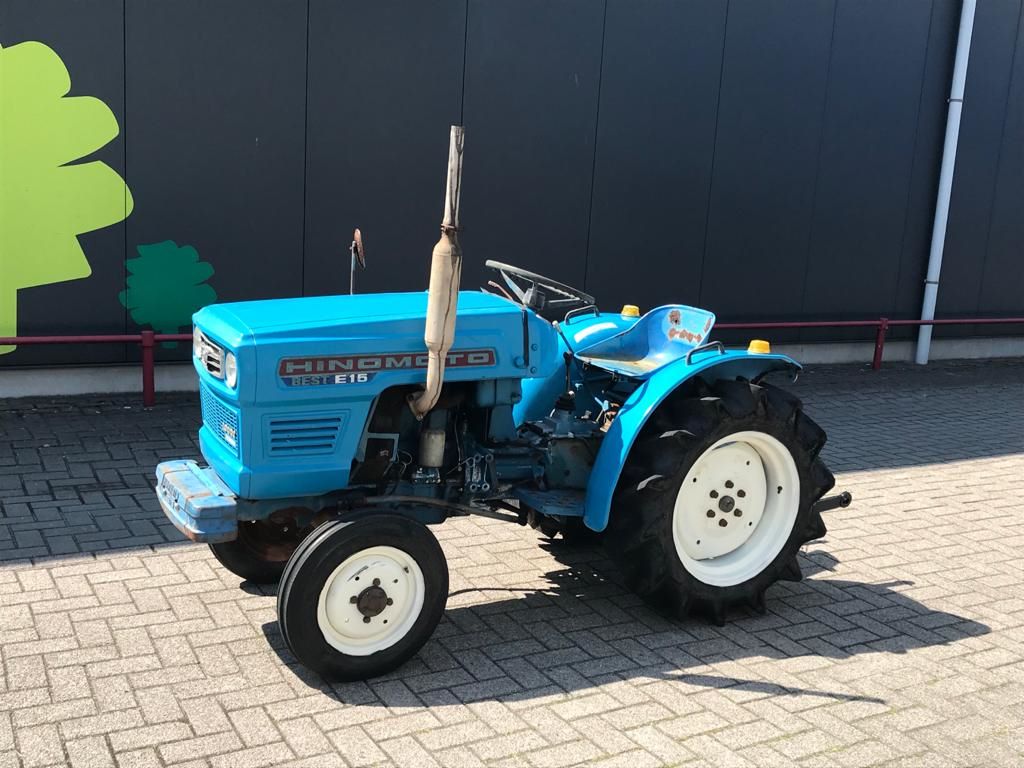

Hinomoto E15
Hinomoto E15 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1538 to 1650 pounds
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
E15D4WDReference
Engine
Toyosha 1.0L 2-cyl dieselReference
Engine11.8 kWReference
Toyosha S100Reference
dieselReference
2-cylinderReference
liquid-cooled inlineReference
Displacement1.0 LReference
Bore/Stroke84 x 80 mmReference
Power11.8 kWReference
Rated RPM2300Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type547/875/1000Reference
Dimensions
Weight1538 to 1650 poundsReference
Front tire5-12Reference
Rear tire8-18Reference
Ag front5-12Reference
Ag rear8-18Reference
Ag rear7-24Reference
Length226 cmReference
Width104 cmReference
Height121 cmReference
2WD Weight697 kgReference
4WD Weight748 kgReference
Ground clearance23 cmReference
E15 Serial Numbers
Location:Serial number plate in front of the gear shift lever.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
