Tractor · 1977Unverified

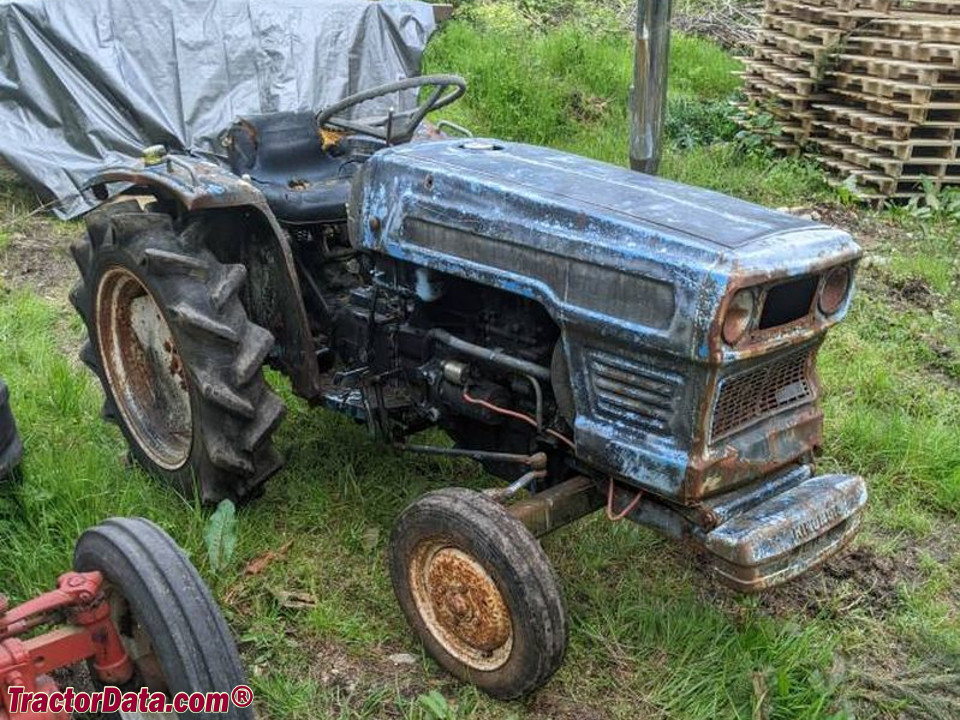

Hinomoto E16
Hinomoto E16 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1635 to 1760 pounds
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
E16D4WDReference
Engine
Toyosha 1.1L 2-cyl dieselReference
Engine11.8 kWReference
Toyosha S110Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Power11.8 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type547/875/1000Reference
Dimensions
Weight1635 to 1760 poundsReference
Front tire4.00-12Reference
Rear tire8.3-24Reference
Ag front4.00-12Reference
Ag rear8.3-24Reference
Ag rear7-24Reference
Length236 cmReference
Width114 cmReference
Height127 cmReference
2WD Weight741 kgReference
4WD Weight798 kgReference
Ground clearance28 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
