Tractor · 1977Unverified

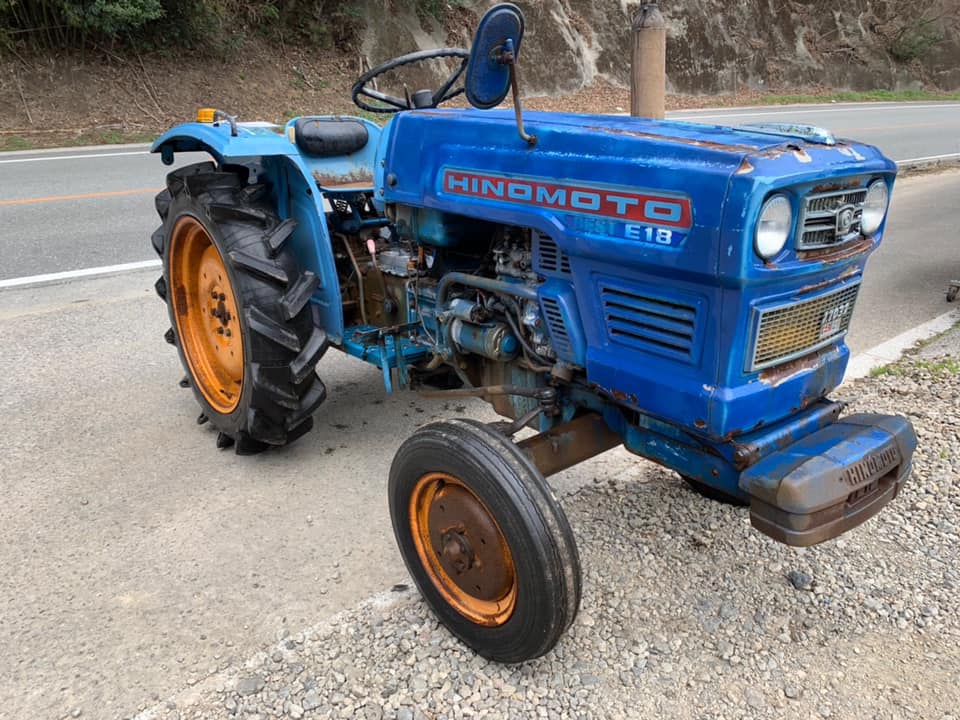

Hinomoto E18
Hinomoto E18 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1742 to 1870 pounds
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
E18D4WDReference
Engine
Toyosha 1.1L 2-cyl dieselReference
Engine13.4 kWReference
Toyosha S111Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Power13.4 kWReference
Dimensions
Weight1742 to 1870 poundsReference
Front tire4.00-12Reference
Rear tire8.3/8-24Reference
Ag front4.00-12Reference
Ag rear8.3/8-24Reference
Length238 cmReference
Width114 cmReference
Height127 cmReference
2WD Weight790 kgReference
4WD Weight848 kgReference
Links
Wiring diagram: E18 wiring diagram from Art LeerskovReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
