Tractor · 1977Unverified

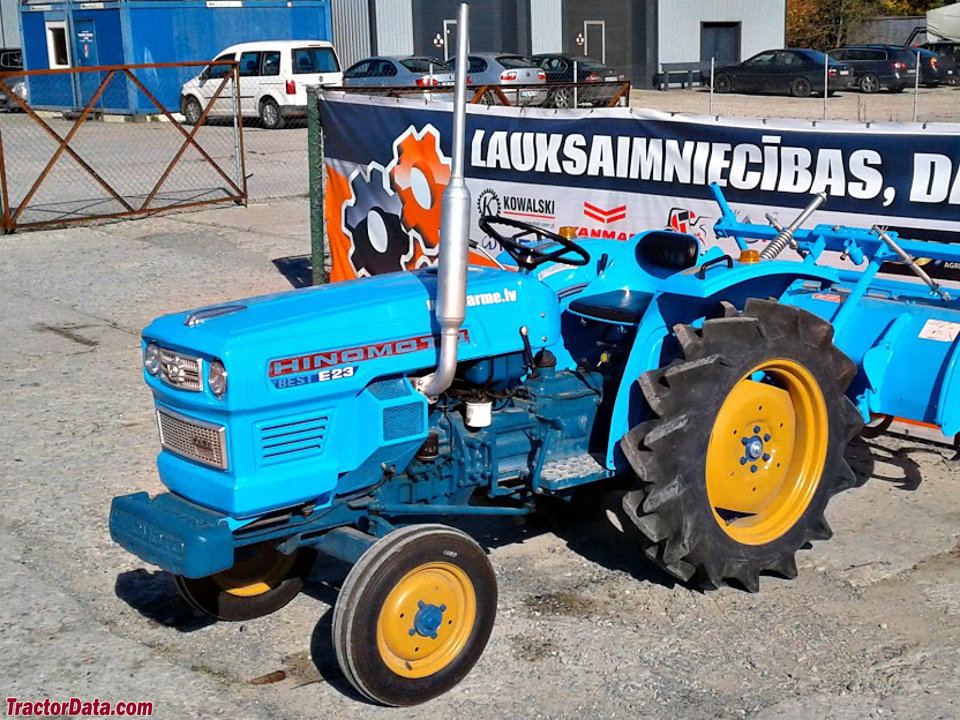

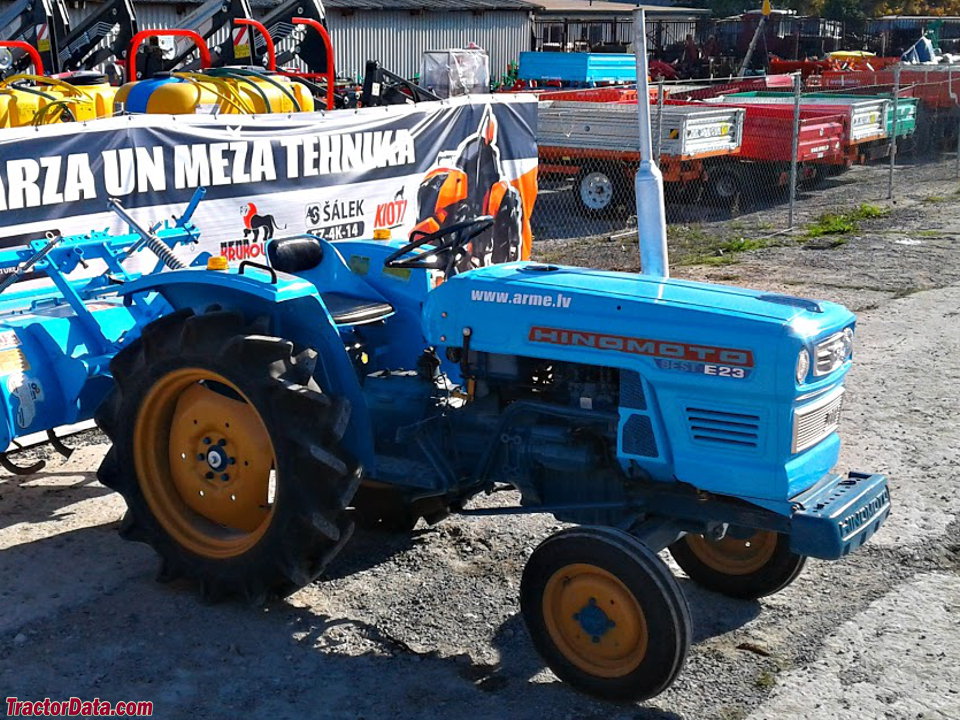

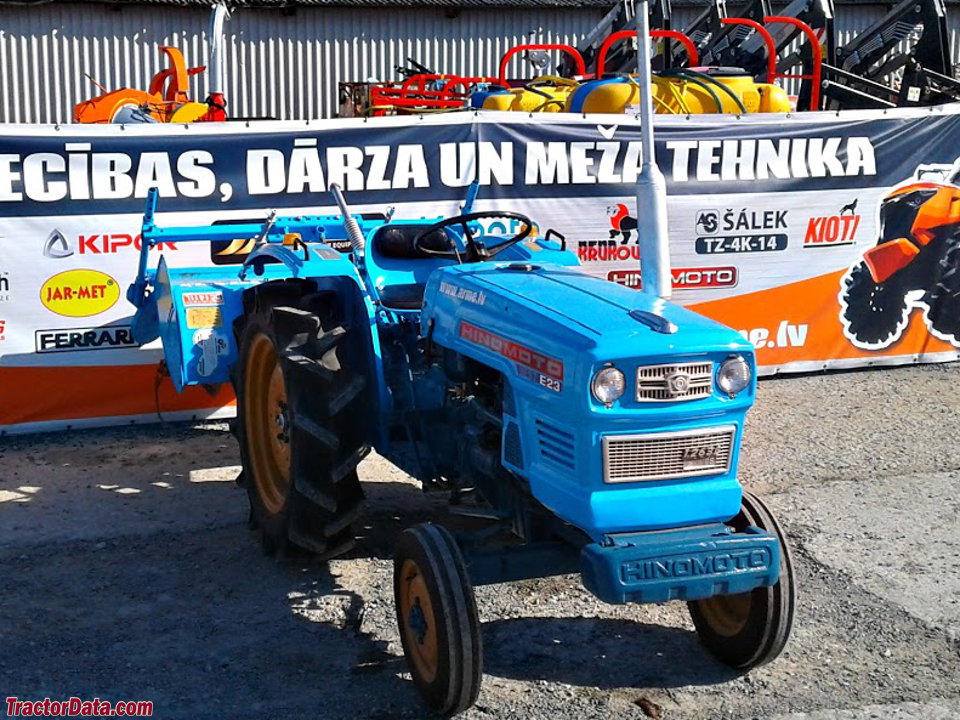

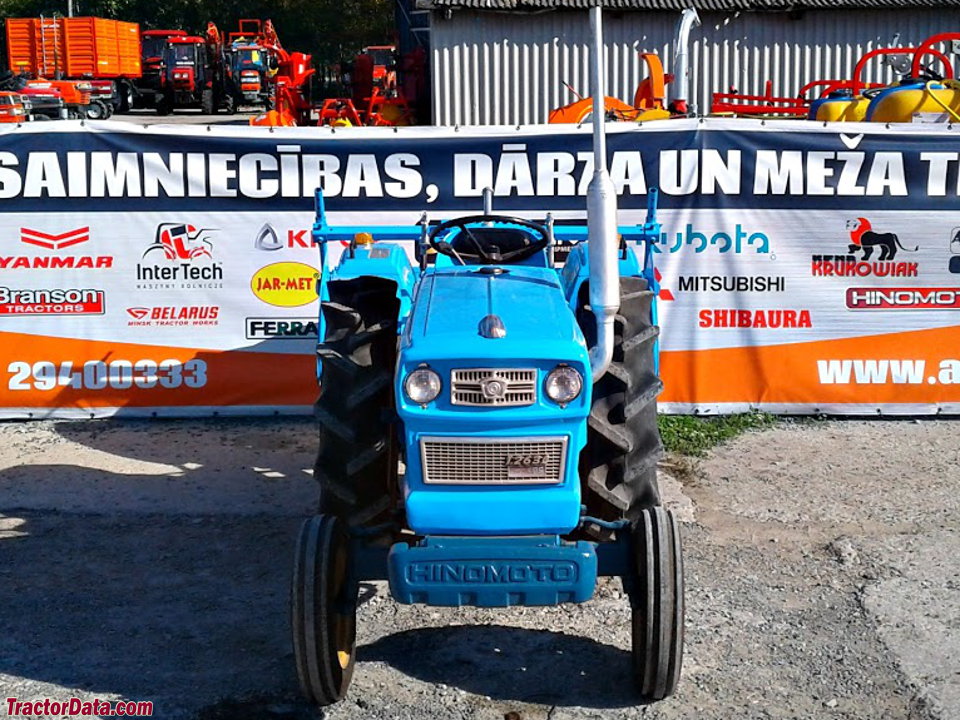

Hinomoto E23
Hinomoto E23 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
928 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
The Hinomoto E23 is similar to the Allis 5020, the Simplicity 9523, and the Massey-Ferguson 210.Reference
Two-wheel driveReference
Engine
Toyosha 1.3L 2-cyl dieselReference
Engine17.2 kWReference
Toyosha P126Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke92 x 95 mmReference
Power17.2 kWReference
Transmission
12-speedReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type547/875/1000Reference
Dimensions
Weight928 kgReference
Length256 cmReference
Width121 cmReference
Height132 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
