Tractor · 1982Unverified

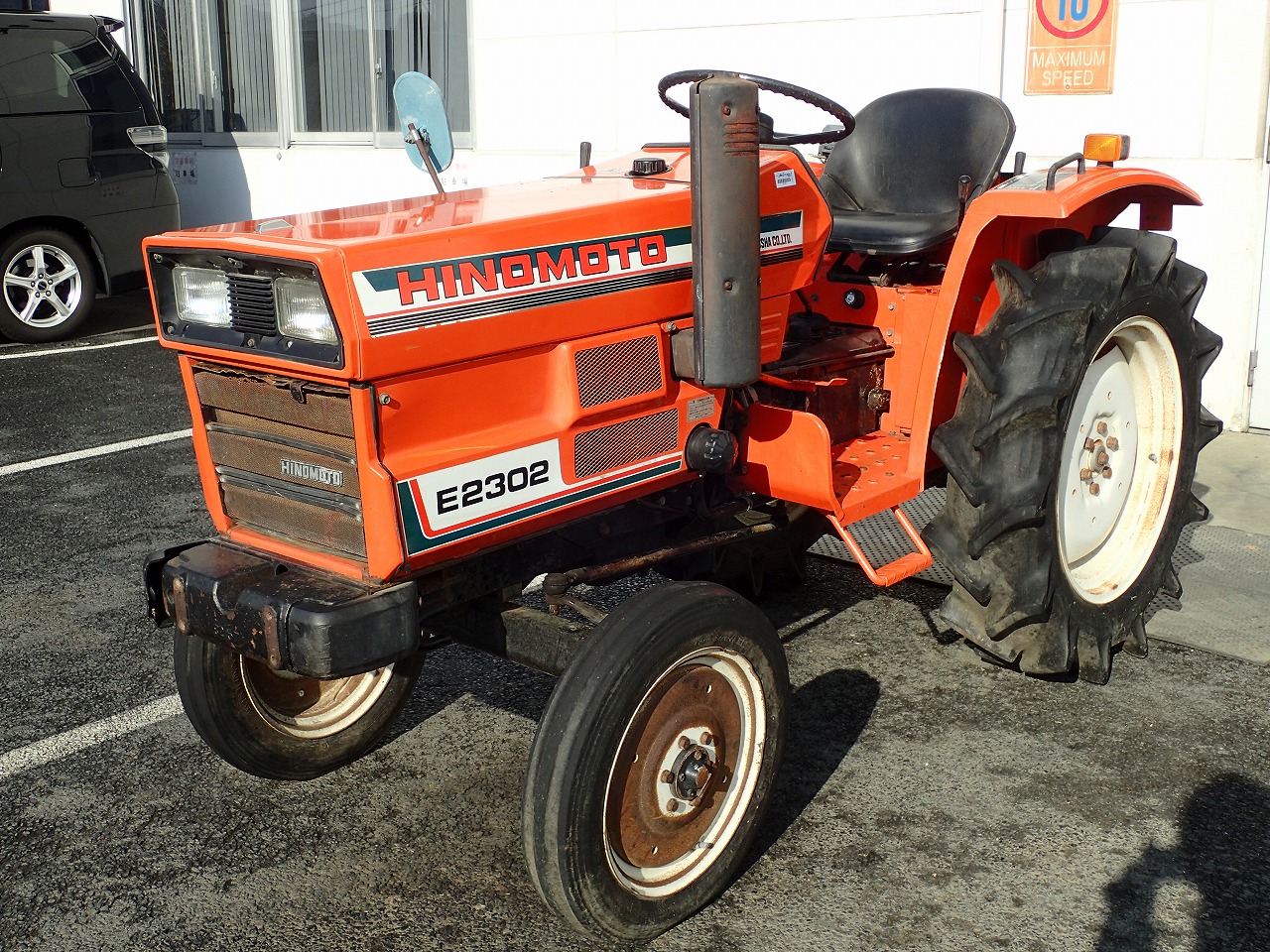

Hinomoto E2302
Hinomoto E2302 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
931 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Two-wheel driveReference
Variants
E32022WDReference
E23044WDReference
5220similar Deutz-Allis modelReference
Engine
Toyosha 1.4L 3-cyl dieselReference
Engine16.9 kWReference
Toyosha MS142Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 90 mmReference
Power16.9 kWReference
Compression23:1Reference
Rated RPM2500Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Dimensions
Weight931 kgReference
Length254 cmReference
Width121 cmReference
Height187 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
