Tractor · 1982Unverified

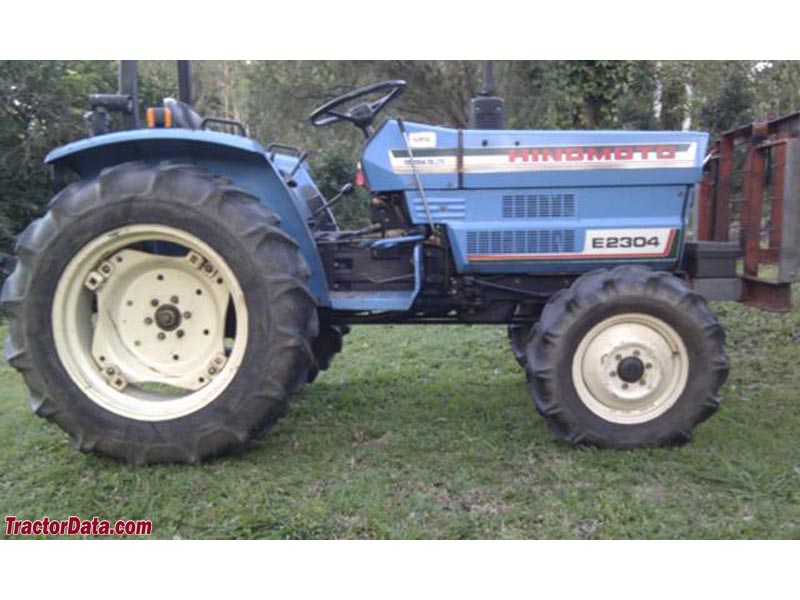

Hinomoto E2304
Hinomoto E2304 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1021 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Four-wheel driveReference
Drum brakesReference
Variants
E32022WDReference
E23044WDReference
5220similar Deutz-Allis modelReference
Engine
Toyosha 1.4L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine16.9 kWReference
Toyosha MS142Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 90 mmReference
Power16.9 kWReference
Compression23:1Reference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity3.5 LReference
Coolant capacity4.3 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Oil capacity22.1 LReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540Reference
Dimensions
Weight1021 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Ag front7-14Reference
Ag rear11.2-24Reference
Length254 cmReference
Width121 cmReference
Height187 cmReference
Ground clearance30 cmReference
Electrical
GroundnegativeReference
Charging amps35Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
