Tractor · 1977Unverified

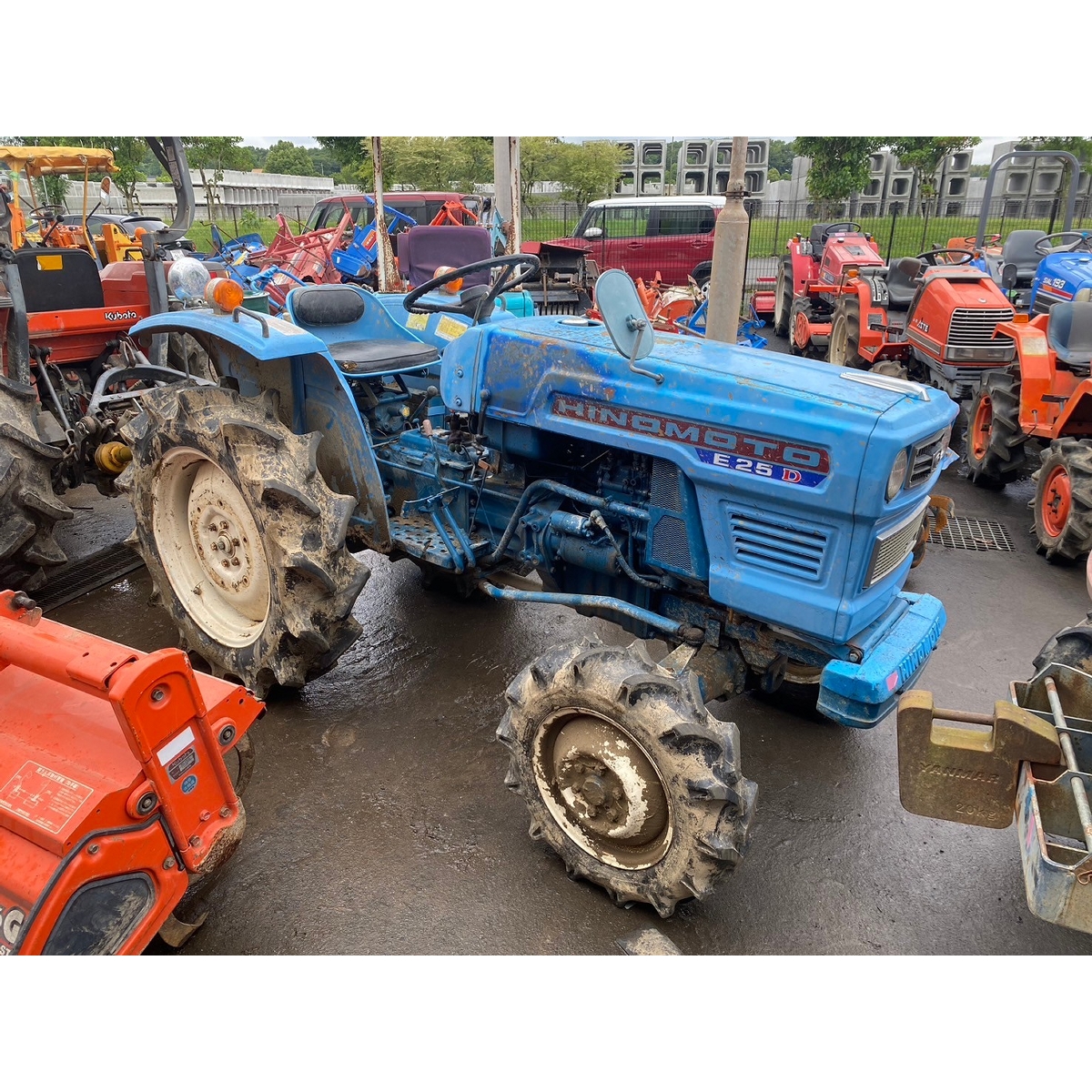

Hinomoto E25
Hinomoto E25 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
860 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
E25D4WDReference
Engine
Toyosha 1.3L 2-cyl dieselReference
Engine18.6 kWReference
ToyoshaReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke95 x 95 mmReference
Power18.6 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM580@2500Reference
Engine RPM817@2500Reference
Engine RPM1420@2500Reference
Dimensions
Wheelbase150 cmReference
Weight860 kgReference
Front tire4.00-15Reference
Rear tire9.5/9-24Reference
Ag front4.00-15Reference
Ag rear9.5/9-24Reference
Length256 cmReference
Width122 cmReference
Height (steering wheel)133 cmReference
Height (exhaust)193 cmReference
2WD Weight860 kgReference
Ground clearance34 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
