Tractor · 1982Unverified

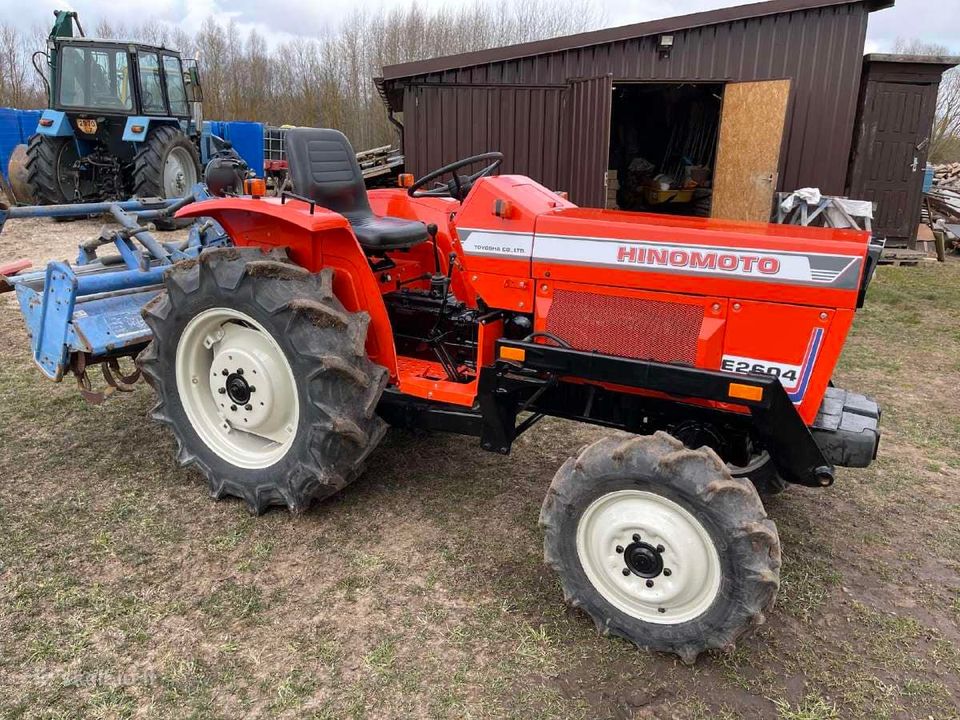

Hinomoto E2604
Hinomoto E2604 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1430 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Four-wheel driveReference
Open operator station.Reference
Variants
E26022WDReference
E26044WDReference
Engine
Toyosha 1.4L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine19.4 kWReference
Toyosha 3S139Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Power19.4 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
20-speedReference
Gears20 forward and 5 reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM580@2500Reference
Engine RPM817@2500Reference
Engine RPM1063@2500Reference
Engine RPM1419@2500Reference
Dimensions
Wheelbase169 cmReference
Weight1430 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Ag front7-16Reference
Ag rear12.4-24Reference
Length305 cmReference
Width144 cmReference
Height194 cmReference
Ground clearance35 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
