Tractor · 1982Unverified

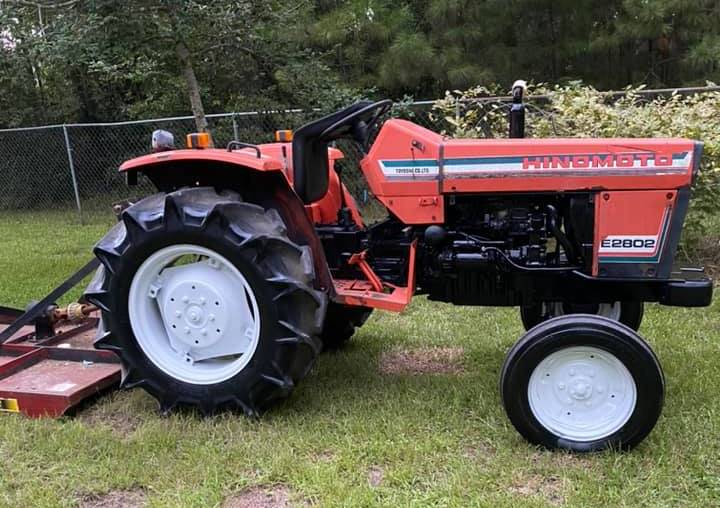

Hinomoto E2802
Hinomoto E2802 — Compact Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1249 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
E28022WDReference
E28044WDReference
Engine
Toyosha 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)26.1 kWReference
Toyosha 3S150Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke86 x 86 mmReference
Power (gross)26.1 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.0 LReference
Coolant capacity7.0 LReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Oil capacity28.0 LReference
PTO & Hydraulics
Typeopen centerReference
Rear TypeIReference
Rear PTOtransmissionReference
Clutchoverrunning dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM604@2600Reference
Engine RPM1015@2600Reference
Dimensions
Wheelbase170 cmReference
Weight1249 kgReference
Front tire5.00-15Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 5.00-15. Rear: 12.4-24Reference
Length282 cmReference
Width140 cmReference
Height (steering wheel)147 cmReference
Height (exhaust)193 cmReference
Clearance (front axle)36 cmReference
Front tread114 to 146 cmReference
Rear tread109 to 164 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Speeds
With 12.4-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
