Tractor · 1982Unverified

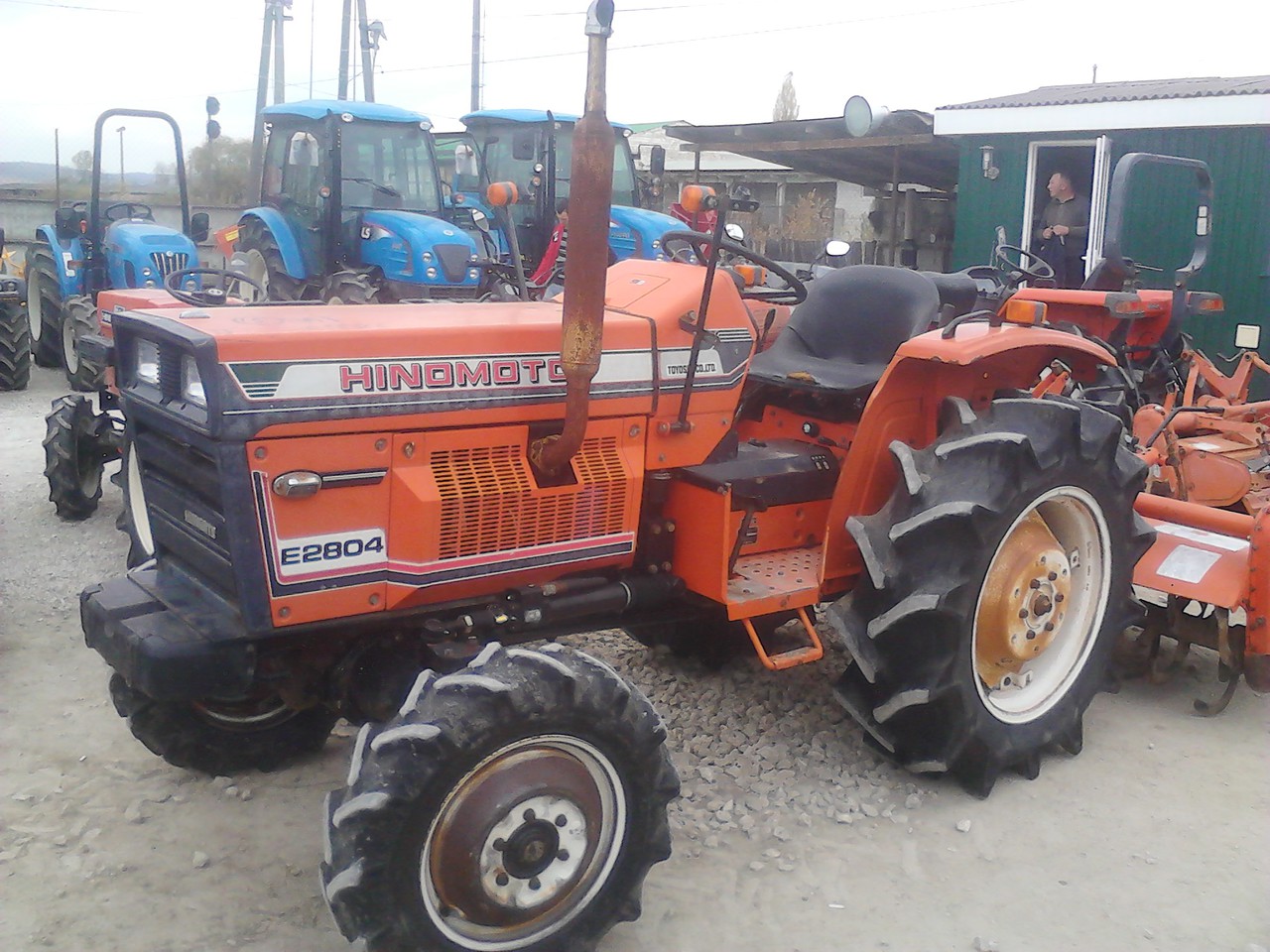

Hinomoto E2804
Hinomoto E2804 — Compact Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1410 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Drive4x4 MFWD 2WDReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
E28022WDReference
E28044WDReference
Engine
Toyosha 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)26.1 kWReference
Toyosha 3S150Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke86 x 86 mmReference
Power (gross)26.1 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.0 LReference
Coolant capacity7.0 LReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Oil capacity28.0 LReference
PTO & Hydraulics
Typeopen centerReference
Rear TypeIReference
Rear PTOtransmissionReference
Clutchoverrunning dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM604@2600Reference
Engine RPM1015@2600Reference
Dimensions
Wheelbase169 cmReference
Weight1410 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Length282 cmReference
Width145 cmReference
Height (steering wheel)149 cmReference
Height (exhaust)194 cmReference
Clearance (front axle)36 cmReference
Front tread119 cmReference
Rear tread109 to 164 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Speeds
With 12.4-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
