Tractor · 1979Unverified

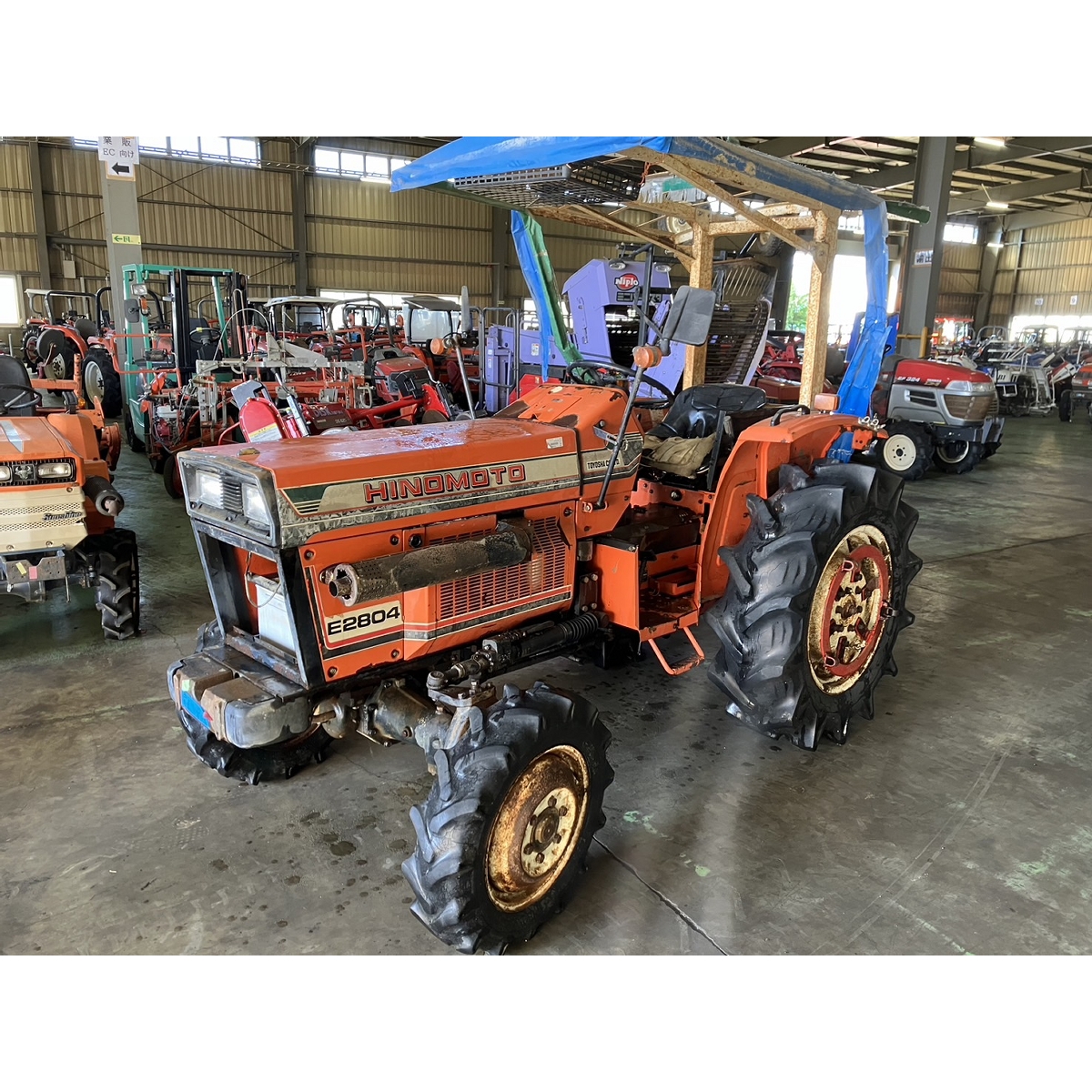

Hinomoto Hombre E280
Hinomoto Hombre E280 — E100 Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1012 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Open operator station.Reference
Variants
5030similar Allis Chalmers modelReference
9528similar Simplicity modelReference
Engine
Toyosha 1.5L 2-cyl dieselReference
Fuel tank26.9 LReference
Engine20.6 kWReference
Toyosha S-148Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke97 x 100 mmReference
Power20.6 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.0 LReference
Coolant capacity6.2 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 3 reverseReference
Oil capacity20.8 LReference
Four gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure117.2 barReference
Pump flow20.6 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at ends)723 kgReference
Rear PTOtransmssionReference
Rear PTO Type540 (1.375)Reference
Front PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase156 cmReference
Weight1012 kgReference
Front tire5.00-15Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 5.00-15. Rear: 12.4-24Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear13.6-16Reference
Length267 cmReference
Width136 cmReference
Height (steering wheel)136 cmReference
Height (exhaust)196 cmReference
Clearance (front axle)37 cmReference
Clearance (drawbar)37 cmReference
Flange rear axleReference
Front tread103 to 127 cmReference
Rear tread104 to 159 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
