Tractor · 1979Unverified

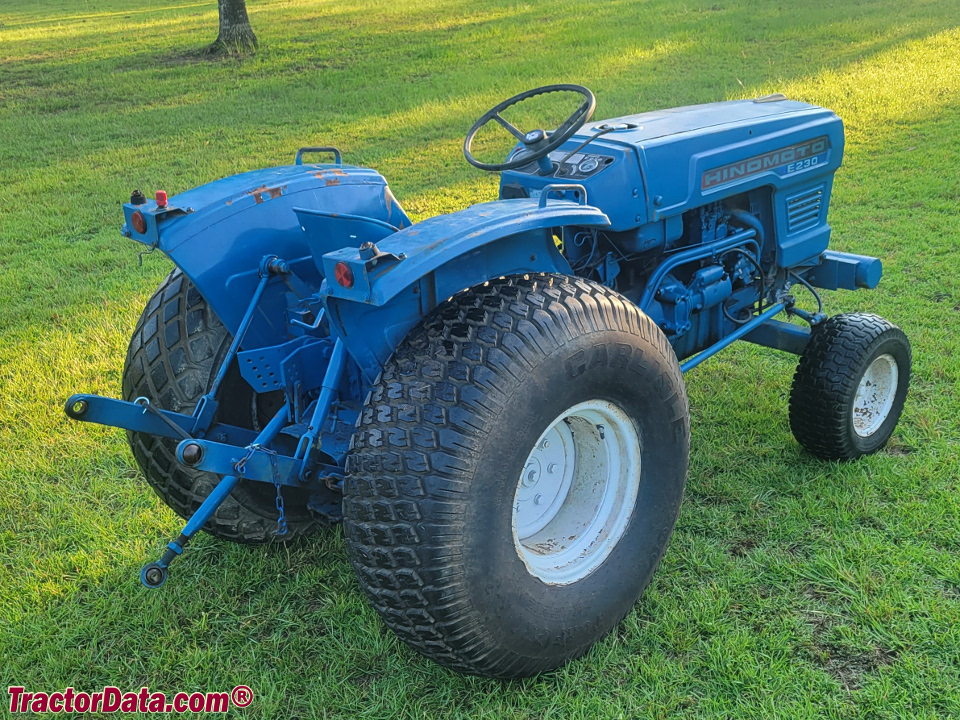

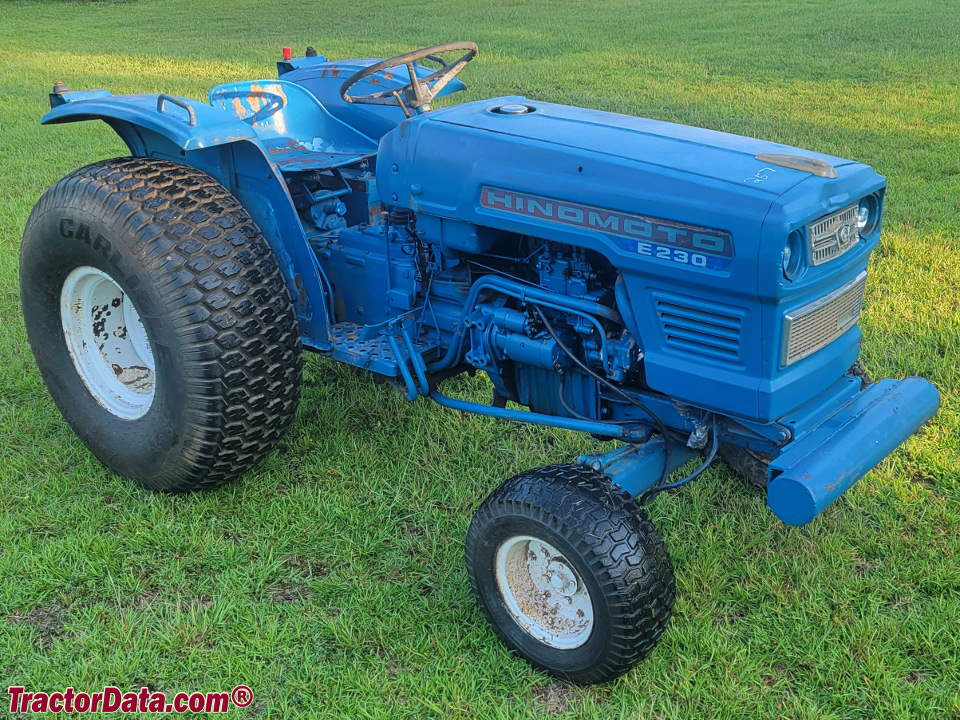

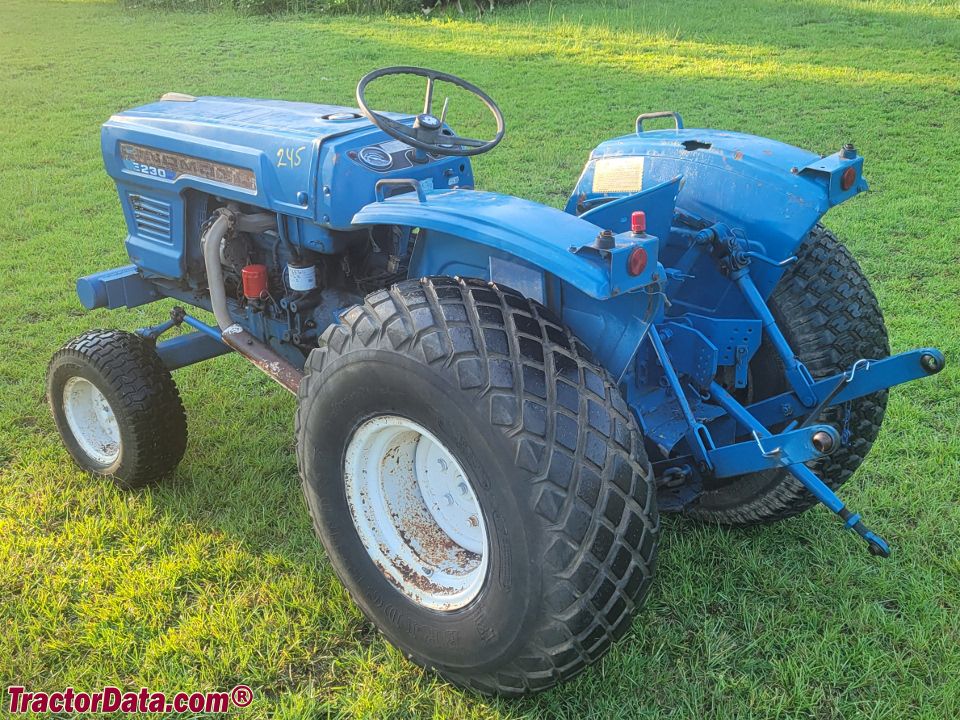

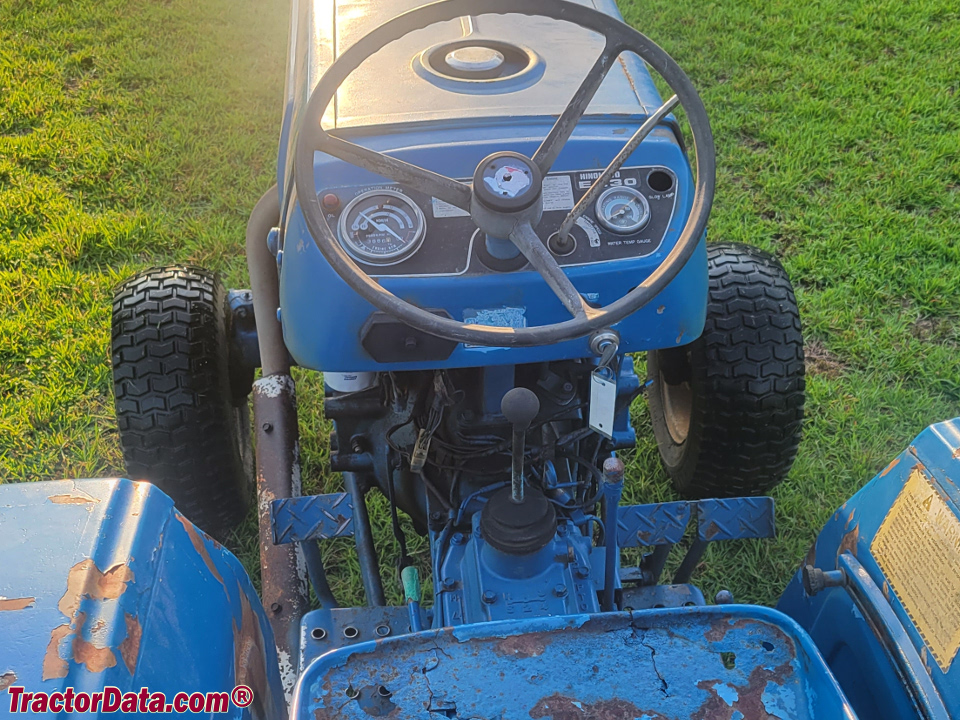

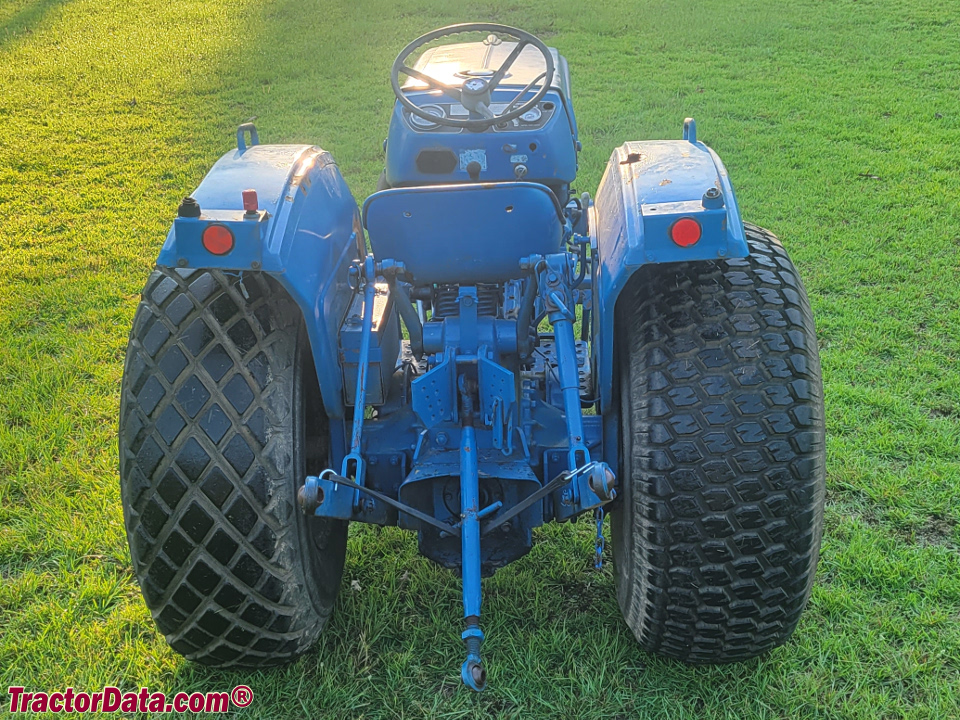

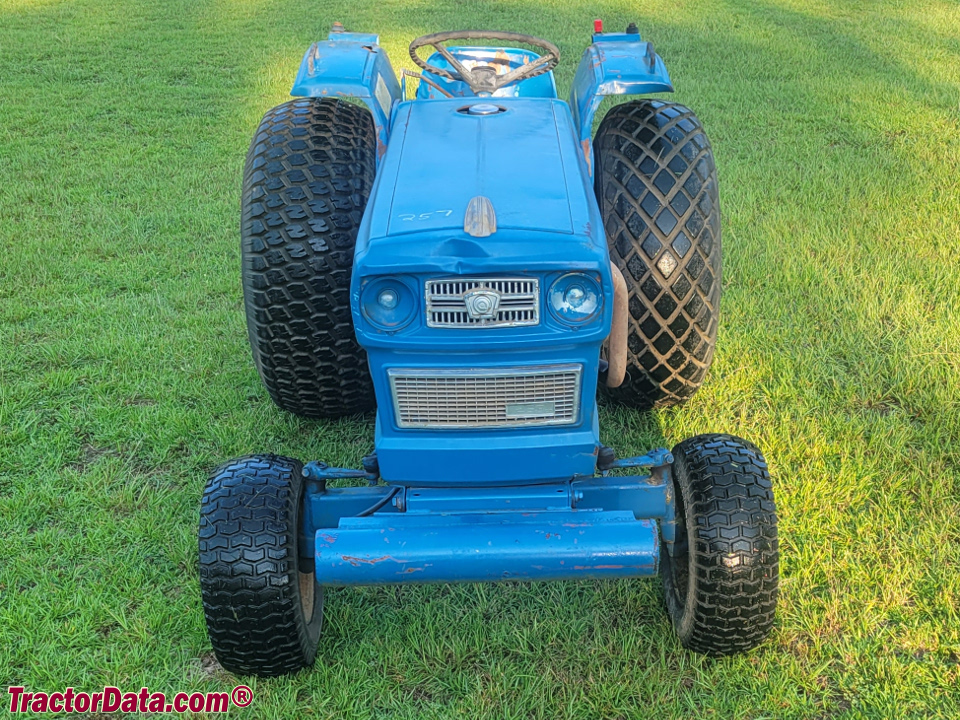

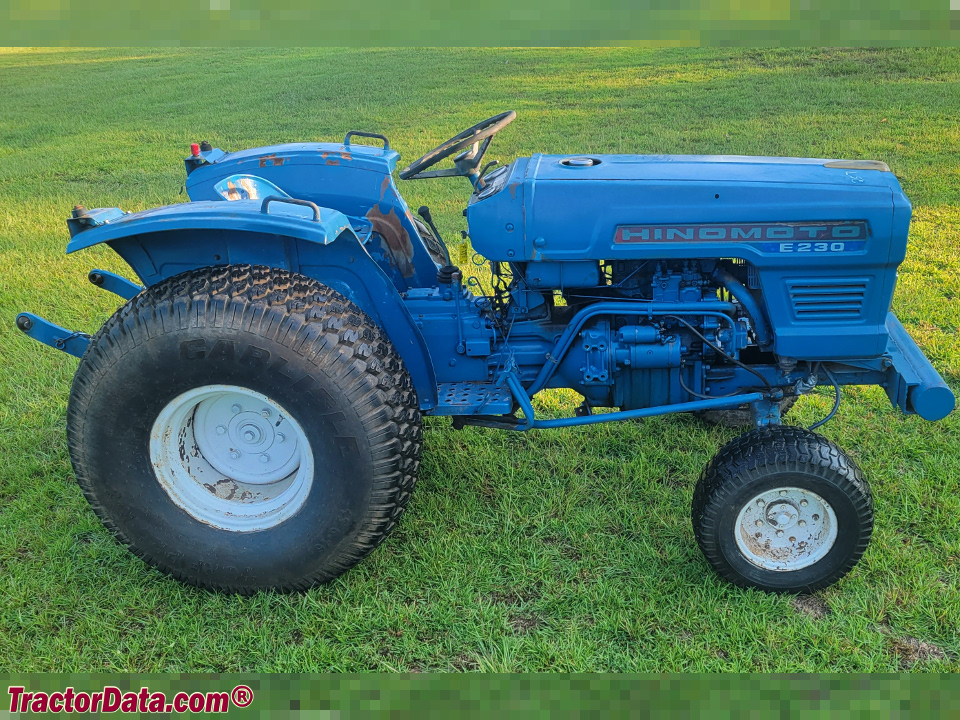

Hinomoto Hotshot E230
Hinomoto Hotshot E230 — E100 Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
847 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
5020similar Allis Chalmers modelReference
9523similar Simplicity modelReference
Engine
Toyosha 1.3L 2-cyl dieselReference
Fuel tank26.9 LReference
Engine16.9 kWReference
Toyosha P-126Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke92 x 95 mmReference
Power16.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.0 LReference
Coolant capacity6.2 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 3 reverseReference
Oil capacity20.8 LReference
Four gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure117.2 barReference
Pump flow20.6 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)665 kgReference
Rear PTOtransmssionReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase152 cmReference
Weight847 kgReference
Front tire4.00-15Reference
Rear tire11.2/10-24Reference
Standard tires (ag)Front: 4.00-15. Rear: 11.2/10-24Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear13.6-16Reference
Length274 cmReference
Width127 cmReference
Height (steering wheel)134 cmReference
Height (exhaust)195 cmReference
Flange rear axleReference
Front tread94 cmReference
Rear tread99 to 129 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
