Tractor · 1984Unverified

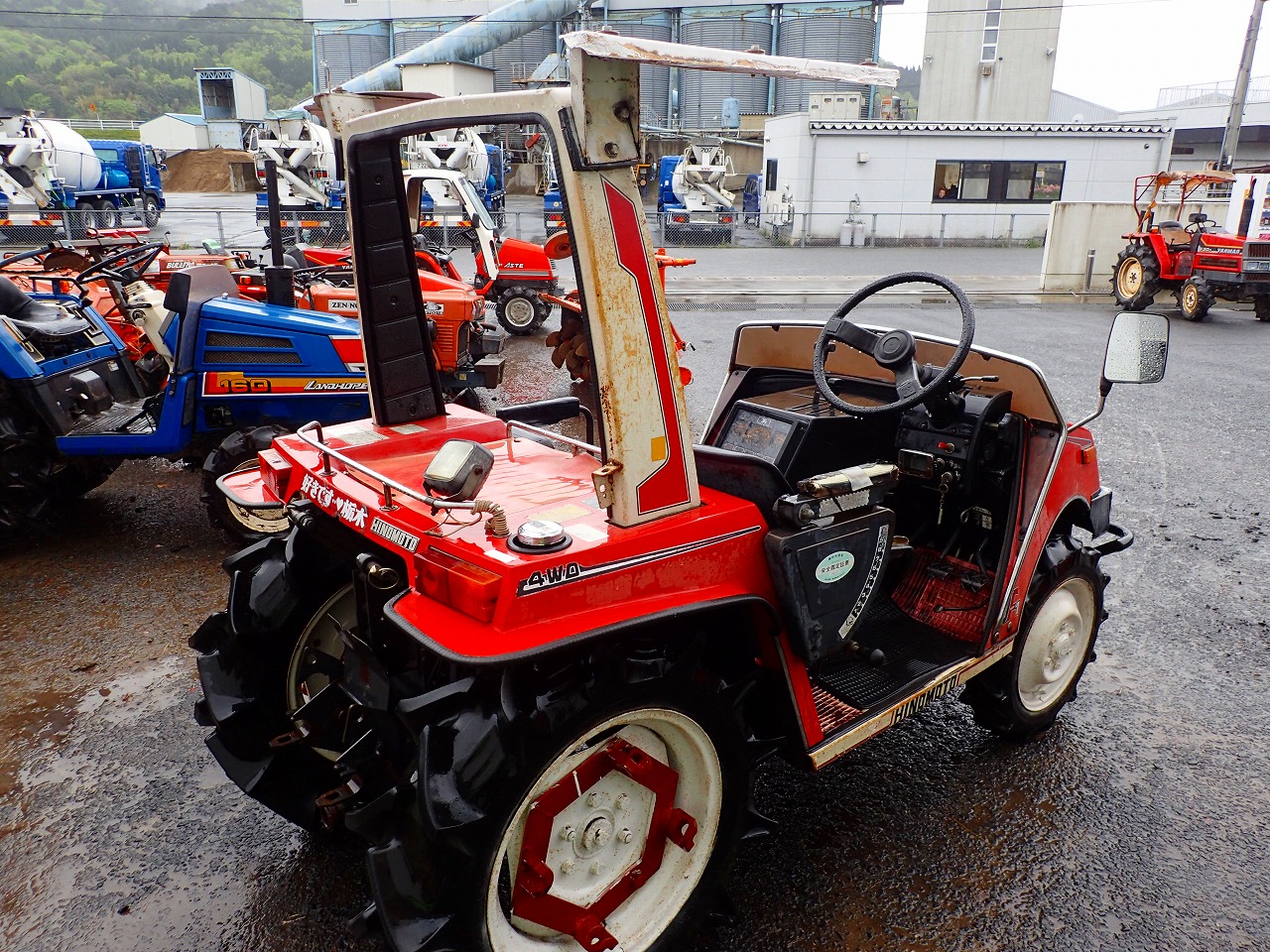

Hinomoto JF1
Hinomoto JF1 · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
845 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Built in JapanReference
Four-wheel driveReference
Dry shoe brakesReference
Engine
Toyosha 1.0L 3-cyl dieselReference
Engine (gross)14.9 kWReference
Toyosha CS100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke73 x 80 mmReference
Power (gross)14.9 kWReference
Rated RPM2600Reference
Starter volts12Reference
Coolant capacity4.4 LReference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
Oil capacity17.0 LReference
Capacities
Fuel17.8 LReference
PTO & Hydraulics
Hydraulic system17.0 LReference
Capacity17.0 LReference
Pressure171.7 barReference
Rear PTO Type593, 867Reference
Dimensions
Weight845 kgReference
Front tire5-14Reference
Rear tire8-18Reference
Ag front5-14Reference
Ag rear8-18Reference
Lawn/turf front20.5x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length277 cmReference
Width123 cmReference
Height (steering wheel)137 cmReference
Height (ROPS)187 cmReference
Ground clearance26 cmReference
Electrical
Charging systemHitachi LR135-588 alternatorReference
Charging amps35Reference
Battery CCA433Reference
Battery volts1Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
