Tractor · Unverified

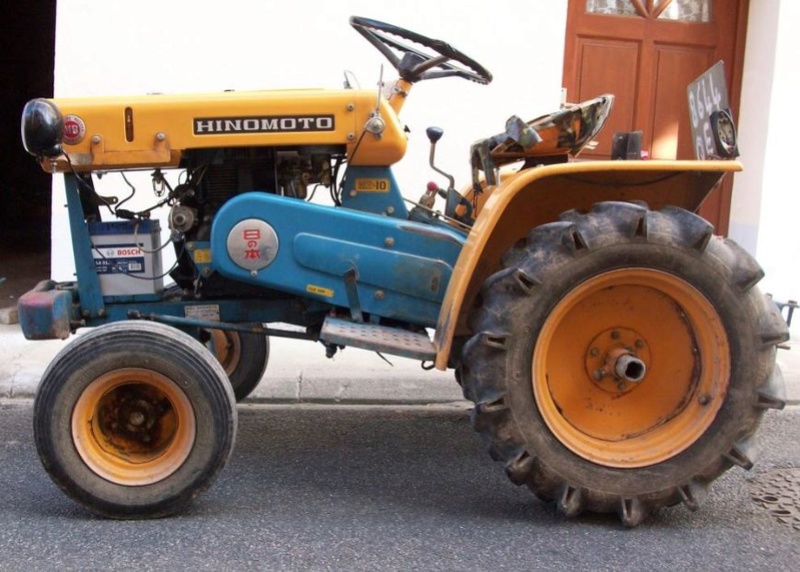

Hinomoto MB-10
Hinomoto MB-10 — Compact Utility tractor · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Two-wheel driveReference
Open operator station.Reference
Engine
Aichi 0.4L 1-cyl keroseneReference
Engine (gross)7.5 kWReference
Aichi TE-80HReference
keroseneReference
1-cylinderReference
air-cooledReference
Displacement0.4 LReference
Bore/Stroke80 x 75 mmReference
Power (gross)7.5 kWReference
Starter typeelectricReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Dimensions
Wheelbase109 cmReference
Length178 cmReference
Height (steering wheel)113 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
