Tractor · Unverified

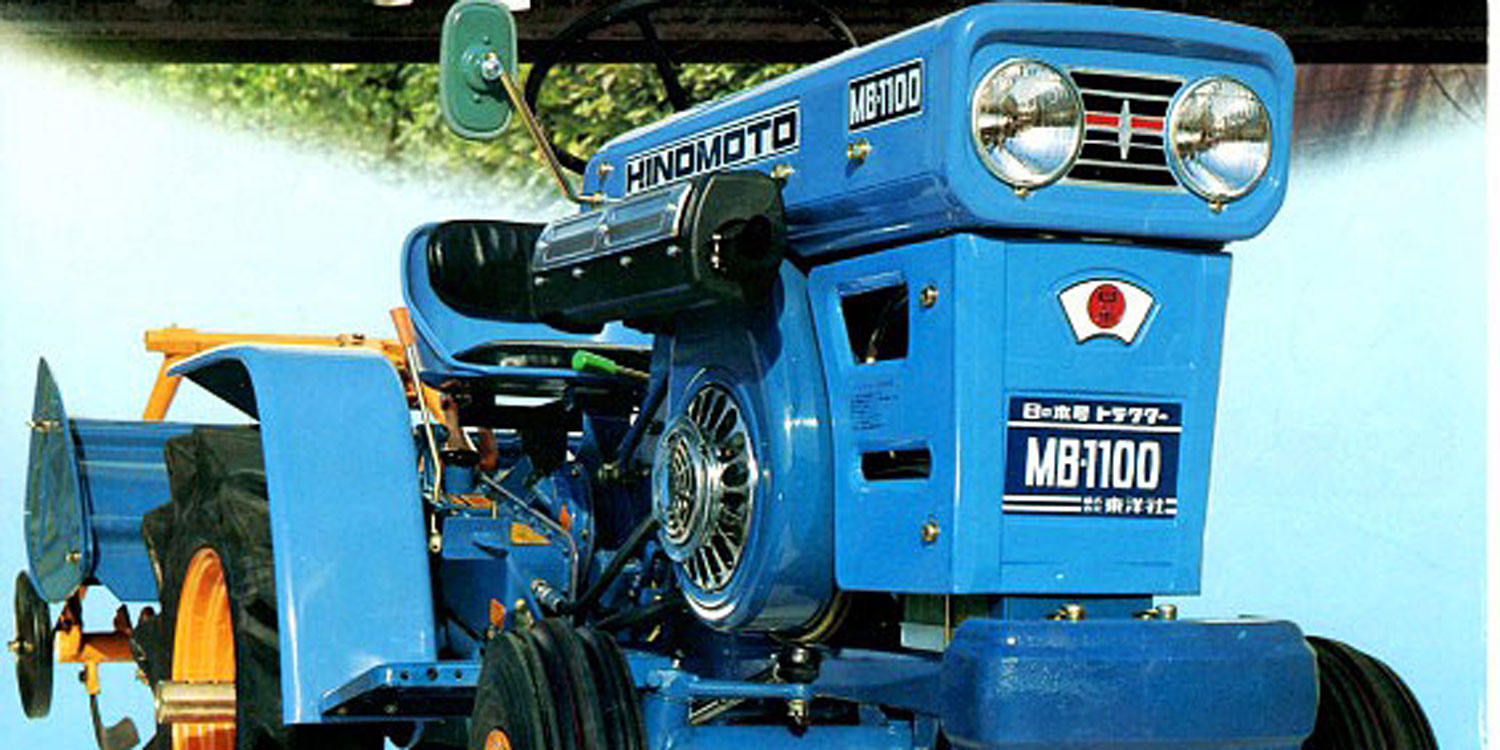

Hinomoto MB-1100
Hinomoto MB-1100 — Compact Utility tractor · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
410 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Toyosha 0.7L 1-cyl gasolineReference
Engine (gross)9.7 kWReference
Toyosha TE-110Reference
gasolineReference
1-cylinderReference
air-cooledReference
Displacement0.7 LReference
Power (gross)9.7 kWReference
Rated RPM3000Reference
Starter typeelectricReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)8.1 kWReference
Typeopen centerReference
Rear lift400 kgReference
Dimensions
Wheelbase109 cmReference
Weight410 kgReference
Front tire4.00-9Reference
Rear tire7-14Reference
Ag front4.00-9Reference
Ag rear7-14Reference
Length184 cmReference
Width94 cmReference
Height (steering wheel)117 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
