Tractor · 1968Unverified

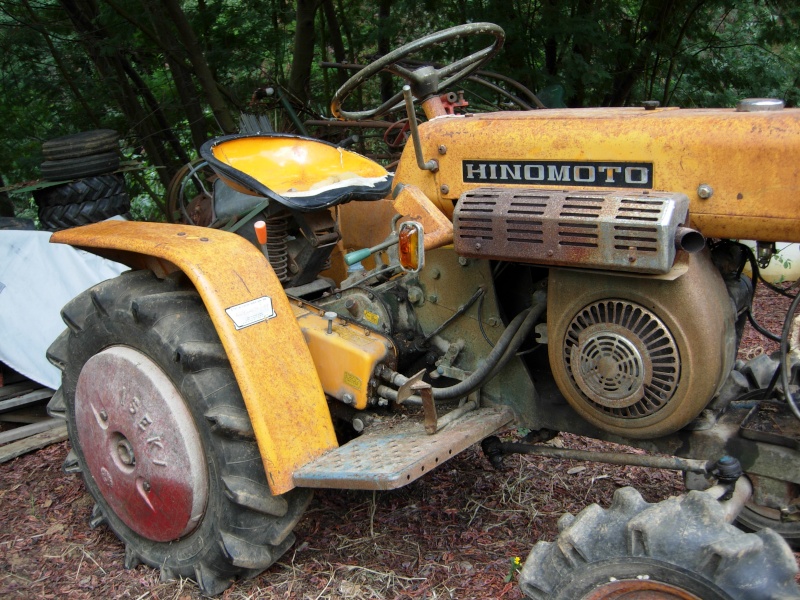

Hinomoto MB-140
Hinomoto MB-140 — Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
542 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Toyosha 0.6L 1-cyl gasolineReference
Fuel tank40.1 LReference
Engine (gross)10.4 kWReference
Toyosha TE-140Reference
gasolineReference
1-cylinderReference
air-cooledReference
Displacement0.6 LReference
Bore/Stroke92 x 87 mmReference
Power (gross)10.4 kWReference
Rated RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchmechanical dry discReference
PTO & Hydraulics
Rear lift400 kgReference
Dimensions
Wheelbase109 cmReference
Weight542 kgReference
Front tire4.00-9Reference
Rear tire7-14Reference
Ag front4.00-9Reference
Ag rear7-14Reference
Length219 cmReference
Width105 cmReference
Height (steering wheel)117 cmReference
Height (exhaust)151 cmReference
Front tread74 cmReference
Rear tread80 to 150 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
