Tractor · 1993Unverified

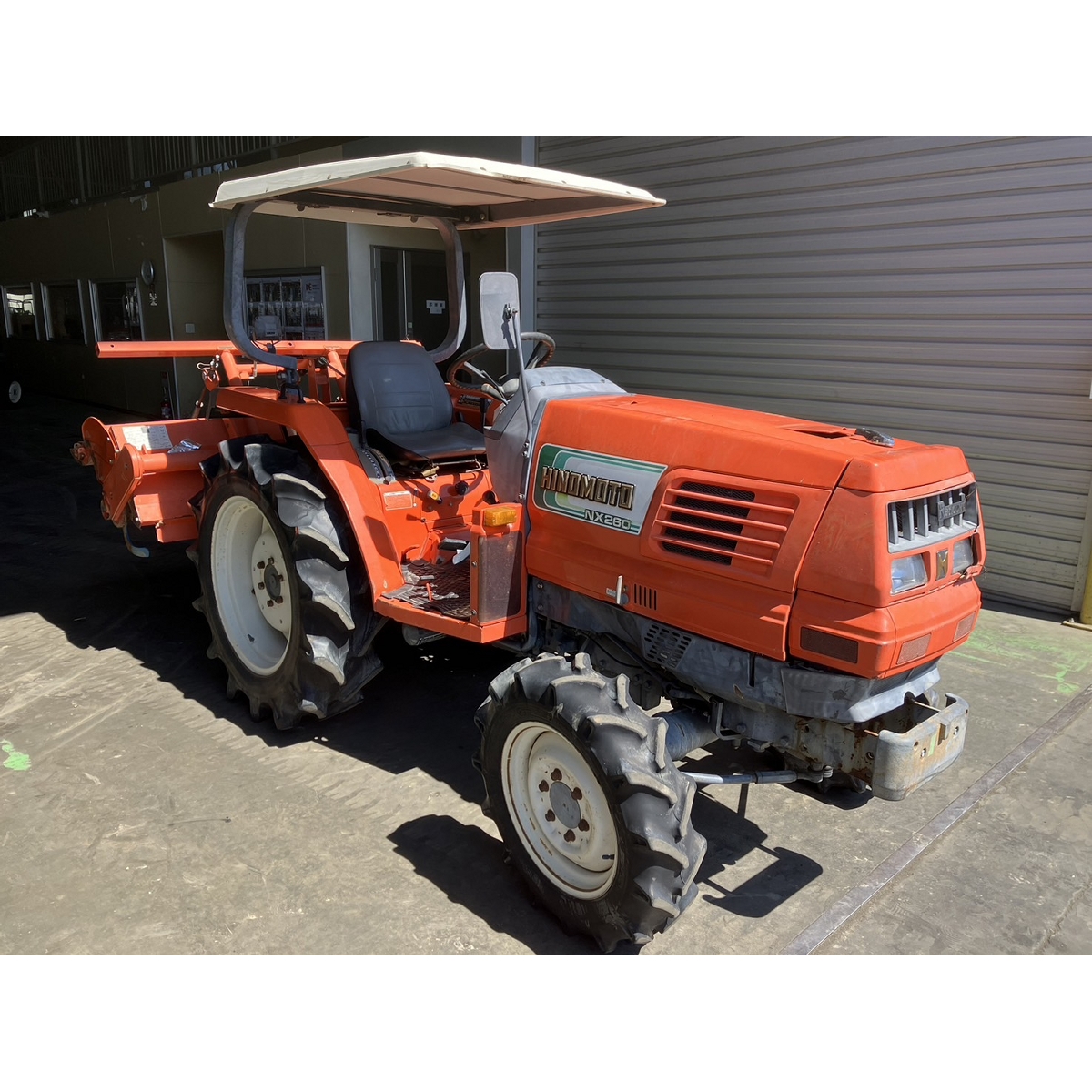

Hinomoto NX260
Hinomoto NX260 — NX Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
2601 to 2888 pounds
Hover a source tag to verify
Overview
DistributorHinomotoReference
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine19.1 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power19.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference
Typepower shiftReference
PTO & Hydraulics
PTO (claimed)17.9 kWReference
Pump flow21.2 lpmReference
Rear TypeIReference
Rear lift934 kgReference
Rear PTO Type568/803/985/1304 (1.375)Reference
Dimensions
Wheelbase164 cmReference
Weight2601 to 2888 poundsReference
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length305 cmReference
Width135 cmReference
Height (ROPS)195 cmReference
Height (cab)199 cmReference
ROPS Weight1179 kgReference
Cab Weight1309 kgReference
Ground clearance34 cmReference
Front tread107 cmReference
Rear tread104 to 134 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
