Tractor · 1979Unverified

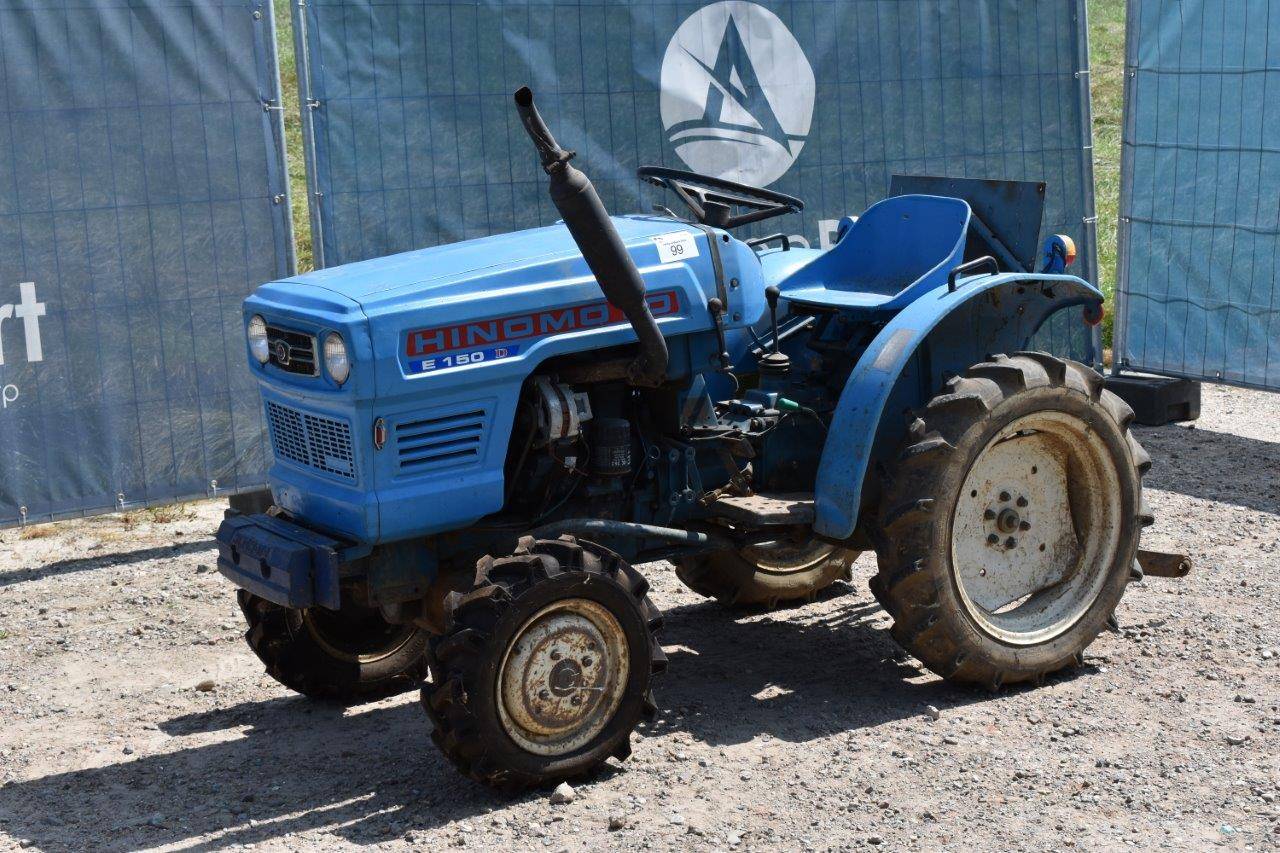

Hinomoto Plainsman E150
Hinomoto Plainsman E150 — E100 Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1360 to 1608 pounds
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Engine
Toyosha 0.9L 2-cyl dieselReference
Fuel tank20.8 LReference
Engine11.2 kWReference
Toyosha S-88Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke84 x 80 mmReference
Power11.2 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.2 LReference
Coolant capacity4.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
2WD Oil capacity15.0 LReference
4WD Oil capacity16.0 LReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow19.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift467 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase127 cmReference
4WD Wheelbase130 cmReference
Weight1360 to 1608 poundsReference
Front tire4.00-12Reference
2WD Rear tire7-20Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 7-20Reference
4WD Standard tires (ag)Front: 5-12. Rear: 7-20Reference
2WD Length249 cmReference
4WD Length238 cmReference
2WD Width101 cmReference
4WD Width99 cmReference
2WD Weight616 kgReference
4WD Weight729 kgReference
2WD Clearance (front axle)33 cmReference
4WD Clearance (front axle)23 cmReference
2WD Clearance (drawbar)28 cmReference
4WD Clearance (drawbar)27 cmReference
2WD Front tread76 cmReference
4WD Front tread80 cmReference
Rear tread82 to 89 cmReference
2WD Steering wheel123 cmReference
4WD Steering wheel125 cmReference
E150 Serial Numbers
Location:Serial number plate on top of the transmission, in front of the gear shift lever.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Hinomoto E150 Height
2WD Exhaust177 cmReference
4WD Exhaust179 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
