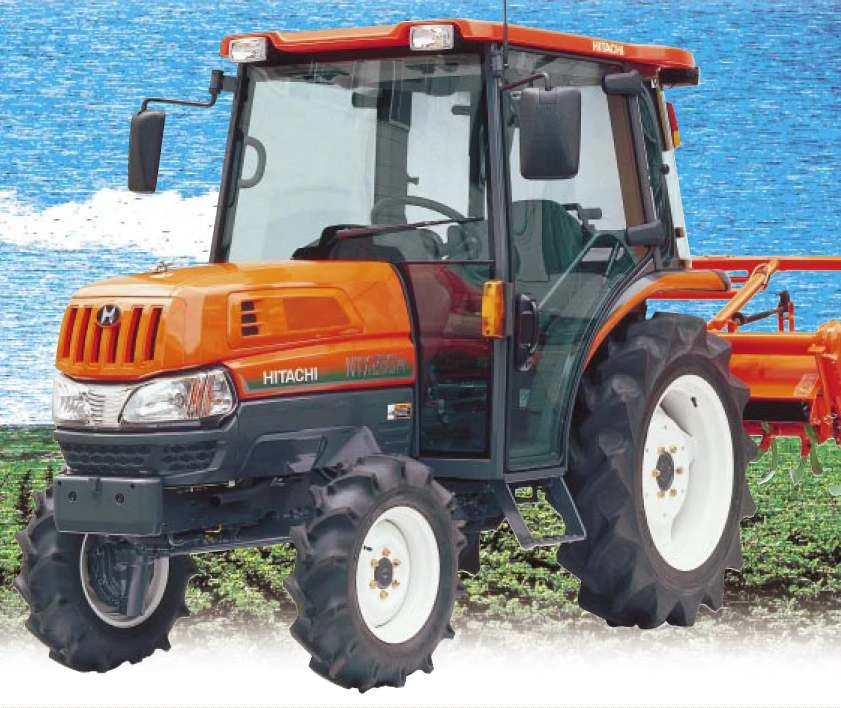

The Hitachi NTX270 is a tractor with a rated output of 27 hp — making it one of the more compact options in its class. Under the hood is a diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 1460 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
1460 kg
Catalogue coverage
Variants represented
2
Richest spec table
24 rows
Recorded power
27 hp
Recorded weight
1460 kg
Transmissions
16-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHitachiReference
Built in JapanReference
Drive4WDReference
Variants
NTX270HhydrostaticReference
Engine
1.5L dieselReference
Fuel tank34.8 LReference
Engine19.8 kWReference
dieselReference
liquid-cooledReference
Displacement1.5 LReference
Power19.8 kWReference
Rated RPM2600Reference
Transmission
16-speedReference
TransmissionhydrostaticReference
Gearsinfinite forward and reverseReference
Gears16 forward and reverseReference
Dimensions
Weight1460 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Ag front7-16Reference
Ag rear12.4-24Reference
Length313 cmReference
Height196 cmReference
Ground clearance34 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
