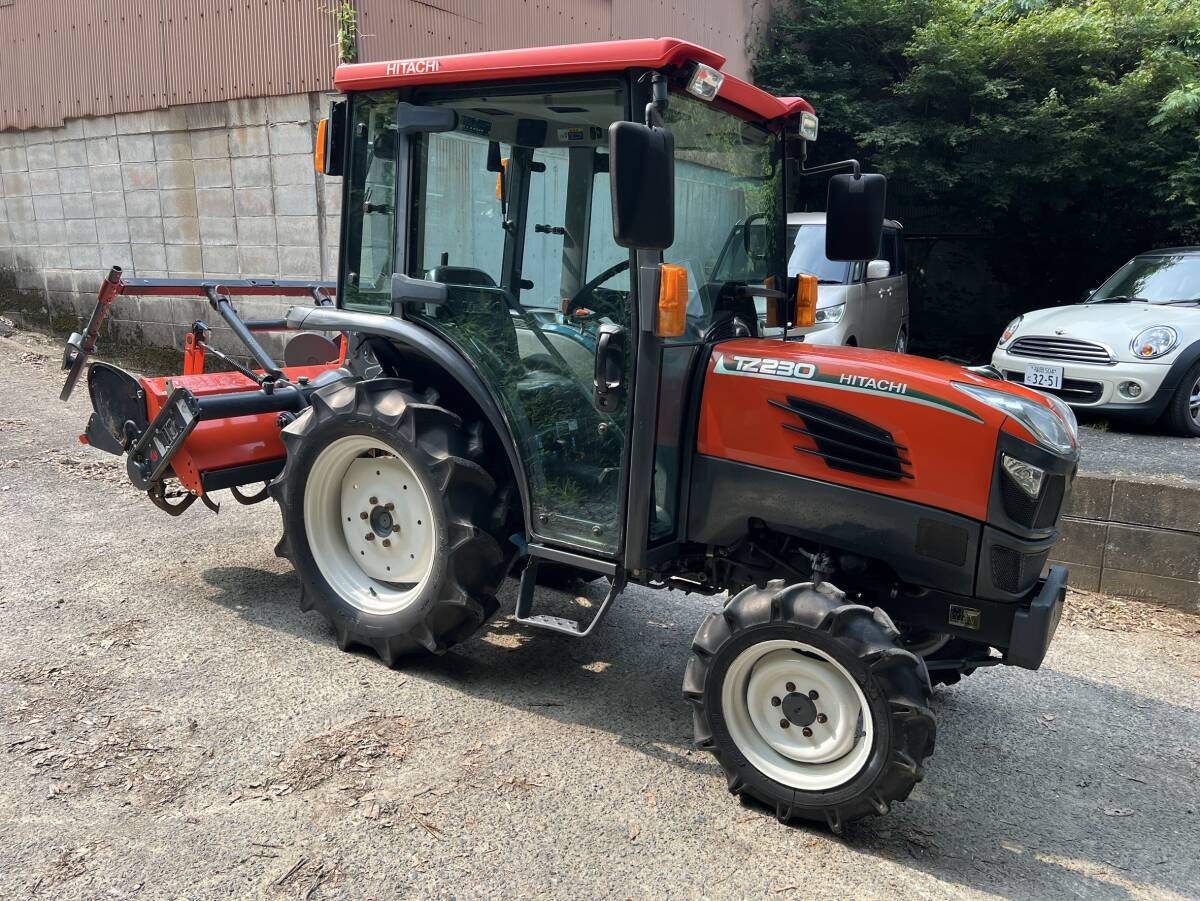

The Hitachi TZ230 is a tractor with a rated power of 23 hp, positioning it at the lighter end of its class. It features a diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The tractor has a listed operating weight of 1060 kg and is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1060 kg
Catalogue coverage
Variants represented
2
Richest spec table
22 rows
Recorded power
23 hp
Recorded weight
1060 kg
Transmissions
hydrostatic
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHitachiReference
Built in JapanReference
Drive4WDReference
Variants
TZ230HhydrostaticReference
Engine
1.5L dieselReference
Fuel tank28.0 LReference
Engine16.9 kWReference
dieselReference
liquid-cooledReference
Displacement1.5 LReference
Power16.9 kWReference
Rated RPM2500Reference
Dimensions
Weight1060 kgReference
Front tire6-14Reference
Rear tire9.5-22Reference
Ag front6-14Reference
Ag rear9.5-22Reference
Length285 cmReference
Height193 cmReference
Ground clearance32 cmReference
Transmission
TransmissionhydrostaticReference
Gearsinfinite forward and reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
