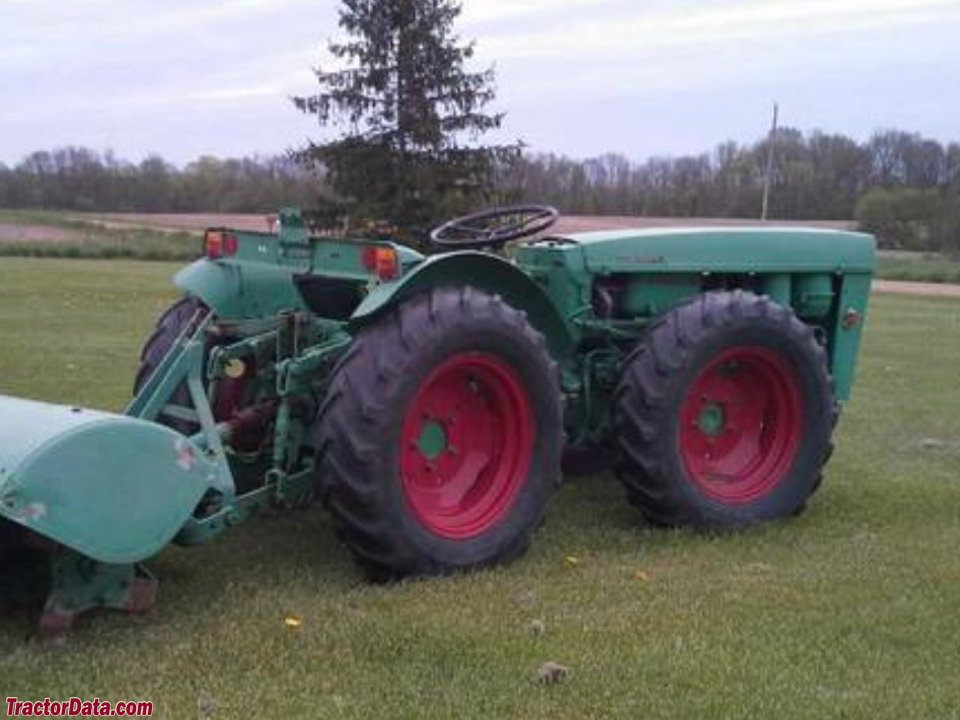

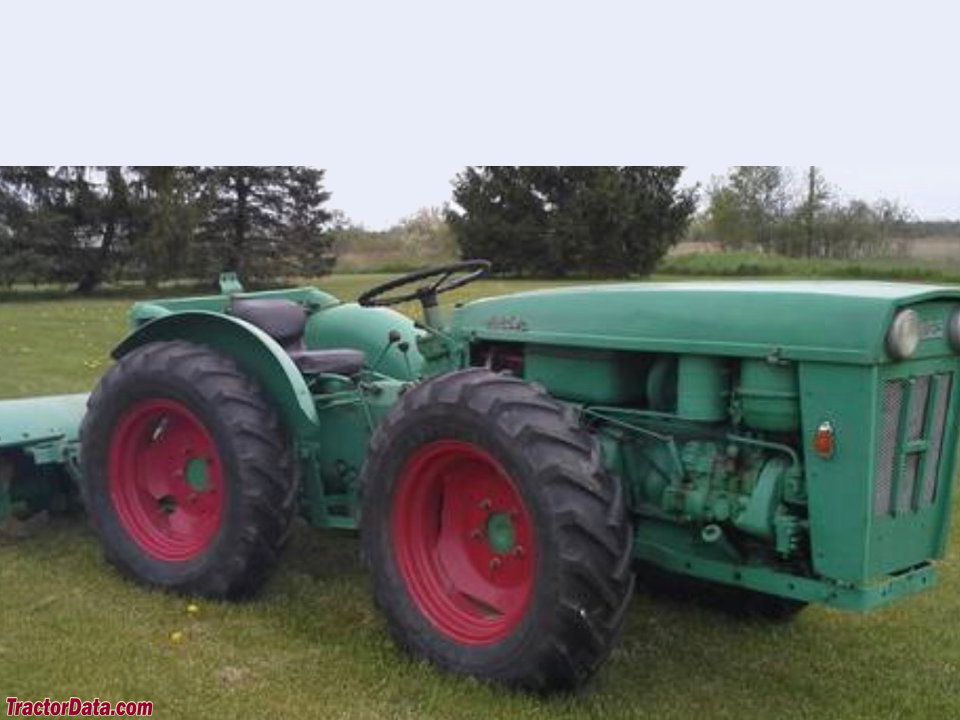

The Holder AG3 is a tractor rated at approximately 27 hp, positioning it near the lower end of its class in terms of power output. It features a 3-cylinder diesel liquid-cooled engine and four-wheel drive capabilities. The tractor's operating weight is listed at 972 kg, and it is suitable for operations covering up to 200 acres. Detailed specifications are provided in both metric and imperial units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
972 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
27 hp
Recorded weight
972 kg
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHolderReference
Four-wheel driveReference
Open operator station.Reference
Engine
Holder 1.5L 3-cyl dieselReference
Engine25.4 kWReference
Holder HD-3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 89 mmReference
Power25.4 kWReference
Compression18:1Reference
Rated RPM2300Reference
Torque83.4 NmReference
Torque RPM2100Reference
PTO & Hydraulics
PTO (claimed)19.9 kWReference
Dimensions
Wheelbase111 cmReference
Weight972 kgReference
Front tire7.50x18Reference
Rear tire7.50x18Reference
Ag front7.50x18Reference
Ag rear7.50x18Reference
Length259 cmReference
Width78 cmReference
Height (hood)106 cmReference
Ground clearance25 cmReference
Capacities
Diameter20 cmReference
Width11 cmReference
RPM1520Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
