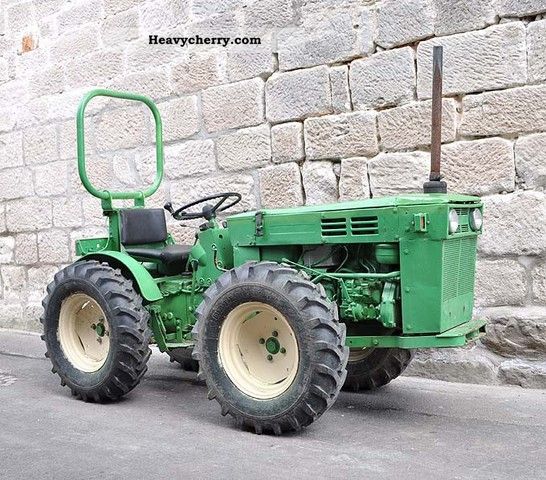

The Holder Cultitrac AM2 is a tractor model rated at 18 hp, positioning it at the lighter end of its class. Powered by a 2-cylinder diesel liquid-cooled engine, it features four-wheel drive with a 6-speed gearbox. Its listed operating weight is 798 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
798 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
18 hp
Recorded weight
798 kg
Transmissions
6-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHolderReference
Four-wheel driveReference
Disc brakesReference
Engine
Holder 1.0L 2-cyl dieselReference
Engine17.2 kWReference
Holder HD-2Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke84 x 89 mmReference
Power17.2 kWReference
Compression18:1Reference
Rated RPM2300Reference
Transmission
6-speedReference
Gears6 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)13.2 kWReference
Pressure171.6 barReference
Pump flow11.0 lpmReference
Rear Type2Reference
Rear lift1397 kgReference
Dimensions
Wheelbase111 cmReference
Weight798 kgReference
Length241 cmReference
Width76 cmReference
Height (hood)101 cmReference
Ground clearance22 cmReference
Capacities
Diameter20 cmReference
Width11 cmReference
RPM1520Reference
Speeds
6.00x16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
