Tractor · 1921Unverified

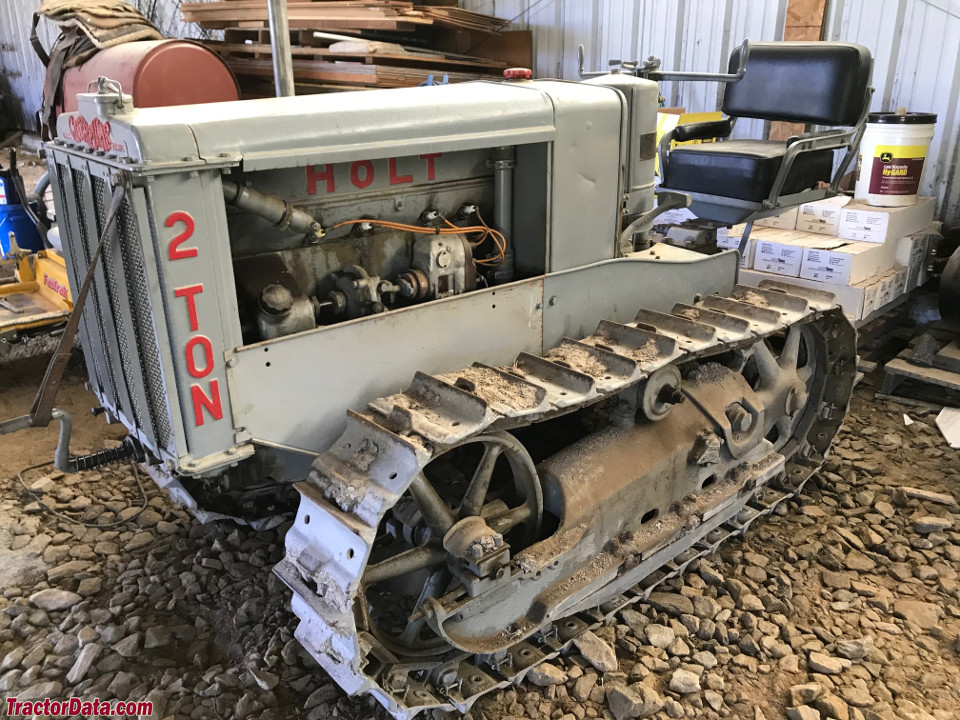

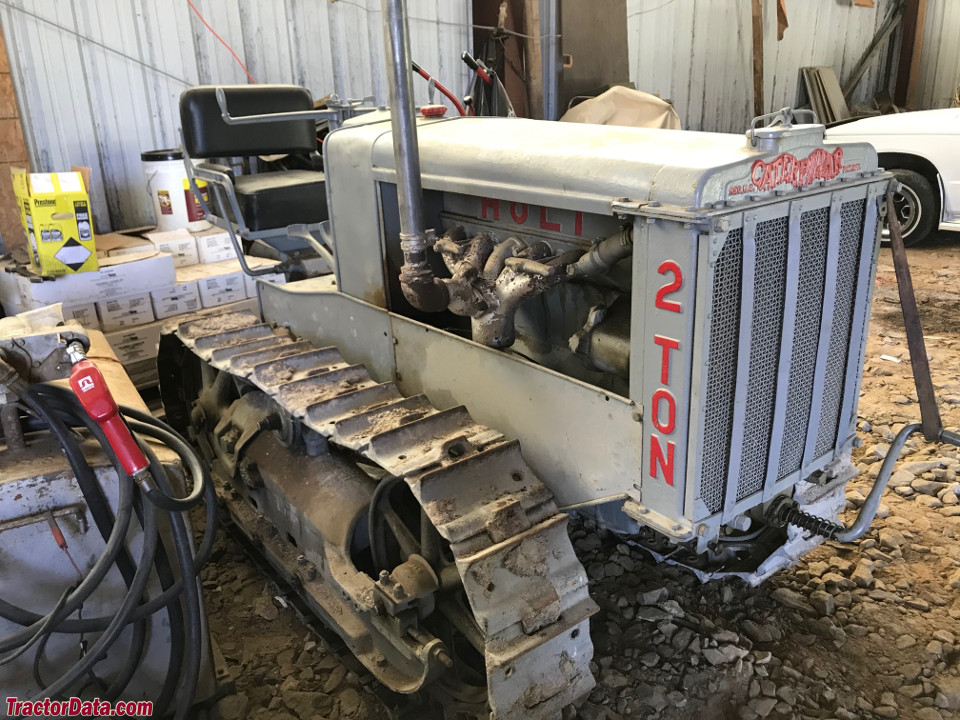

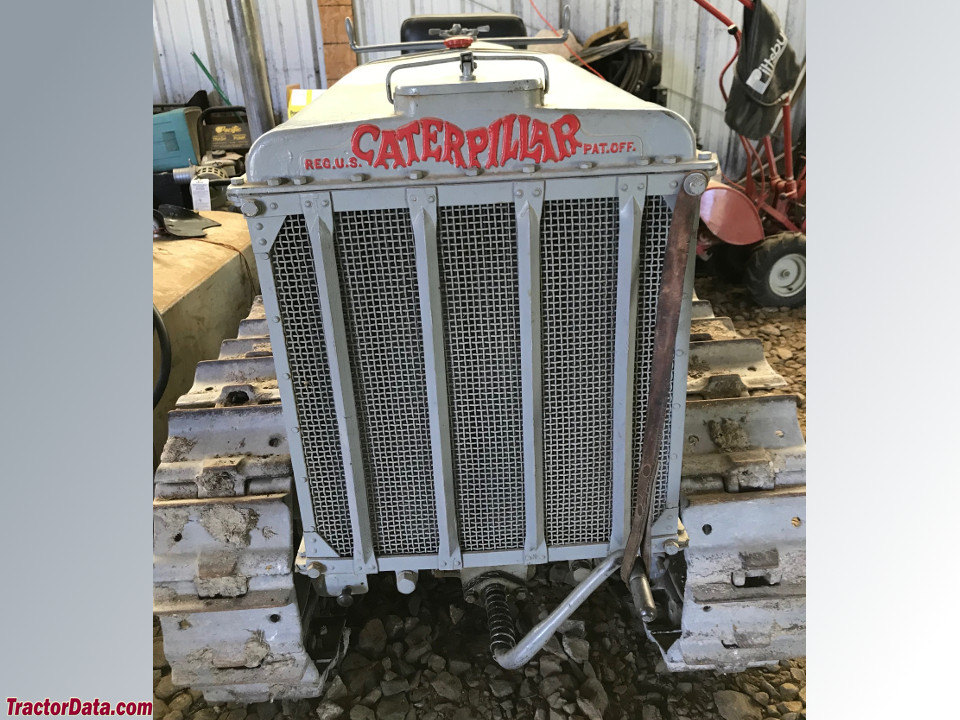

Holt 2-Ton

Name: Holt 2-Ton
Brand: Holt

Holt 2-Ton — Agricultural Crawler tractor · 18 hp. Reference specifications; pending source verification.

The Holt 2-Ton is a tractor with a rated output of approximately 18 horsepower, categorising it as a relatively lightweight model. Manufactured between 1921 and 1925, this tractor features a 4-cylinder petrol liquid-cooled engine and a tracked undercarriage with a 3-speed gearbox. Its operating weight is listed at 1814 kg, and it is suited for operations on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Max power

13.5 kW

Weight

1814 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

18 hp

Recorded weight

1814 kg

Transmissions

3-speed gear

Production years

1921-1925

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHoltReference

Agricultural Crawler tractorReference

FactoriesStockton, California, USAReference

FactoriesPeoria, Illinois, USAReference

Also known as the Holt T-35 or 15-25.Reference

DrivecrawlerReference

Open operator station.Reference

Engine

Holt 4.1L 4-cyl gasolineReference

Drawbar (tested)13.5 kWReference

Belt (tested)19.0 kWReference

HoltReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement4.1 LReference

Bore/Stroke102 x 140 mmReference

Rated RPM1000Reference

Belt power (max)19.0 kWReference

Max power13.5 kWReference

Transmission

3-speed gearReference

TypegearReference

Gears3 forward and 1 reverseReference

Dimensions

Weight1814 kgReference

10-inch tracksReference

Length261 cmReference

Width121 cmReference

Height132 cmReference

Holt 2-Ton Tracks

Width25 cmReference

Test results

Gasoline 3-speed crawlerJuly 19 - 26, 1922Link: Nebraska Tractor Test 86 fileReference

Drawbar performanceReference

Max pull1485 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
