Lawn Tractor · 1987Unverified
Honda HT4213
Honda HT4213 — Lawn tractor · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
257 kg
Hover a source tag to verify
Overview
ManufacturerHondaReference
Lawn tractorReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
13HP Honda 358cc 2-cyl gasolineReference
Fuel tank7.1 LReference
Honda GX360K1Reference
gasolineReference
2-cylinderReference
liquid-cooled horizontal-shaft inlineReference
Displacement21.9 ciReference
Bore/Stroke58 x 68 mmReference
Power9.7 kWReference
Torque25.8 NmReference
Torque RPM3000Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity1.8 LReference
Sparkplug gap0.660 mmReference
Oil capacity1.4 LReference

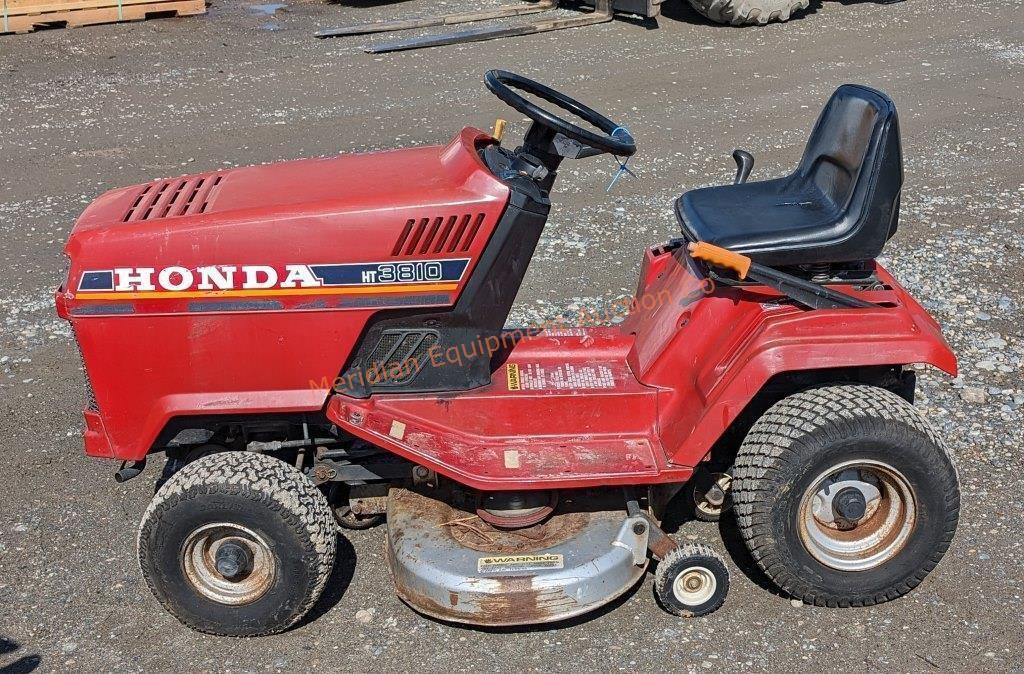

Image courtesy of Ron SitesReference
Transmission
5-speed gearReference
Typeshaft-driven gearReference
Gears5 forward and 1 reverseReference
1Gear ShiftReference
2ThrottleReference
3Brake PedalReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchmanualReference
Dimensions
Wheelbase116 cmReference
Weight257 kgReference
Front tire15x6.00-6Reference
Rear tire18x8.50-8Reference
Lawn/turf front15x6.00-6Reference
Lawn/turf rear18x8.50-8Reference
Length175 cmReference
Width144 cmReference
Height104 cmReference
Shipping weight257 kgReference
Honda HT4213 attachments
42" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH30Reference
42" Mower deck
Typemid-mount HondaReference
Type3-blade with manual liftReference
Cutting width106 cmReference
Cut height3 to 10 cmReference
Cut positions6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
