Tractor · 1925Unverified

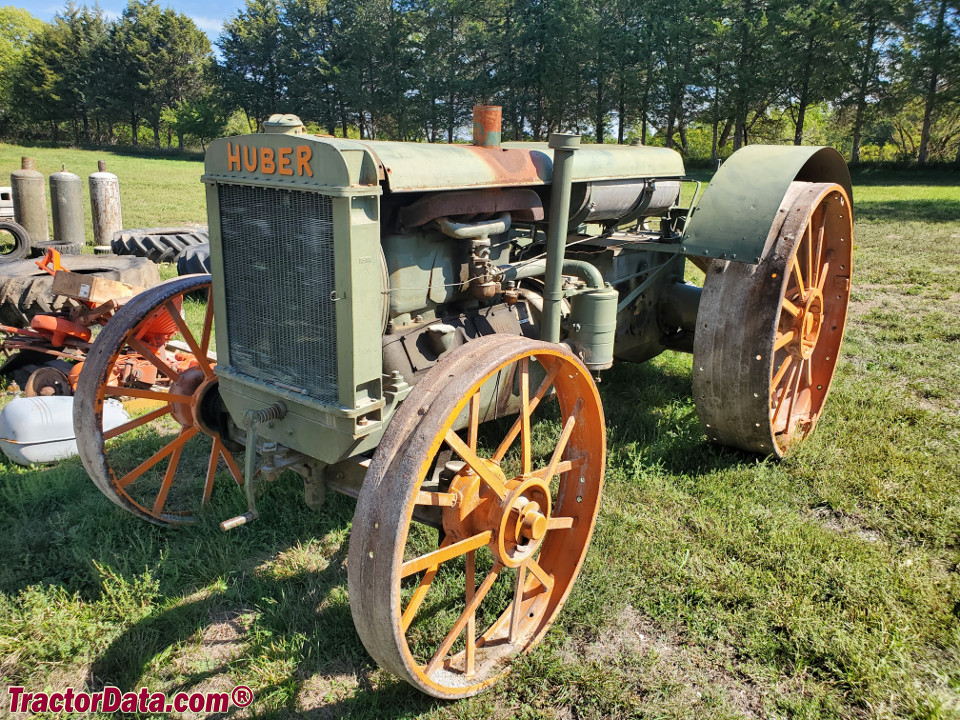

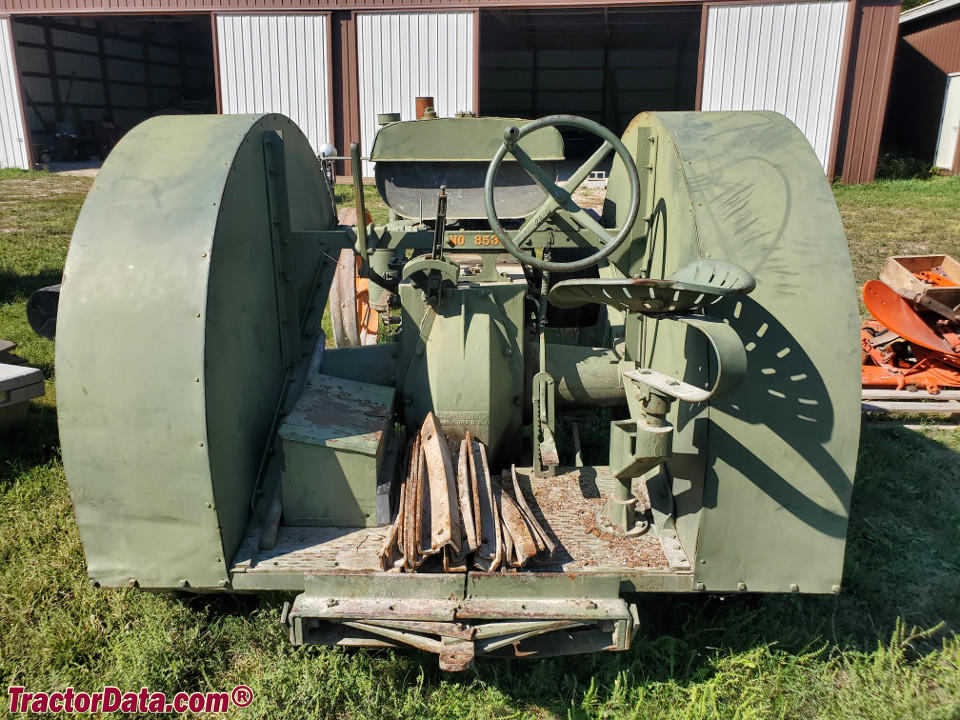

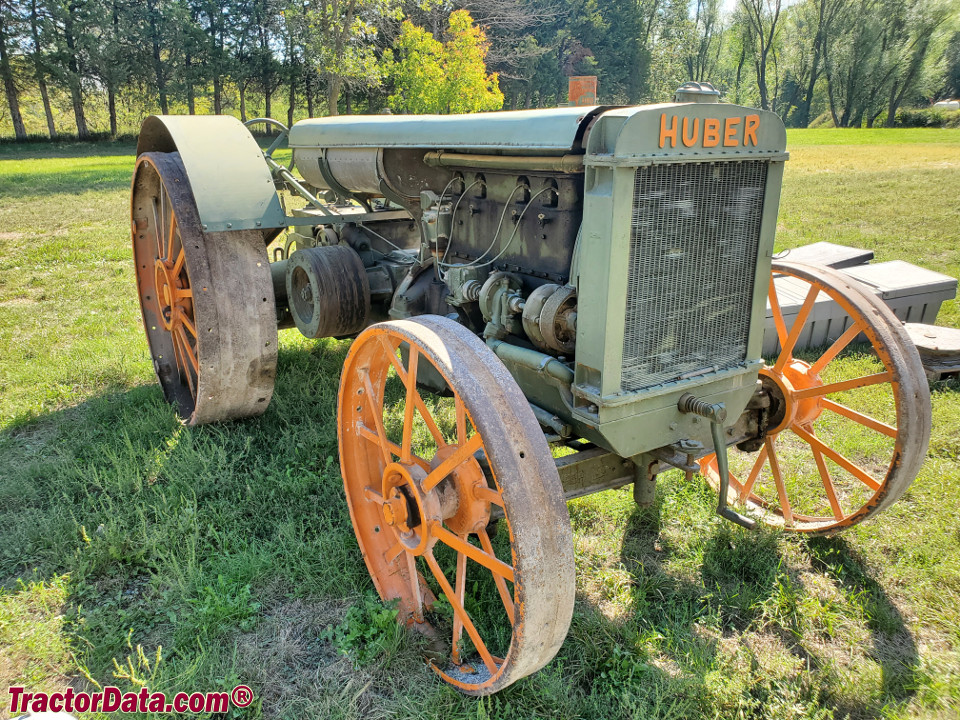

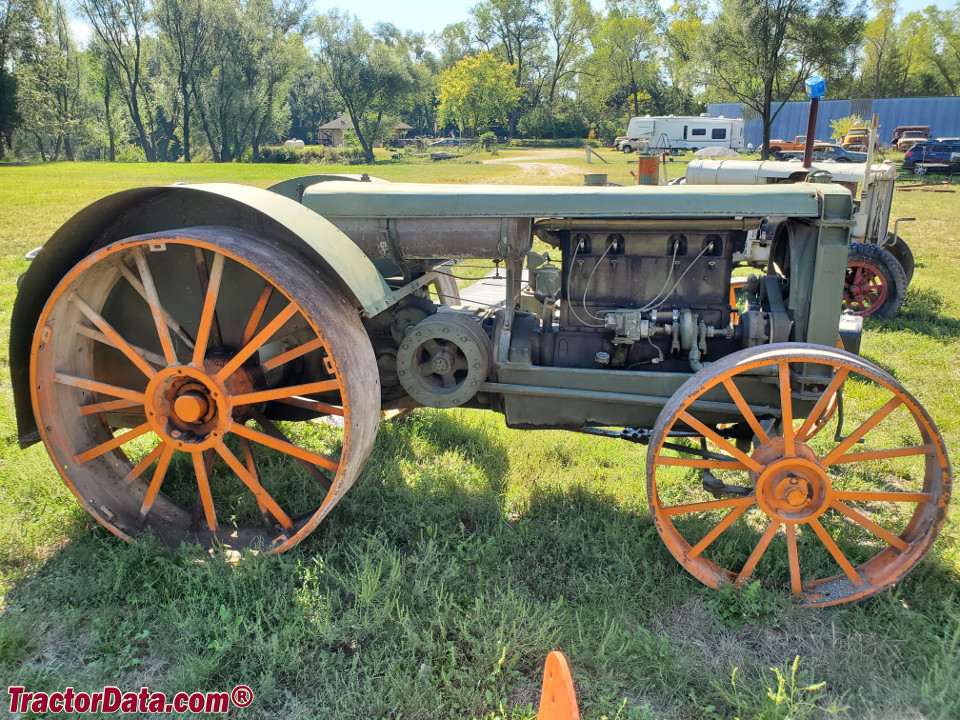

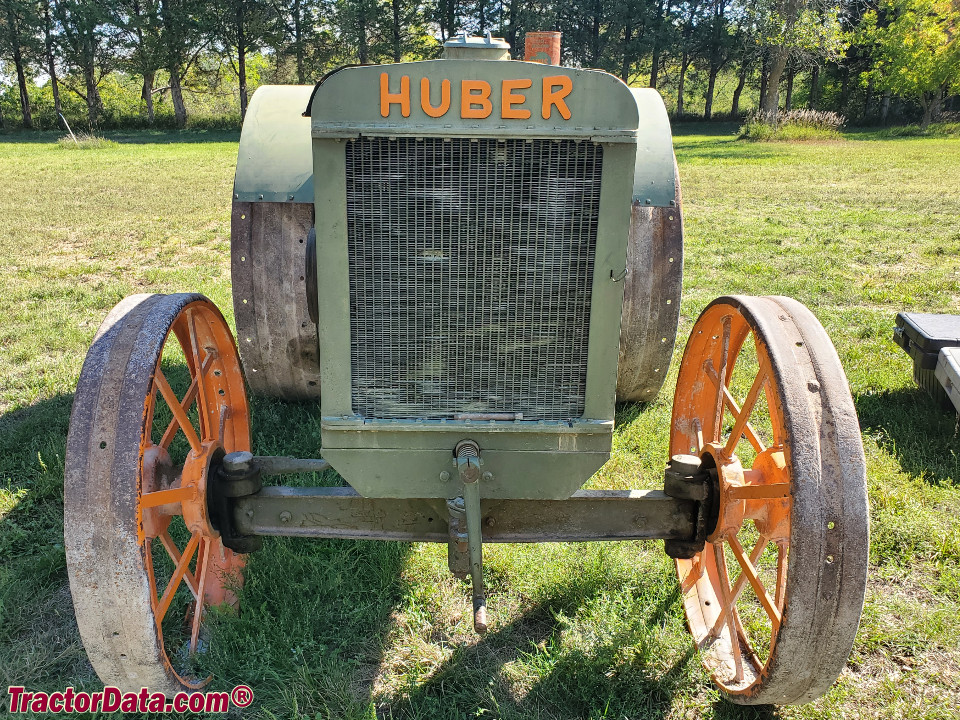

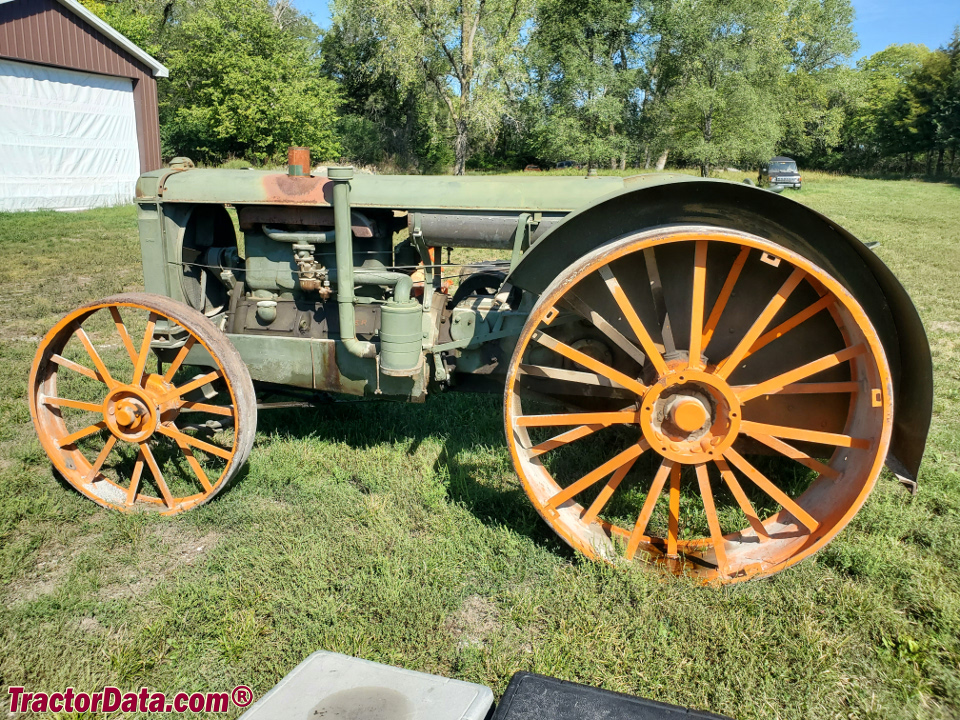

Huber 18-36 Super Four

Name: Huber 18-36 Super Four
Brand: Huber

Huber 18-36 Super Four — Standard-tread tractor · 18 hp. Reference specifications; pending source verification.

The Huber 18-36 Super Four is a compact tractor model with a rated output of 18 hp, produced between 1925 and 1928. This model features a 4-cylinder petrol liquid-cooled engine, driving through two-wheel drive via a 2-speed gearbox, and has a listed weight of 3832 kg. It is designed for use in areas of up to 200 acres, with detailed specifications available in both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Max power

22.6 kW

Weight

3832 kg

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

18 hp

Recorded weight

3832 kg

Transmissions

2-speed gear

Production years

1925-1928

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHuberReference

Standard-tread tractorReference

Built in Marion, Ohio, USAReference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Engine

Stearns 7.6L 4-cyl gasolineReference

Fuel tank151.4 LReference

Drawbar (claimed)13.4 kWReference

Belt (claimed)26.8 kWReference

Plows3Reference

Drawbar (tested)22.6 kWReference

Belt (tested)27.0 kWReference

StearnsReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement7.6 LReference

Bore/Stroke121 x 165 mmReference

Air cleaneroil sprayReference

Rated RPM1000Reference

Coolant capacity37.9 LReference

Belt power (max)27.0 kWReference

Max power22.6 kWReference

Transmission

2-speed gearReference

TypegearReference

Gears2 forward and 1 reverseReference

Clutchdry discReference

Dimensions

Wheelbase236 cmReference

Weight3832 kgReference

Front tire40x5Reference

Rear tire56x14Reference

Ag front40x5 (steel)Reference

Ag rear56x14 (steel)Reference

Length401 cmReference

Width193 cmReference

Height (hood)157 cmReference

Operating weight3832 kgReference

Capacities

Diameter39 cmReference

Width20 cmReference

RPM695Reference

Test results

Gasoline 2WDJune 7 - 12, 1926Link: Nebraska Tractor Test 123 fileReference

Belt fuel use (max)17.4 l/hourReference

Drawbar performanceReference

Max pull2458 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
