Tractor · 1928Unverified

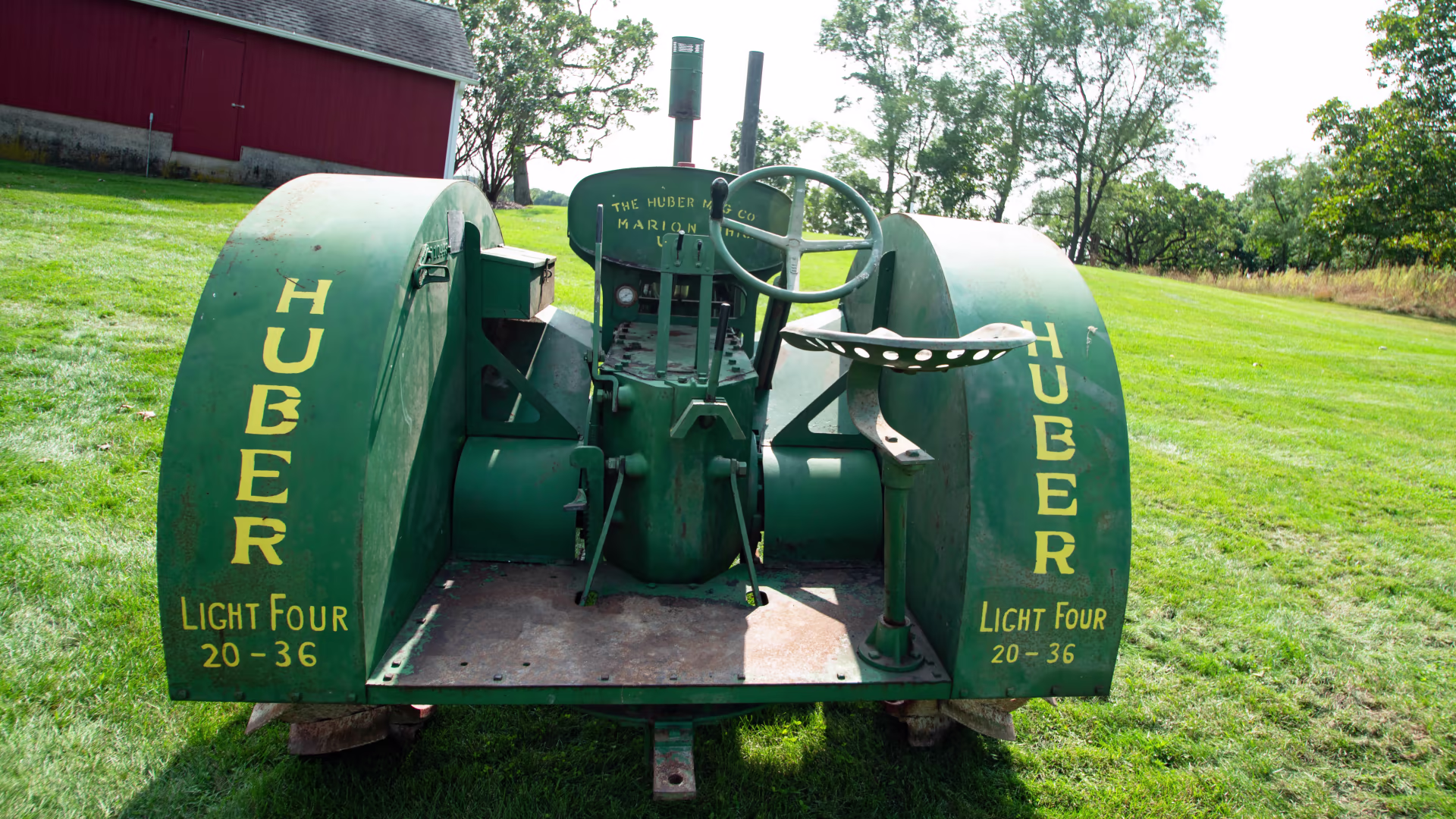

Huber 20-36 Light Four

Name: Huber 20-36 Light Four
Brand: Huber

Huber 20-36 Light Four — Standard-tread tractor · 20 hp. Reference specifications; pending source verification.

The Huber 20-36 Light Four is a compact tractor with a rated output of 20 hp, produced between 1928 and 1935. It features a 4-cylinder petrol liquid-cooled engine, coupled with a two-wheel drive system and a 2-speed gearbox. The tractor weighs 2982 kg and is designed for use in areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Max power

21.8 kW

Weight

2982 kg

Catalogue coverage

Variants represented

Richest spec table

43 rows

Recorded power

20 hp

Recorded weight

2982 kg

Transmissions

2-speed gear

Production years

1928-1935

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHuberReference

Standard-tread tractorReference

Built in Marion, Ohio, USAReference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Engine

Waukesha 7.3L 4-cyl gasolineReference

Fuel tank121.1 LReference

Drawbar (claimed)14.9 kWReference

Belt (claimed)26.8 kWReference

Plows4Reference

Drawbar (tested)21.8 kWReference

Belt (tested)31.5 kWReference

WaukeshaReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement7.3 LReference

Bore/Stroke121 x 159 mmReference

Air cleaneroil bathReference

Belt power (max)31.5 kWReference

Max power21.8 kWReference

Transmission

2-speed gearReference

TypegearReference

Gears2 forward and 1 reverseReference

Clutchdry discReference

Dimensions

Wheelbase207 cmReference

Weight2982 kgReference

Front tire34x6Reference

Rear tire50x12Reference

Ag front34x6 (steel)Reference

Ag rear50x12 (steel)Reference

Length342 cmReference

Width185 cmReference

Height (hood)154 cmReference

Operating weight2982 kgReference

Capacities

Diameter43 cmReference

Width21 cmReference

RPM616Reference

Test results

Gasoline 2WDAugust 19 - 24, 1929Link: Nebraska Tractor Test 168 fileReference

Belt fuel use (max)19.7 l/hourReference

Drawbar performanceReference

Max pull2033 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
