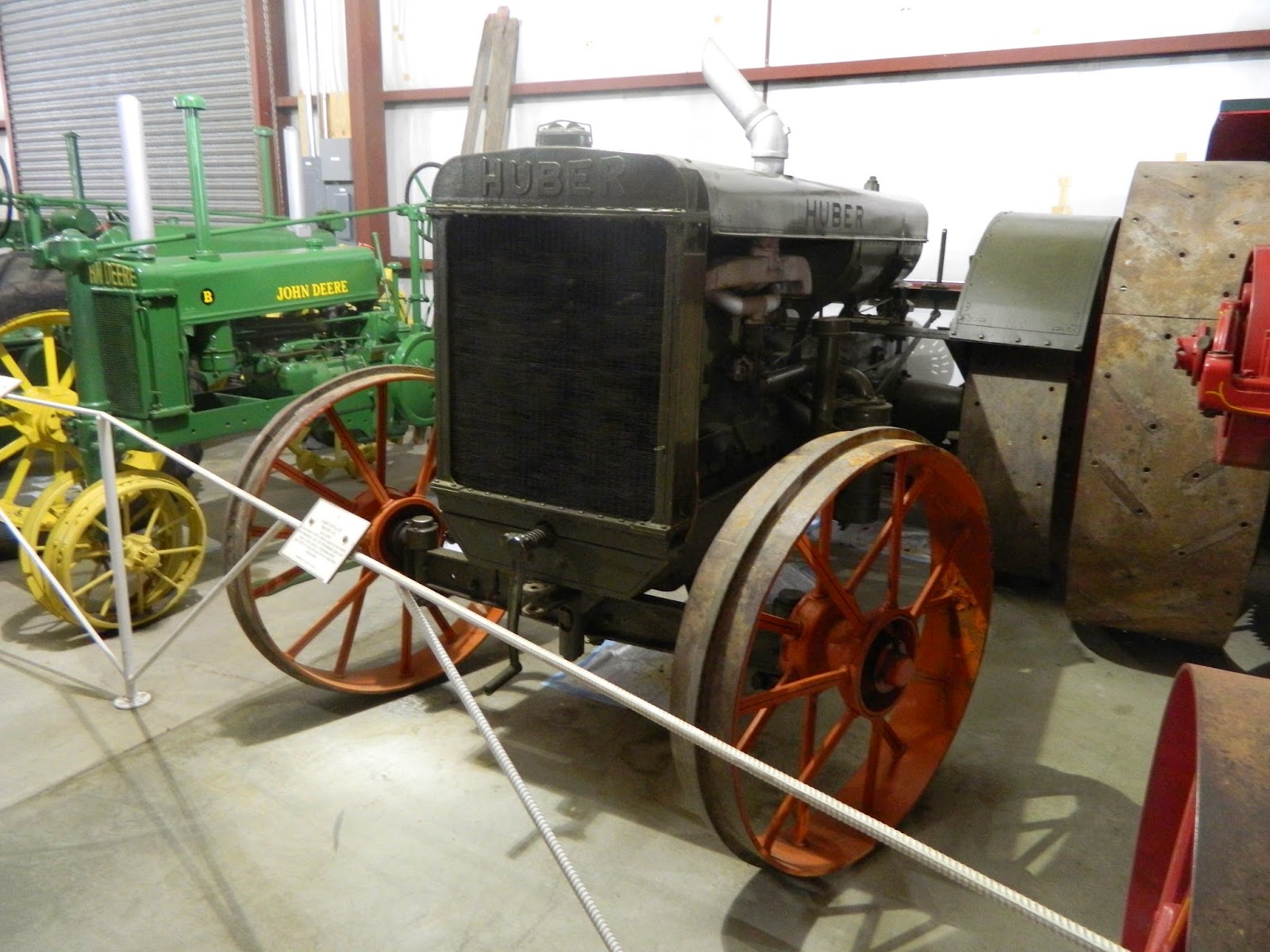

The Huber 20-40 is a tractor with a rated output of 20 hp, classified as one of the more compact options in its class. Produced between 1914 and 1917, this model features a 2-cylinder liquid-cooled engine driving through a 2-speed gearbox with two-wheel drive. The listed weight of the Huber 20-40 is 5670 kg, with an intended application for jobs up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
5670 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
20 hp
Recorded weight
5670 kg
Transmissions
2-speed gear
Production years
1914-1917
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHuberReference
Standard-tread tractorReference
Built in Marion, Ohio, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Huber 14.8L 2-cyl keroseneReference
Fuel tank170.3 LReference
Drawbar (claimed)14.9 kWReference
Belt (claimed)29.8 kWReference
HuberReference
keroseneReference
2-cylinderReference
liquid-cooledReference
Displacement14.8 LReference
Bore/Stroke203 x 229 mmReference
Rated RPM550Reference
Coolant capacity181.7 LReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight5670 kgReference
Rear tire68x20Reference
Ag rear68x20 (steel)Reference
Length454 cmReference
Width220 cmReference
Height238 cmReference
Capacities
Diameter53 cmReference
Width22 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
