Tractor · 1926Unverified

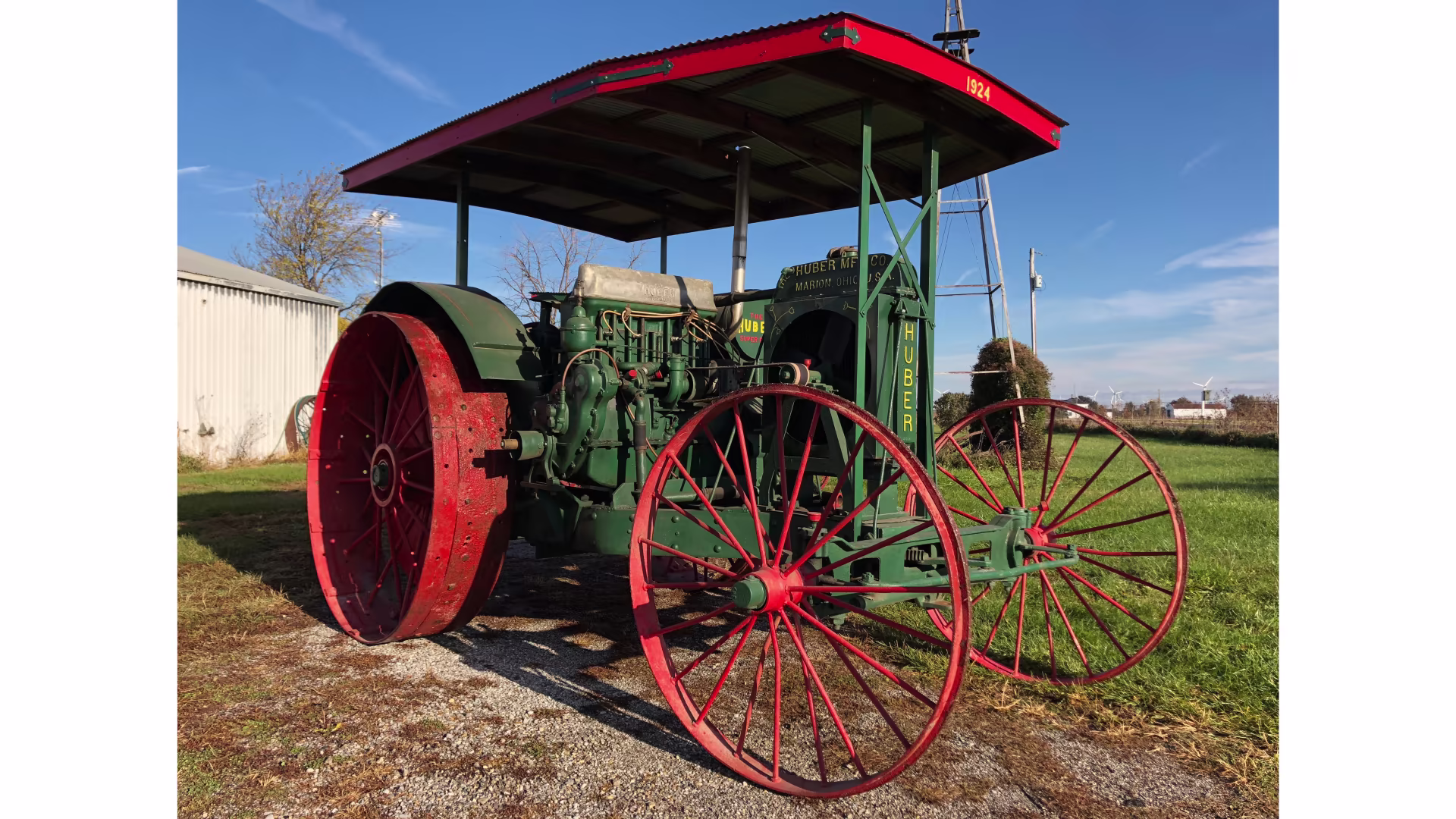

Huber 20-40 Super Four

Name: Huber 20-40 Super Four
Brand: Huber

Huber 20-40 Super Four — Standard-tread tractor · 20 hp. Reference specifications; pending source verification.

The Huber 20-40 Super Four is a tractor model with a rated output of 20 hp, offering a relatively compact design within its class. It was manufactured from 1926 to 1928 and features a 4-cylinder petrol liquid-cooled engine, coupled with a 2-speed gearbox and two-wheel drive. The listed weight of the tractor is 4166 kg, and it is intended for use on land areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Max power

30.4 kW

Weight

4166 kg

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

20 hp

Recorded weight

4166 kg

Transmissions

2-speed gear

Production years

1926-1928

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHuberReference

Standard-tread tractorReference

Built in Marion, Ohio, USAReference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Engine

Stearns 8.8L 4-cyl gasolineReference

Fuel tank189.2 LReference

Drawbar (claimed)14.9 kWReference

Belt (claimed)29.8 kWReference

Plows4Reference

Drawbar (tested)30.4 kWReference

Belt (tested)37.3 kWReference

StearnsReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement8.8 LReference

Bore/Stroke130 x 165 mmReference

Air cleaneroil sprayReference

Rated RPM1100Reference

Coolant capacity43.5 LReference

Belt power (max)37.3 kWReference

Max power30.4 kWReference

Transmission

2-speed gearReference

TypegearReference

Gears2 forward and 1 reverseReference

Clutchdry discReference

Dimensions

Wheelbase241 cmReference

Weight4166 kgReference

Front tire40x7Reference

Rear tire56x18Reference

Ag front40x7 (steel)Reference

Ag rear56x18 (steel)Reference

Length406 cmReference

Width213 cmReference

Height (hood)157 cmReference

Operating weight4166 kgReference

Capacities

Diameter39 cmReference

Width20 cmReference

RPM666Reference

Test results

Gasoline 2WDSeptember 7 - 15, 1926Link: Nebraska Tractor Test 126 fileReference

Belt fuel use (max)26.9 l/hourReference

Drawbar performanceReference

Max pull2690 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
