Tractor · 1926Unverified

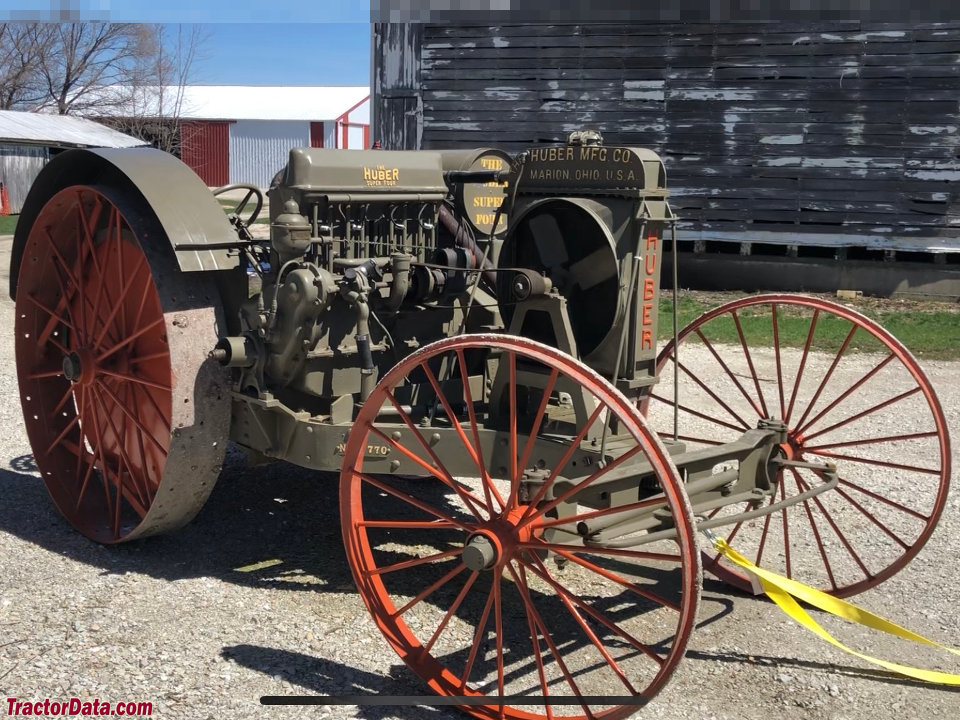

Huber 25-50 Super Four
Huber 25-50 Super Four — Standard-tread tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
4427 kg
Hover a source tag to verify
Overview
ManufacturerHuberReference
Standard-tread tractorReference
Built in Marion, Ohio, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Stearns 10.1L 4-cyl gasolineReference
Fuel tank189.2 LReference
Drawbar (claimed)18.6 kWReference
Belt (claimed)37.3 kWReference
Plows4Reference
StearnsReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement10.1 LReference
Bore/Stroke140 x 165 mmReference
Air cleaneroil sprayReference
Rated RPM1100Reference
Coolant capacity43.5 LReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Wheelbase241 cmReference
Weight4427 kgReference
Front tire40x7Reference
Rear tire56x20Reference
Ag front40x7 (steel)Reference
Ag rear56x20 (steel)Reference
Length406 cmReference
Width223 cmReference
Height (hood)157 cmReference
Operating weight4427 kgReference
Capacities
Diameter39 cmReference
Width23 cmReference
RPM666Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
