Tractor · 1935Unverified

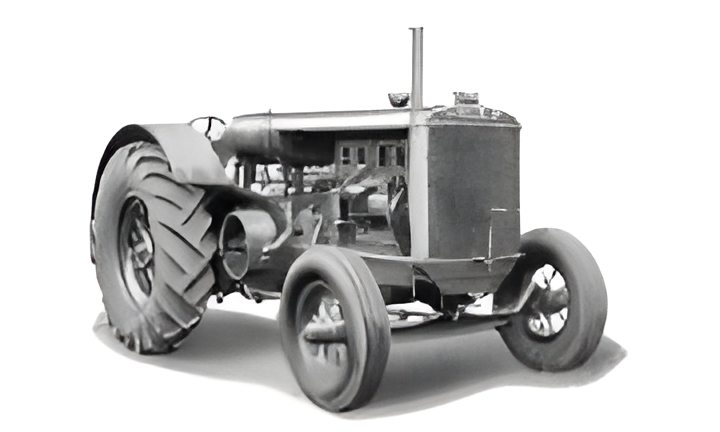

Huber HK 32-45
Huber HK 32-45 — Standard-tread tractor · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
2721 kg
Hover a source tag to verify
Overview
ManufacturerHuberReference
Standard-tread tractorReference
Built in Marion, Ohio, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Waukesha 8.5L 4-cyl gasolineReference
Drawbar (claimed)23.9 kWReference
Belt (claimed)33.6 kWReference
Plows4Reference
WaukeshaReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement8.5 LReference
Bore/Stroke130 x 159 mmReference
Rated RPM1150Reference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Weight2721 kgReference
Rear tire50x12Reference
Ag rear50x12 (steel)Reference
Length342 cmReference
Width195 cmReference
Height (hood)154 cmReference
Capacities
Diameter43 cmReference
Width21 cmReference
RPM616Reference
Speed835.15 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
