Tractor · 1993Unverified

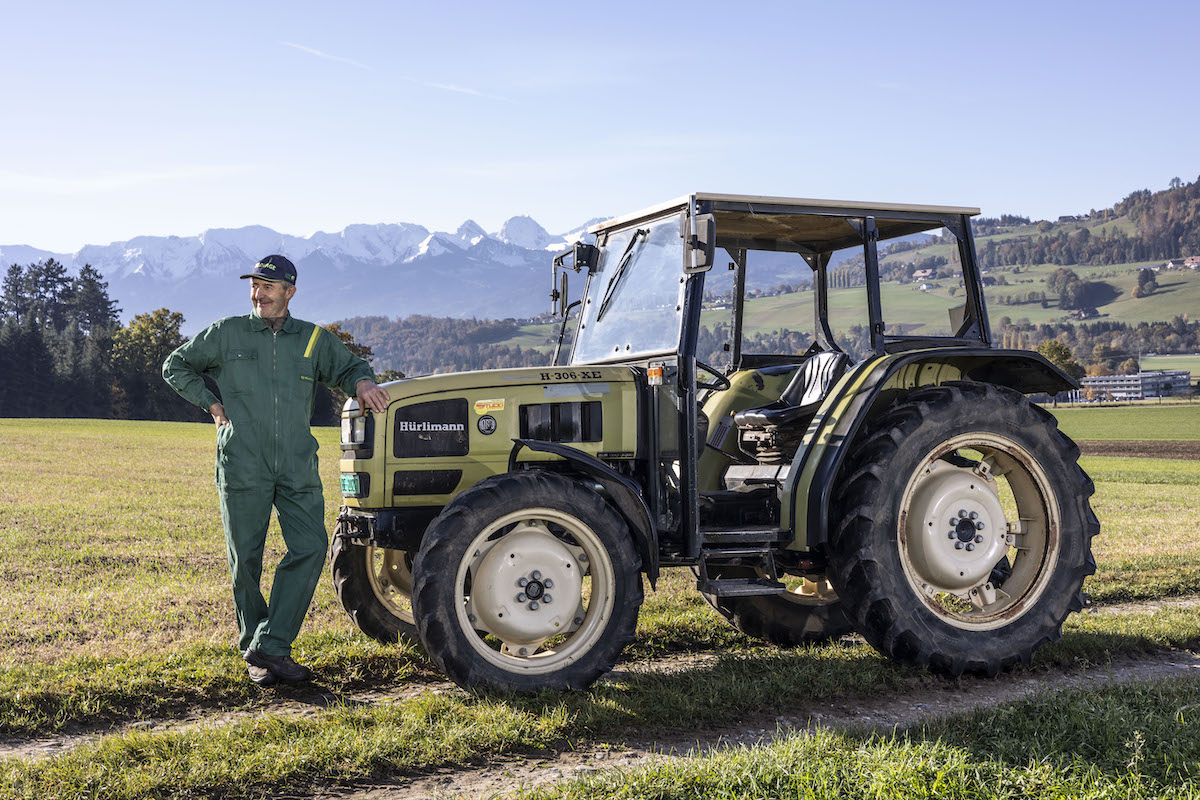

Hurlimann H-306 XE
Hurlimann H-306 XE — H-300 XE Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
4542 to 5071 pounds
Hover a source tag to verify
Overview
ManufacturerHurlimann (a part of SAME)Reference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Four-post ROPS.Reference
Engine
SAME 3.0L 3-cyl dieselReference
Fuel tank57.9 LReference
Engine44.0 kWReference
SAME 1000.3 AReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 115 mmReference
Power44.0 kWReference
Rated RPM2350Reference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
12-speed creeperReference
16-speedReference
24-speed creeperReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
TypecreeperReference
Gears12 forward and reverseReference
Gears16 forward and 8 reverseReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Valves2 or 3Reference
Pump flow32.9 lpmReference
Rear TypeIIReference
Rear lift2960 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Rear PTO Type1000Reference
Dimensions
2WD Wheelbase210 cmReference
4WD Wheelbase205 cmReference
Weight4542 to 5071 poundsReference
Front tire7.50-16Reference
2WD Rear tire420/70R28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 420/70R28Reference
4WD Standard tires (ag)Front: 320/70R20. Rear: 420/70R28Reference
2WD Optional tires (ag)Front: 6.00-19. Rear: 12.4R32Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 420/70R30Reference
2WD Optional tires (ag)Front: 6.50-20. Rear: 12.4R36Reference
4WD Optional tires (ag)Front: 8.3R24. Rear: 12.4R32Reference
4WD Optional tires (ag)Front: 360/70R20. Rear: 420/70R30Reference
4WD Optional tires (ag)Front: 11.2R24. Rear: 12.4R36Reference
Length358 cmReference
Width178 cmReference
2WD Weight2060 kgReference
4WD Weight2300 kgReference
2WD Ground clearance43 cmReference
4WD Ground clearance35 cmReference
2WD Front tread127 to 156 cmReference
4WD Front tread134 to 173 cmReference
Rear tread139 to 180 cmReference
Steering wheel153 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Hurlimann H-306 XE Height
Hood139 cmReference
ROPS227 cmReference
Speeds
With 420/70R30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
