Tractor · 1979Unverified

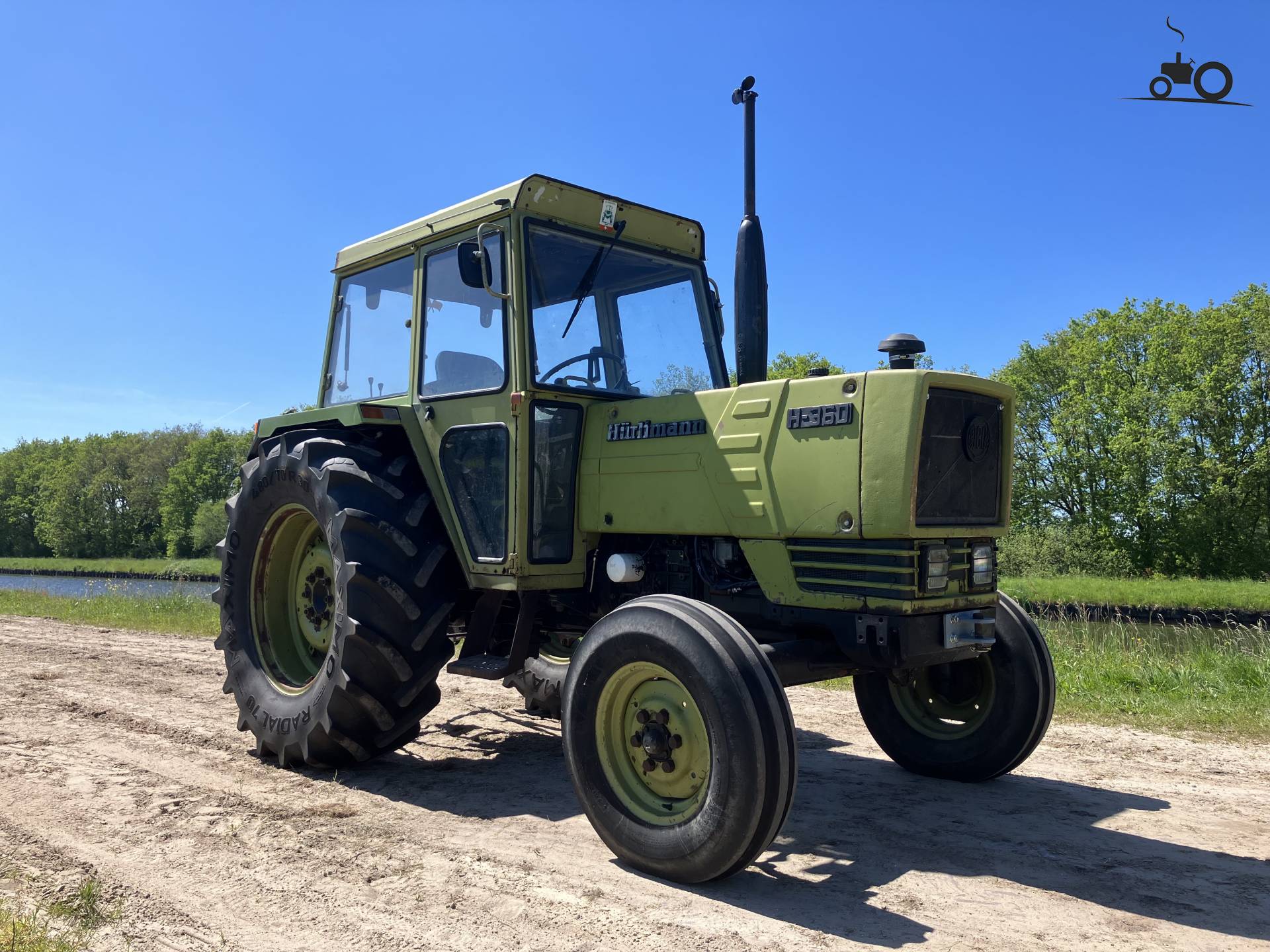

Hurlimann H-360
Hurlimann H-360 — H-300 Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
5159 to 5930 pounds
Hover a source tag to verify
Overview
ManufacturerHurlimann (a part of SAME)Reference
Built in Wil, SwitzerlandReference
Total built1,263Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
Hurlimann 3.4L 3-cyl dieselReference
Fuel tank60.2 LReference
Engine44.1 kWReference
Hurlimann H-1103Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement3.4 LReference
Bore/Stroke110 x 120 mmReference
Power44.1 kWReference
Compression16:1Reference
Rated RPM2300Reference
Torque229.0 NmReference
Torque RPM1250Reference
Starter typeelectricReference
Coolant capacity13.0 LReference
Transmission
12-speedReference
Gears12 forward and 3 reverseReference
Four gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Rear TypeIIReference
Rear lift2410 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1938Reference
Engine RPM1000@1926Reference
Dimensions
Wheelbase213 cmReference
Weight5159 to 5930 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9-30Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 14.9-30Reference
Length362 cmReference
Width165 cmReference
Height (steering wheel)165 cmReference
2WD Weight2340 kgReference
4WD Weight2689 kgReference
2WD Ground clearance41 cmReference
2WD Ground clearance33 cmReference
2WD Front tread140 to 191 cmReference
4WD Front tread147 to 197 cmReference
Rear tread135 to 176 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
