Tractor · 1986Unverified

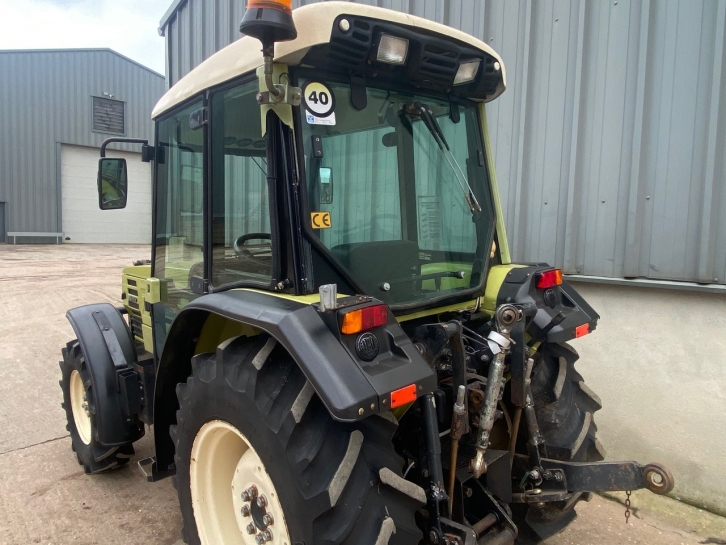

Hurlimann H-361
Hurlimann H-361 — Utility tractor · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
4586 to 5203 pounds
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Variants
660similar Lamborghini modelReference
Solar 60similar SAME modelReference
Engine
SAME 3.1L 3-cyl dieselReference
Fuel tank54.9 LReference
Engine44.0 kWReference
SAME 1053 PReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power44.0 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Clutchdry discReference
TypecreeperReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Pressure180.0 barReference
Pump flow32.2 lpmReference
Rear TypeIIReference
Rear lift2970 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase209 cmReference
4WD Wheelbase206 cmReference
Weight4586 to 5203 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9/13-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9/13-28Reference
4WD Standard tires (ag)Front: 11.2/10-20. Rear: 14.9/13-28Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 13.6/12-28Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 14.9/13-30Reference
2WD Optional tires (ag)Front: 6.00-19. Rear: 12.4/11-32Reference
2WD Optional tires (ag)Front: 6.50-20. Rear: 12.4/11-36Reference
4WD Optional tires (ag)Front: 9.5/9-20. Rear: 13.6/12-28Reference
4WD Optional tires (ag)Front: 9.5./9-24. Rear: 14.9/13-30Reference
4WD Optional tires (ag)Front: 8.3/8-24. Rear: 12.4/11-32Reference
4WD Optional tires (ag)Front: 9.5/9-24. Rear: 12.4/11-36Reference
Length317 cmReference
Length338 cmReference
Width169 cmReference
2WD Weight2080 kgReference
4WD Weight2360 kgReference
2WD Ground clearance46 cmReference
4WD Ground clearance35 cmReference
2WD Front tread122 to 163 cmReference
4WD Front tread134 to 155 cmReference
Rear tread135 to 185 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Hurlimann H-361 Height
2WD Hood132 cmReference
4WD Hood130 cmReference
ROPS230 cmReference
Speeds
With 14.9/13-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
