Tractor · 1989Unverified

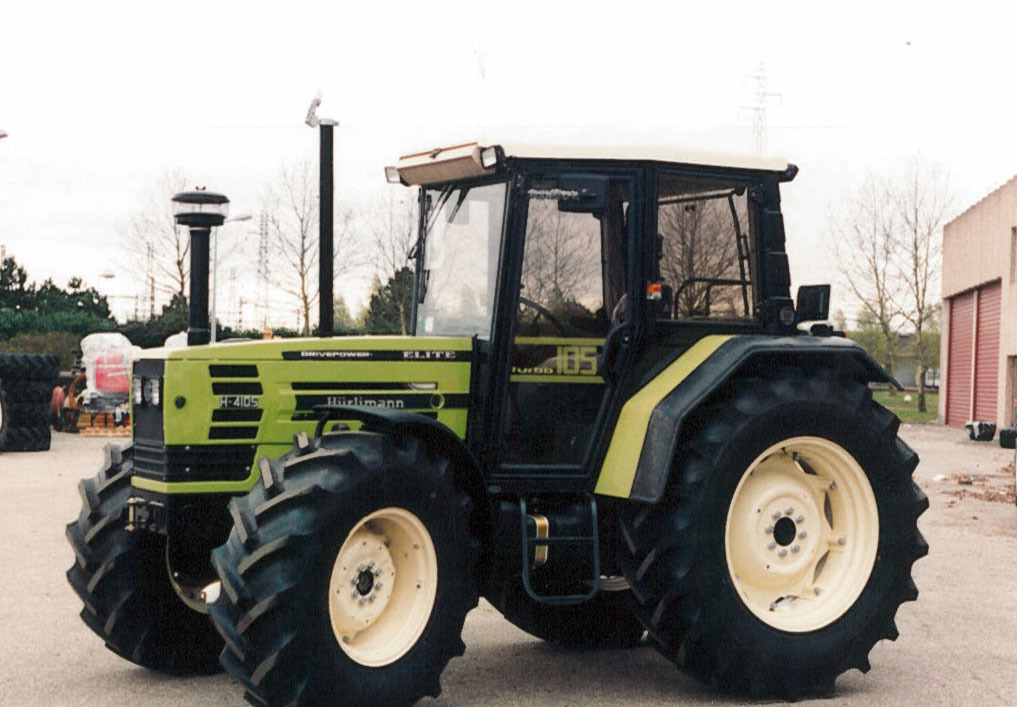

Hurlimann H-4105 Elite
Hurlimann H-4105 Elite · 103 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
103 hp
Weight
3740 kg
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine76.8 kWReference
SAMEReference
dieselReference
4-cylinderReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power76.8 kWReference
Rated RPM2500Reference
Torque360.0 NmReference
Torque RPM1250Reference
Transmission
40-speedReference
Gears40 forward and reverseReference
PTO & Hydraulics
Pump flow42.4 lpmReference
Rear lift4760 kgReference
Rear PTO Type540, 750, 1000, 1250Reference
Dimensions
Wheelbase232 cmReference
Weight3740 kgReference
Front tire16.9R24Reference
Rear tire18.4R34Reference
Ag front16.9R24Reference
Ag rear18.4R34Reference
Length408 cmReference
Height262 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
