Tractor · 1986Unverified

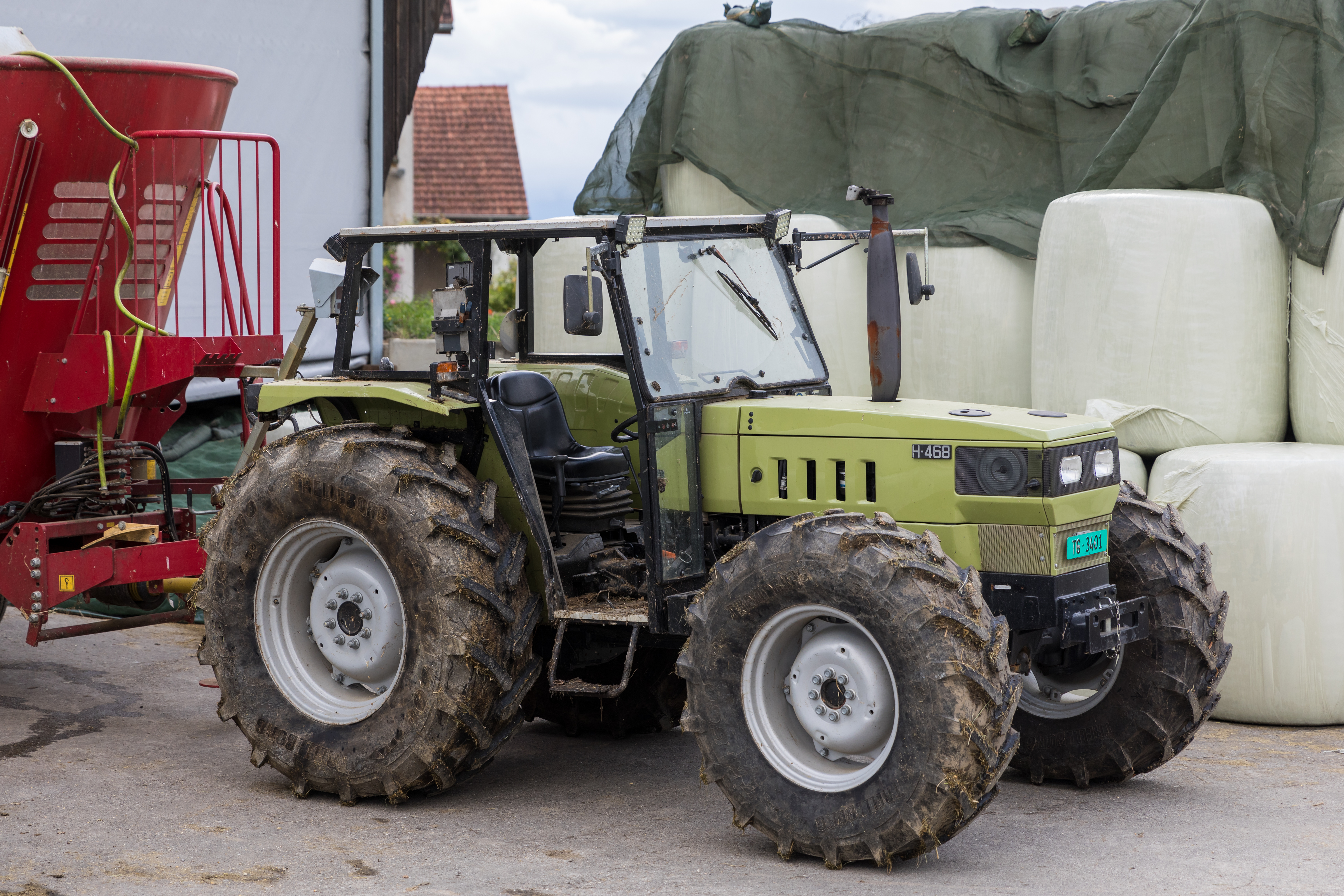

Hurlimann H-468

Name: Hurlimann H-468
Brand: Hurlimann

Hurlimann H-468 · 69 hp. Reference specifications; pending source verification.

The Hurlimann H-468 is a tractor with a rated output of 69 hp, placing it within the middle power range of its class. Produced from 1986 to 1990, it features a 4-cylinder diesel liquid-cooled engine, powering a four-wheel drive system through a 15-speed gearbox. Its listed weight ranges from 5932 pounds to 6592 pounds, and it is designed for use on land areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

69 hp

Weight

5932 to 6592 pounds

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

69 hp

Transmissions

15-speed mechanical shuttle

Production years

1986-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHurlimannReference

Two- or four-wheel driveReference

Power steeringReference

Four-post ROPS. Cab optional.Reference

Variants

674-70similar Lamborghini modelReference

Engine

SAME 4.0L 4-cyl dieselReference

Fuel tank90.1 LReference

Engine51.5 kWReference

SAME 1000.4WReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke105 x 116 mmReference

Power51.5 kWReference

Compression17:1Reference

Rated RPM2350Reference

Torque256.3 NmReference

Torque RPM1350Reference

Starter volts12Reference

Transmission

15-speed mechanical shuttleReference

32-speed creeperReference

Typemechanical shuttleReference

Gears15 forward and reverseReference

Five gears in three ranges with shuttle.Reference

TypecreeperReference

Gears32 forward and 16 reverseReference

Eight gears in four ranges.Reference

PTO & Hydraulics

Pump flow32.9 lpmReference

Rear TypeIIReference

Rear lift3430 kgReference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

2WD Wheelbase236 cmReference

4WD Wheelbase228 cmReference

Weight5932 to 6592 poundsReference

Front tire9.00-16Reference

2WD Rear tire16.9-30Reference

2WD Standard tires (ag)Front: 9.00-16. Rear: 16.9-30Reference

4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9-30Reference

2WD Optional tires (ag)Front: 9.00-16. Rear: 13.6-38Reference

4WD Optional tires (ag)Front: 12.4-28. Rear: 13.6-38Reference

Length375 cmReference

Width197 cmReference

Height (ROPS)235 cmReference

Height (cab)253 cmReference

2WD Ground clearance42 cmReference

4WD Ground clearance40 cmReference

2WD Front tread139 to 180 cmReference

4WD Front tread150 to 210 cmReference

Rear tread139 to 199 cmReference

2WD ROPS2690 kgReference

2WD Cab2820 kgReference

4WD ROPS2770 kgReference

4WD Cab2990 kgReference

Electrical

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
