Tractor · 1979Unverified

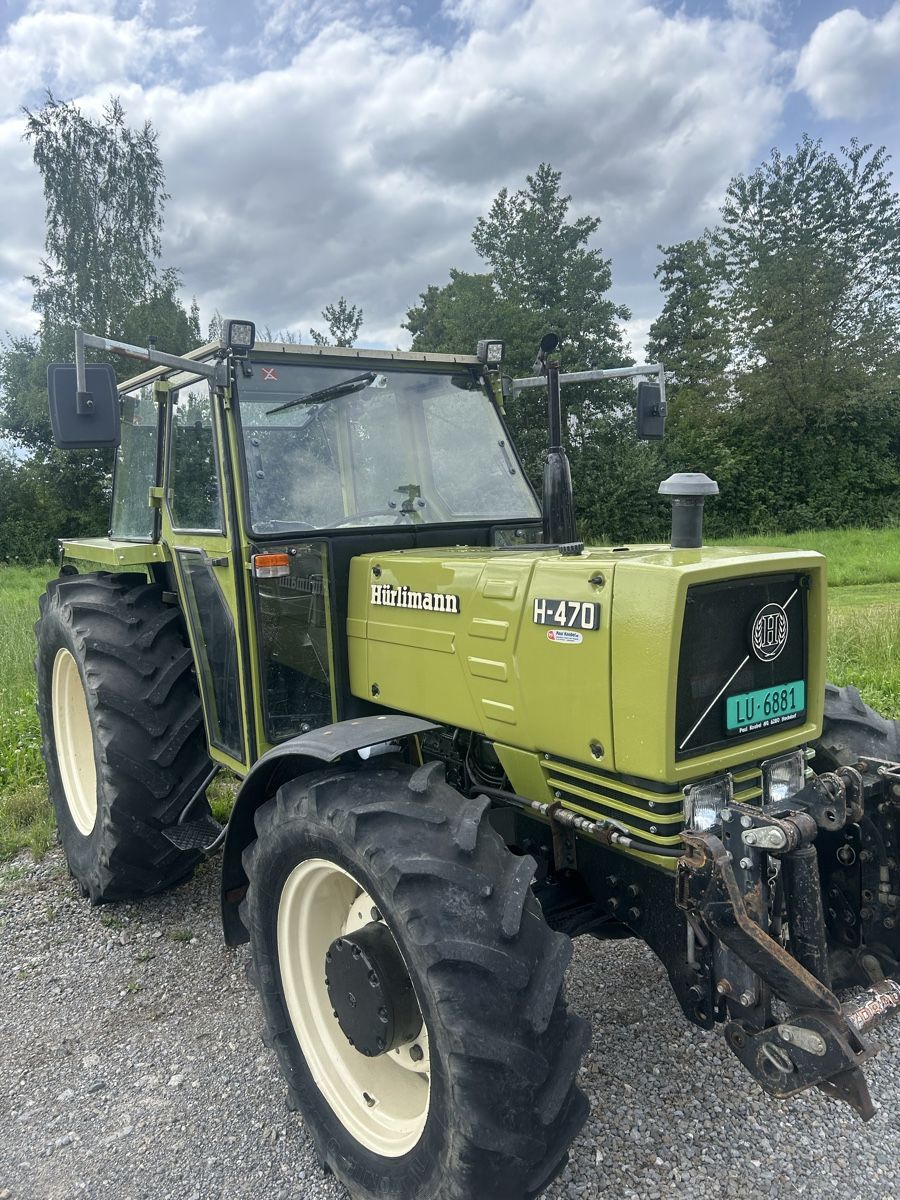

Hurlimann H-470
Hurlimann H-470 — H-400 Series · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
6063 to 6768 pounds
Hover a source tag to verify
Overview
ManufacturerHurlimann (a part of SAME)Reference
Built in Wil, SwitzerlandReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Four-post ROPS. Cab optional.Reference
Engine
Hurlimann 4.6L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine53.0 kWReference
Hurlimann H-1104Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power53.0 kWReference
Compression16:1Reference
Rated RPM2300Reference
Torque265.1 NmReference
Torque RPM1200Reference
Transmission
12-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Four gears, plus reverse, in three ranges.Reference
TypecreeperReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Rear lift2410 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase230 cmReference
Weight6063 to 6768 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
Length386 cmReference
Width177 cmReference
Height (steering wheel)189 cmReference
2WD Weight2750 kgReference
4WD Weight3069 kgReference
2WD Ground clearance44 cmReference
4WD Ground clearance36 cmReference
2WD Front tread145 to 195 cmReference
4WD Front tread141 to 197 cmReference
Rear tread139 to 199 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
