Tractor · 1986Unverified

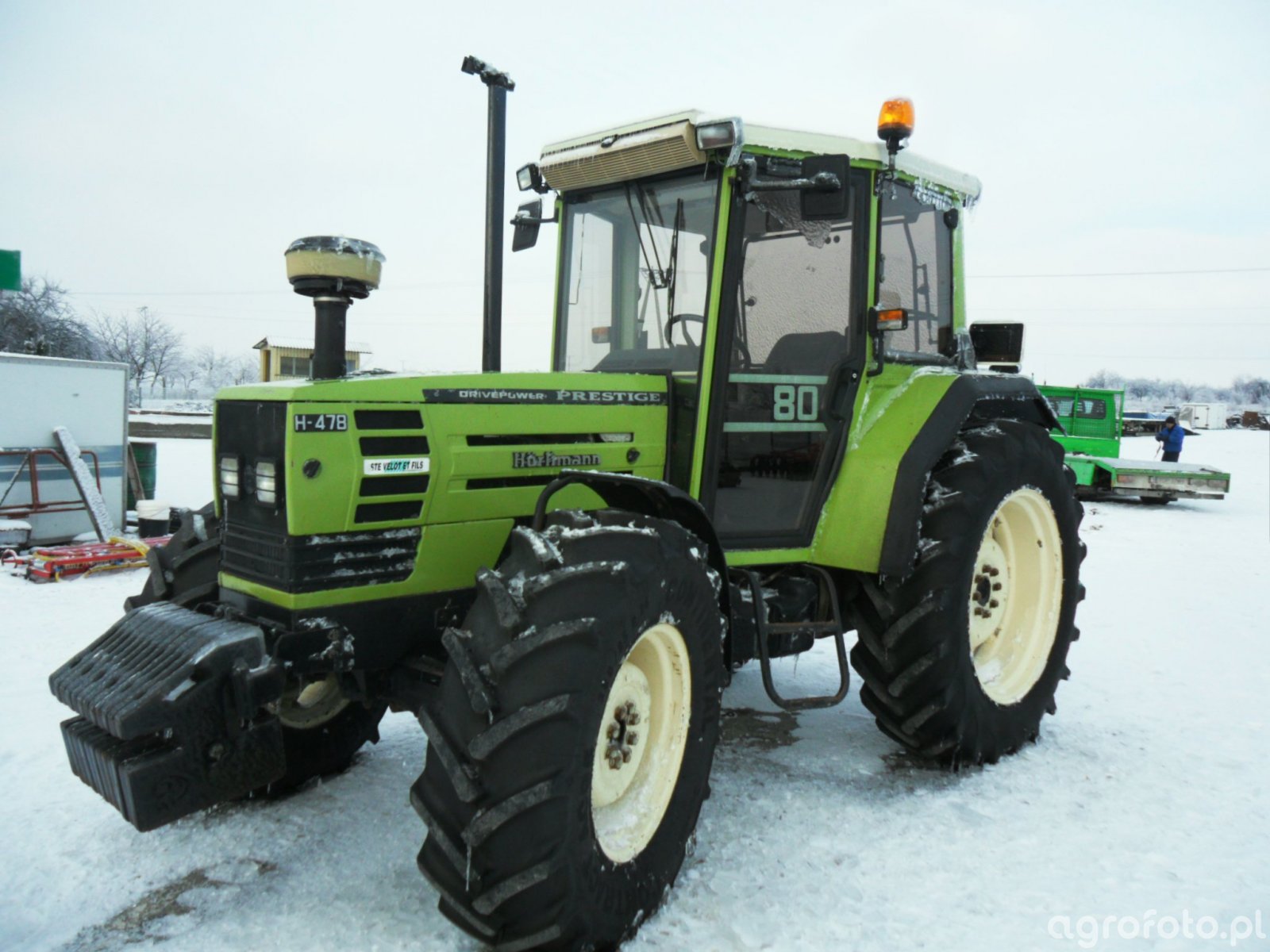

Hurlimann H-478

Name: Hurlimann H-478
Brand: Hurlimann

Hurlimann H-478 · 80 hp. Reference specifications; pending source verification.

The Hurlimann H-478 is a tractor with an 80 hp rating, positioning it centrally within its class in terms of power. Manufactured from 1986 to 1990, this model features a 4-cylinder diesel liquid-cooled engine and a 20-speed gearbox, transmitting power through a four-wheel drive system. The tractor's listed weight is 3495 kg, and it is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

80 hp

Weight

3495 kg

Catalogue coverage

Variants represented

Richest spec table

29 rows

Recorded power

80 hp

Recorded weight

3495 kg

Transmissions

20-speed

Production years

1986-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHurlimannReference

Two- or four-wheel driveReference

Power steeringReference

Engine

SAME 4.0L 4-cyl dieselReference

Fuel tank99.9 LReference

Engine59.7 kWReference

SAME 1000.4W1Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke105 x 116 mmReference

Power59.7 kWReference

Rated RPM2500Reference

Torque285.0 NmReference

Torque RPM1300Reference

Transmission

20-speedReference

Gears20 forward and reverseReference

PTO & Hydraulics

Pump flow42.4 lpmReference

Rear lift3430 kgReference

Rear PTO Type540, 1000Reference

Dimensions

Wheelbase232 cmReference

Weight3495 kgReference

Front tire14.9-24Reference

Rear tire16.9-34Reference

Ag front14.9-24Reference

Ag rear16.9-34Reference

Length408 cmReference

Height262 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
