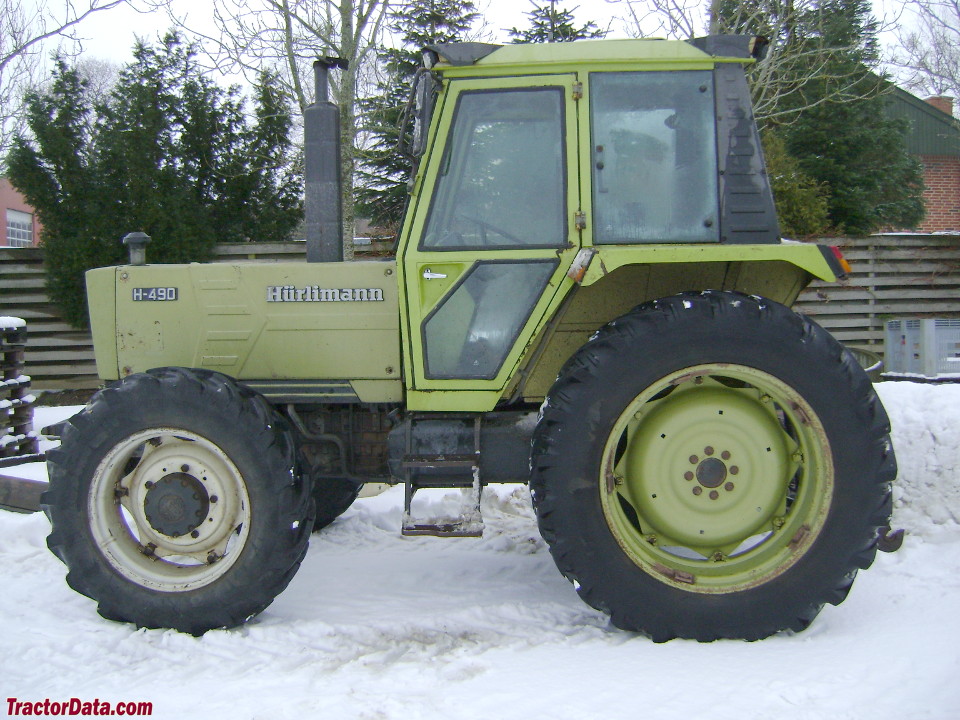

The Hurlimann H-490 is a tractor with a power rating of 95 hp, placing it in the middle of its class. It was manufactured from 1979 to 1983, equipped with a 4-cylinder diesel engine and a 12-speed gearbox driving four-wheel drive. The tractor's listed weight is between 9040 and 9591 pounds. It is suitable for tasks covering areas of approximately 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
9040 to 9591 pounds
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
95 hp
Recorded weight
4100 kg
Transmissions
12-speed
Production years
1979-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Row-Crop tractorReference
Built in Wil, SwitzerlandReference
Two- or four-wheel driveReference
Power steeringReference
Engine
SAME 4.6L 4-cyl dieselReference
Fuel tank160.1 LReference
Engine70.8 kWReference
SAMEReference
dieselReference
4-cylinderReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power70.8 kWReference
Rated RPM2300Reference
Torque380.1 NmReference
Torque RPM1390Reference
Transmission
12-speedReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Rear lift4000 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase245 cmReference
Weight9040 to 9591 poundsReference
Front tire9.00-16Reference
Rear tire18.4-34Reference
Ag front9.00-16Reference
Ag front13.6-28 (4WD)Reference
Ag rear18.4-34Reference
Length422 cmReference
Height279 cmReference
2WD Weight4100 kgReference
4WD Weight4350 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
