Tractor · 1984Unverified

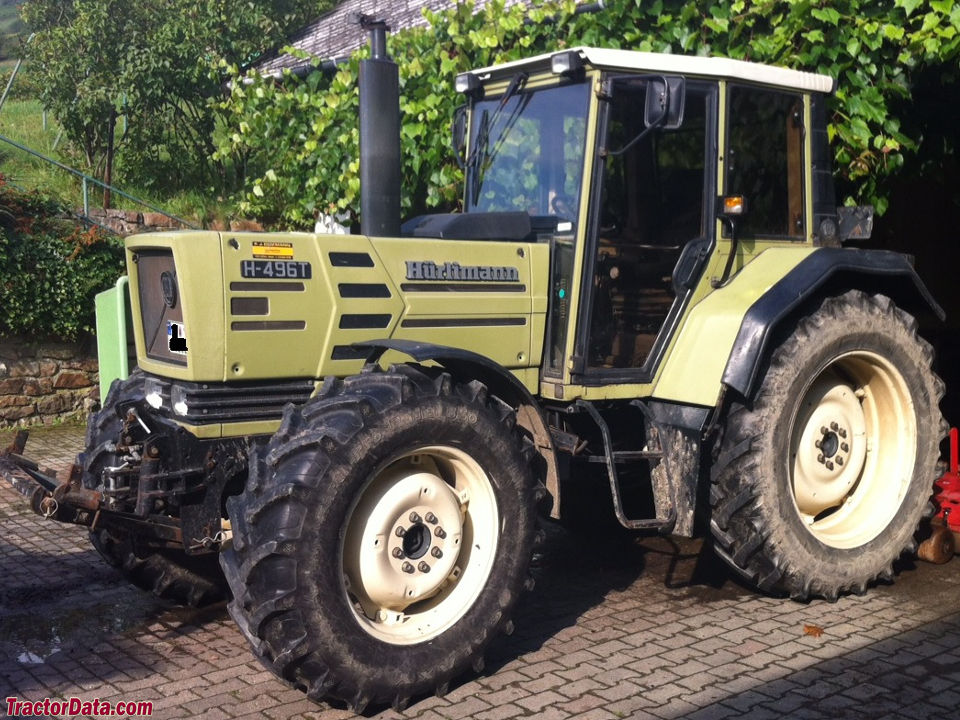

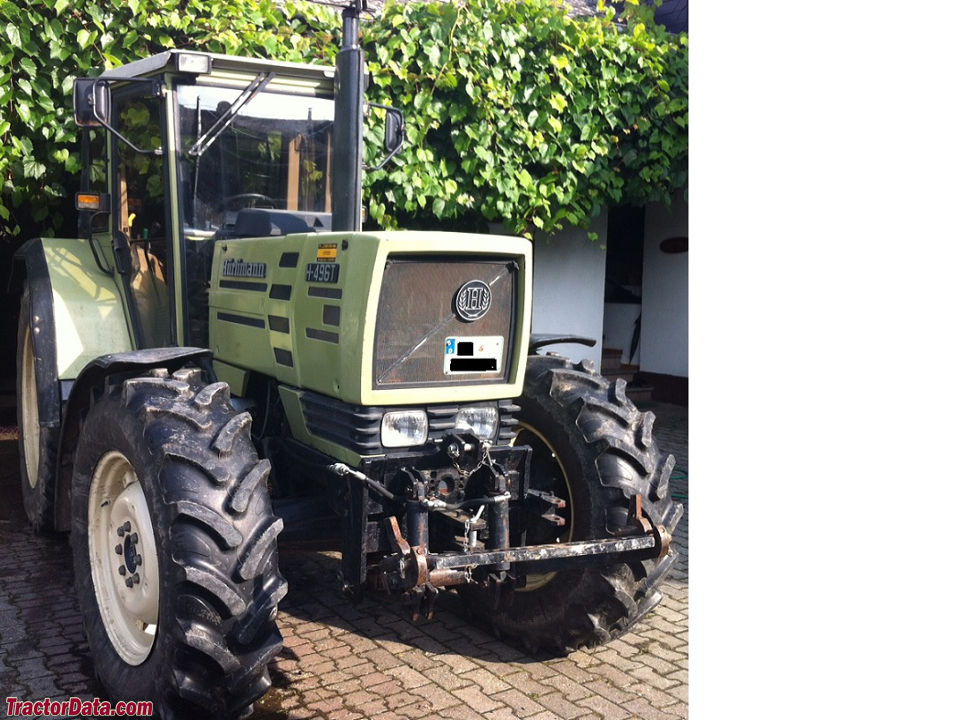

Hurlimann H-496
Hurlimann H-496 · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
8511 to 9702 pounds
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Engine
SAME 4.6L 4-cyl dieselReference
Fuel tank129.8 LReference
Engine70.8 kWReference
SAMEReference
turbocharged dieselReference
4-cylinderReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power70.8 kWReference
Rated RPM2300Reference
Torque360.0 NmReference
Torque RPM1300Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Pump flow64.0 lpmReference
Rear lift4600 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase262 cmReference
Weight8511 to 9702 poundsReference
Front tire9.00-16Reference
Rear tire16.9-34Reference
Ag front9.00-16Reference
Ag front14.9-24 (2WD)Reference
Ag rear16.9-34Reference
Length400 cmReference
Height264 cmReference
Weight3860 kgReference
Weight4400 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
