Tractor · 1980Unverified

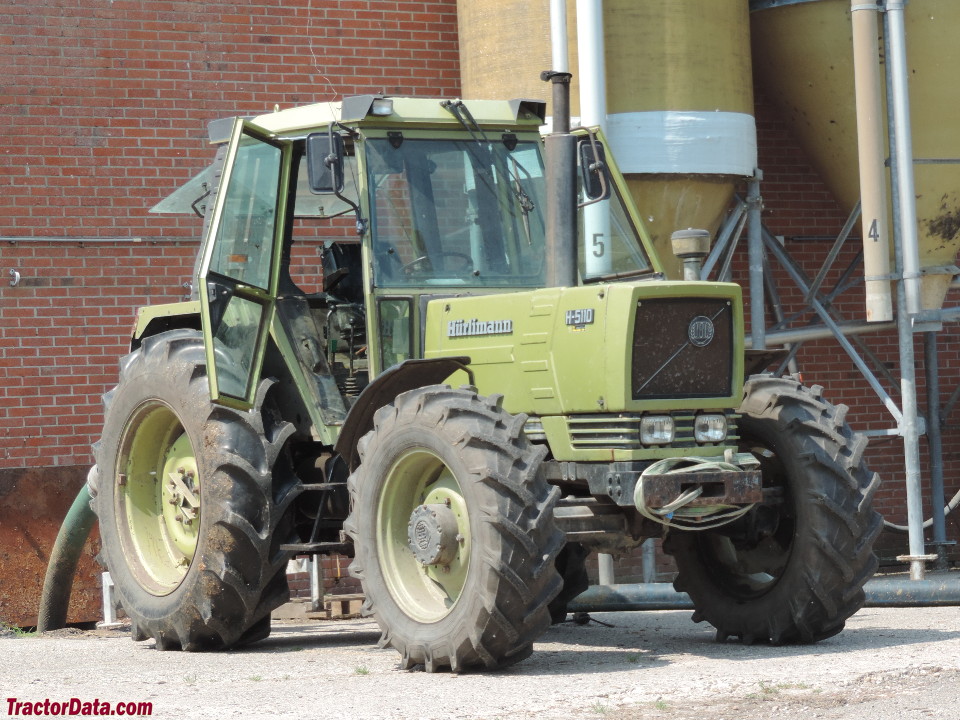

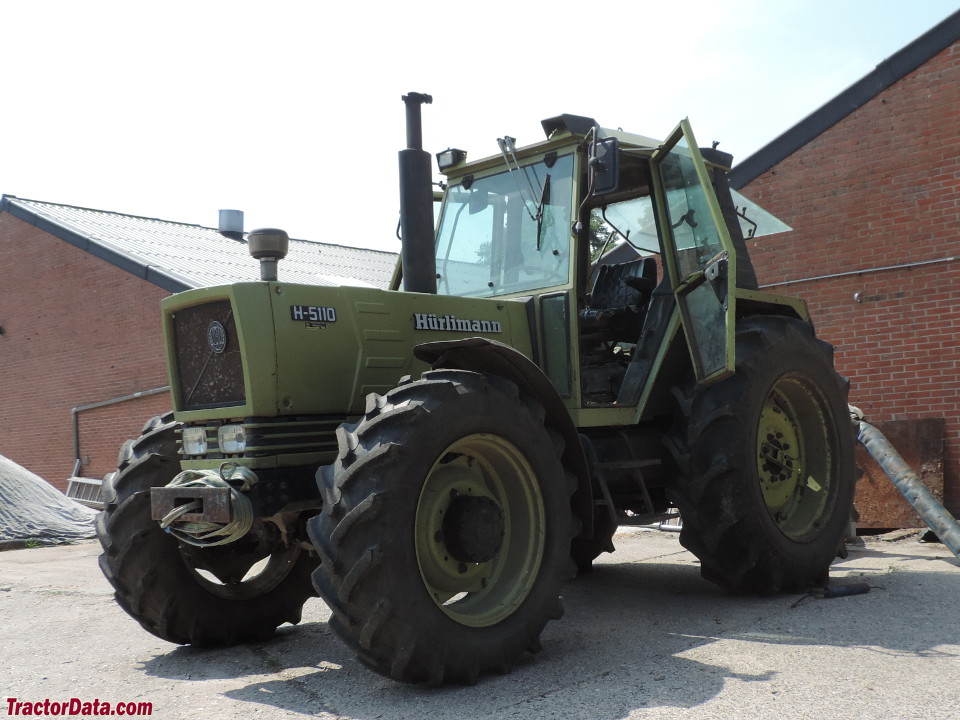

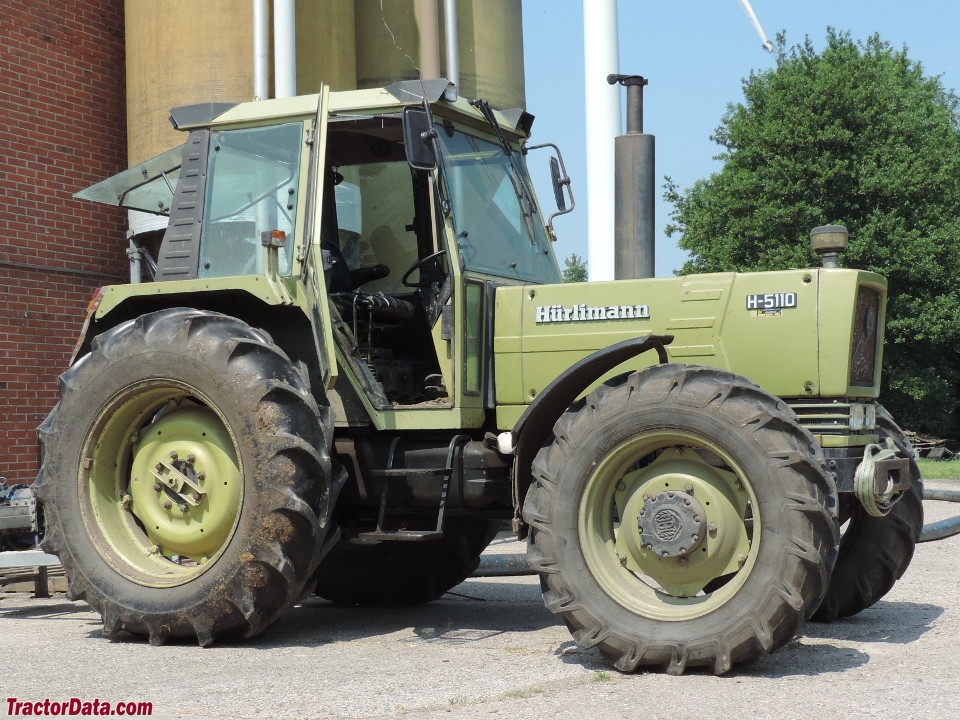

Hurlimann H-5110

Name: Hurlimann H-5110
Brand: Hurlimann

Hurlimann H-5110 · 113 hp. Reference specifications; pending source verification.

The Hurlimann H-5110 is a tractor with a rated output of approximately 113 horsepower, a typical power rating for its class. Manufactured between 1980 and 1986, this model features a 5-cylinder turbocharged diesel liquid-cooled engine, coupled with a 12-speed gearbox and four-wheel drive. The tractor's operating weight ranges from 9259 to 10472 pounds. It is suitable for use on farms covering areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

113 hp

Weight

9259 to 10472 pounds

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

113 hp

Recorded weight

4199 kg

Transmissions

12-speed synchronized

Production years

1980-1986

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHurlimannReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Available deluxe cab with air-conditioning.Reference

Engine

SAME 5.7L 5-cyl dieselReference

Fuel tank160.1 LReference

Engine84.0 kWReference

SAMEReference

turbocharged dieselReference

5-cylinderReference

liquid-cooledReference

Displacement5.7 LReference

Bore/Stroke110 x 120 mmReference

Power84.0 kWReference

Compression16:1Reference

Rated RPM2200Reference

Torque439.1 NmReference

Torque RPM1350Reference

Coolant capacity18.0 LReference

Transmission

12-speed synchronizedReference

24-speedReference

20-speed creeperReference

TypesynchronizedReference

Gears12 forward and 3 reverseReference

Four gears, plus reverse, in three ranges.Reference

Gears24 forward and 6 reverseReference

Optional mini-reduction provides a shift between the standard gears and a 15% slower gear.Reference

TypecreeperReference

Gears20 forward and 5 reverseReference

PTO & Hydraulics

Rear TypeIIReference

ControlPosition control and lower-link draft sensing.Reference

Rear lift3999 kgReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase263 cmReference

Weight9259 to 10472 poundsReference

Front tire9.00-16Reference

2WD Rear tire16.9-38Reference

2WD Standard tires (ag)Front: 9.00-16. Rear: 16.9-38Reference

4WD Standard tires (ag)Front: 14.9-28. Rear: 16.9-38Reference

2WD Optional tires (ag)Front: 9.50-20. Rear: 18.4-38Reference

4WD Optional tires (ag)Front: 14.9-30. Rear: 18.4-38Reference

4WD Optional tires (ag)Front: 16.9-24. Rear: 18.4-38Reference

Length442 cmReference

Width217 cmReference

Height (cab)283 cmReference

2WD Weight4199 kgReference

4WD Weight4750 kgReference

Ground clearance46 cmReference

Front tread169 to 218 cmReference

Rear tread173 to 215 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
