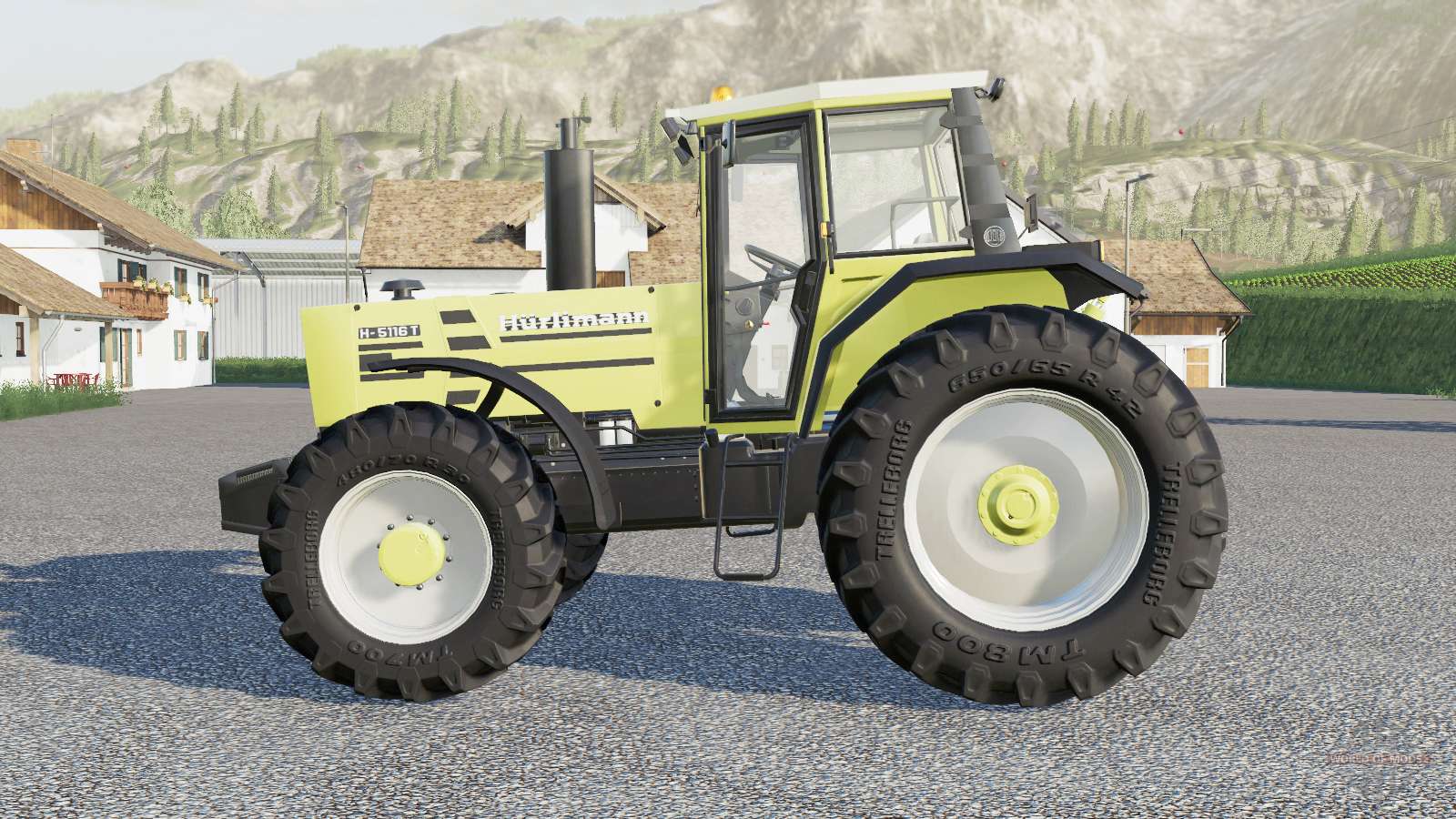

The Hurlimann H-5116 is a tractor with an approximate output of 110 horsepower, a typical power figure for its class. It was manufactured from 1984 to 1989. The tractor is equipped with a 5-cylinder turbocharged diesel engine, paired with mechanical front-wheel drive and a hydrostatic transmission. Its operating weight is listed at 5100 kg, making it suitable for areas of 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
5100 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
110 hp
Recorded weight
5100 kg
Transmissions
24-speed
Production years
1984-1989
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
SAME 5.7L 5-cyl dieselReference
Fuel tank230.1 LReference
Engine82.0 kWReference
SAMEReference
turbo dieselReference
5-cylinderReference
Displacement5.7 LReference
Bore/Stroke110 x 120 mmReference
Power82.0 kWReference
Rated RPM2200Reference
Torque410.1 NmReference
Torque RPM1300Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Pump flow64.0 lpmReference
Rear lift4600 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase270 cmReference
Weight5100 kgReference
Front tire14.9-28Reference
Rear tire16.9-38Reference
Ag front14.9-28Reference
Ag rear16.9-38Reference
Length426 cmReference
Height275 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
