Tractor · 1996Unverified

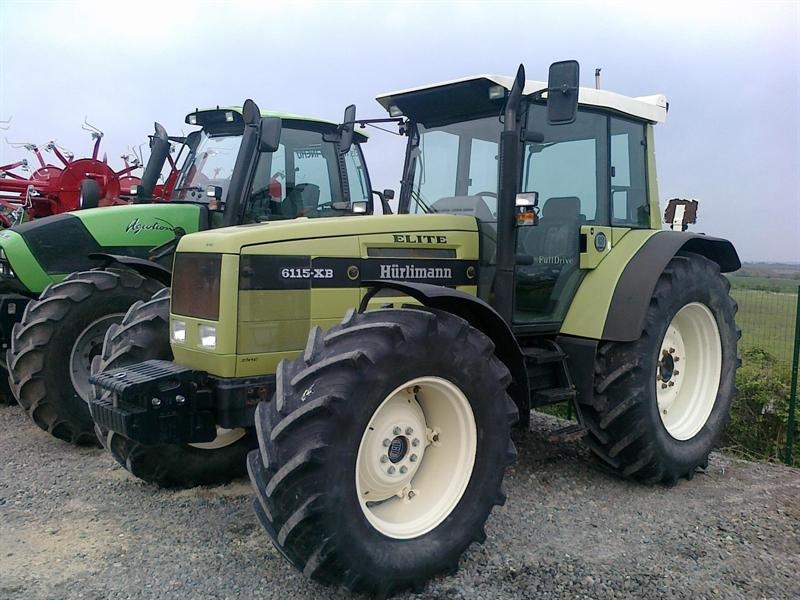

Hurlimann H-6115 Elite XB
Hurlimann H-6115 Elite XB · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
4930 kg
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank240.0 LReference
Engine85.8 kWReference
SAMEReference
dieselReference
6-cylinderReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power85.8 kWReference
Rated RPM2500Reference
Torque393.1 NmReference
Torque RPM1300Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
PTO & Hydraulics
Pump flow57.5 lpmReference
Rear lift4800 kgReference
Rear PTO Type540, 750, 1000, 1250Reference
Dimensions
Wheelbase275 cmReference
Weight4930 kgReference
Front tire14.9R30Reference
Rear tire18.4R38Reference
Ag front14.9R30Reference
Ag rear18.4R38Reference
Length459 cmReference
Height280 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
