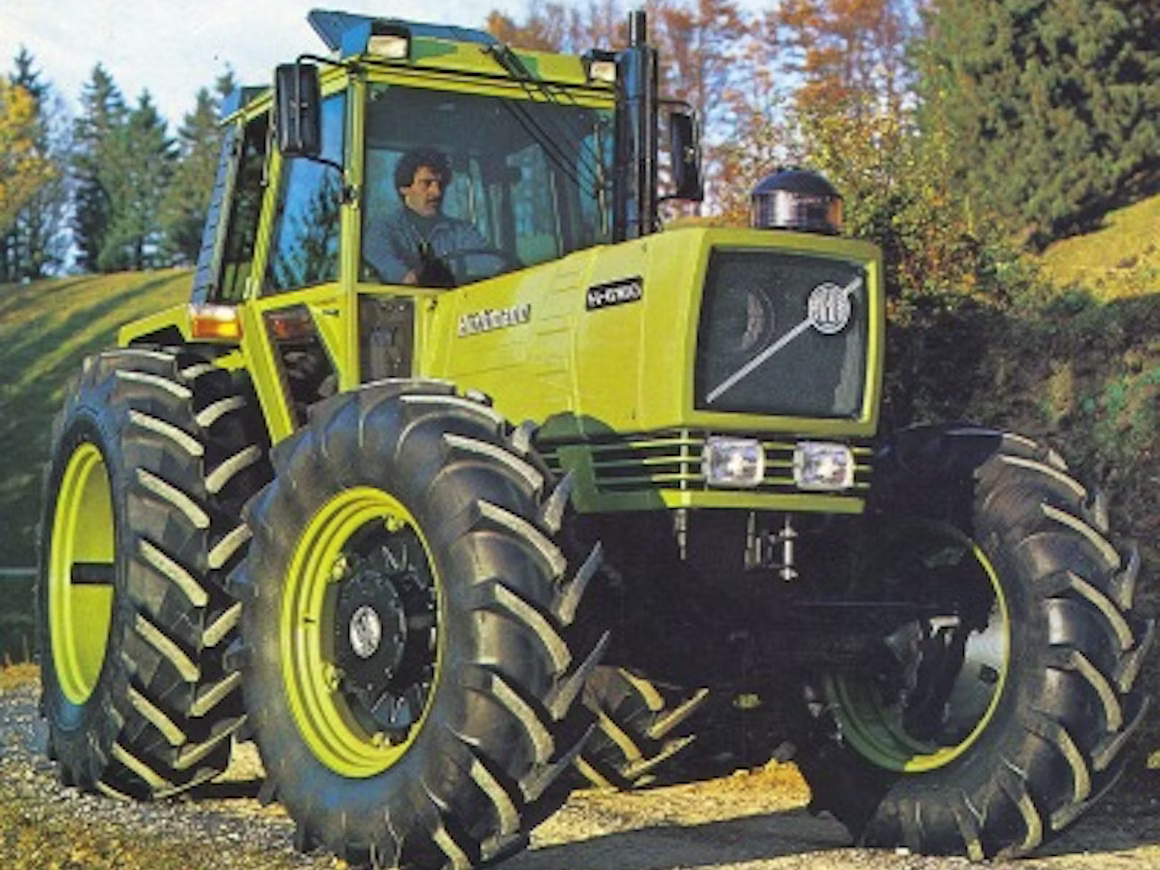

The Hurlimann H-6130 is a tractor model, rated at 130 hp, placing it at the higher power end of its class. It was produced from 1979 to 1984. The H-6130 is equipped with a 6-cylinder diesel engine and mechanical front-wheel drive with a hydrostatic transmission. Its listed operating weight is 0 kg and it is suitable for operations covering 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
0 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
130 hp
Transmissions
12-speed
Production years
1979-1984
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
SAME 6.8L 6-cyl dieselReference
Fuel tank230.1 LReference
Engine96.9 kWReference
SAMEReference
dieselReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power96.9 kWReference
Rated RPM2200Reference
Torque497.1 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear lift4000 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase286 cmReference
Weight0 kgReference
Front tire16.9-24Reference
Rear tire18.4-38Reference
Ag front16.9-24Reference
Ag rear18.4-38Reference
Length464 cmReference
Height299 cmReference
Weight0 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
