Tractor · 1991Unverified

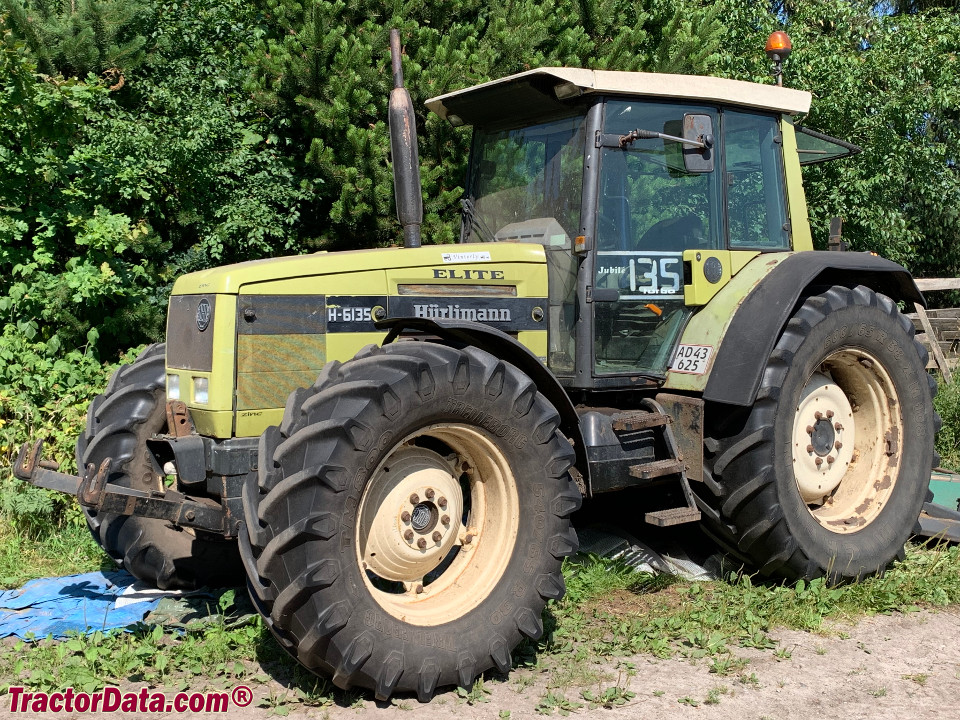

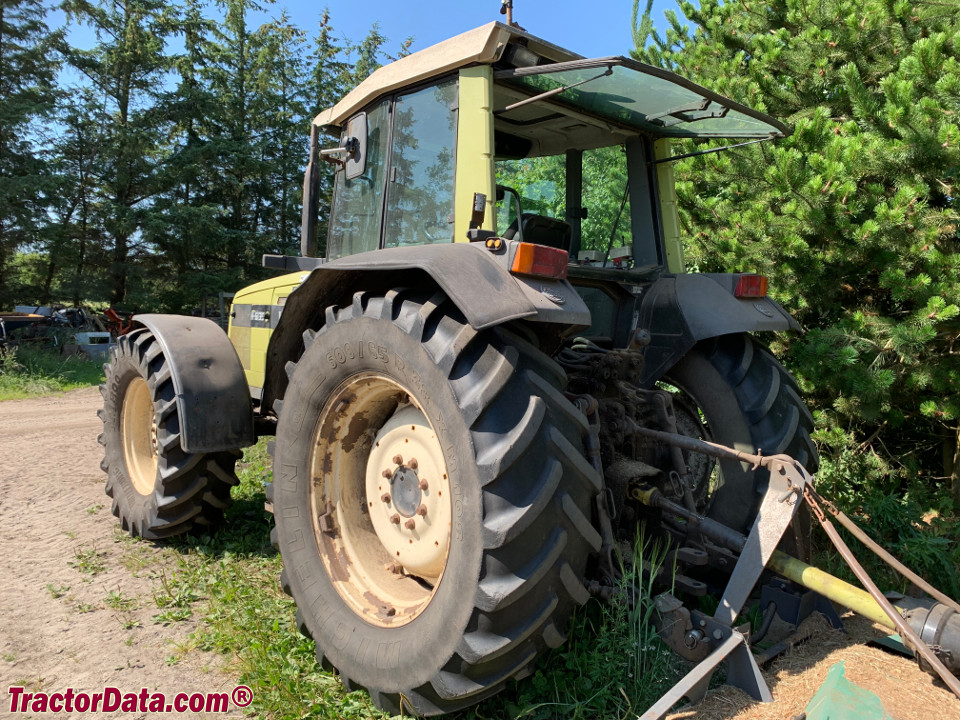

Hurlimann H-6135 Elite
Hurlimann H-6135 Elite — Elite Series · 132 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
132 hp
Weight
4880 kg
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard with available air-conditioning.Reference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank230.1 LReference
Engine98.4 kWReference
SAME 1000.6 WTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power98.4 kWReference
Rated RPM2500Reference
Torque492.1 NmReference
Torque RPM1450Reference
Transmission
36-speed synchronizedReference
48-speed creeperReference
TypesynchronizedReference
Gears36 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Six gears in six ranges with shuttle.Reference
TypecreeperReference
Gears48 forward and reverseReference
PTO & Hydraulics
Pump flow57.5 lpmReference
Rear lift6201 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000/groundReference
Dimensions
Wheelbase275 cmReference
Weight4880 kgReference
Front tire16.9x30Reference
Rear tire18.4x38Reference
Standard tires (ag)Front: 16.9x30. Rear: 18.4x38Reference
Optional tires (ag)Front: 480/70-28. Rear: 520/70-38Reference
Optional tires (ag)Front: 16.9x30. Rear: 20.8x38Reference
Length458 cmReference
Width221 cmReference
Height280 cmReference
Height (hood)187 cmReference
Ground clearance44 cmReference
Front tread180 to 205 cmReference
Rear tread175 to 225 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
