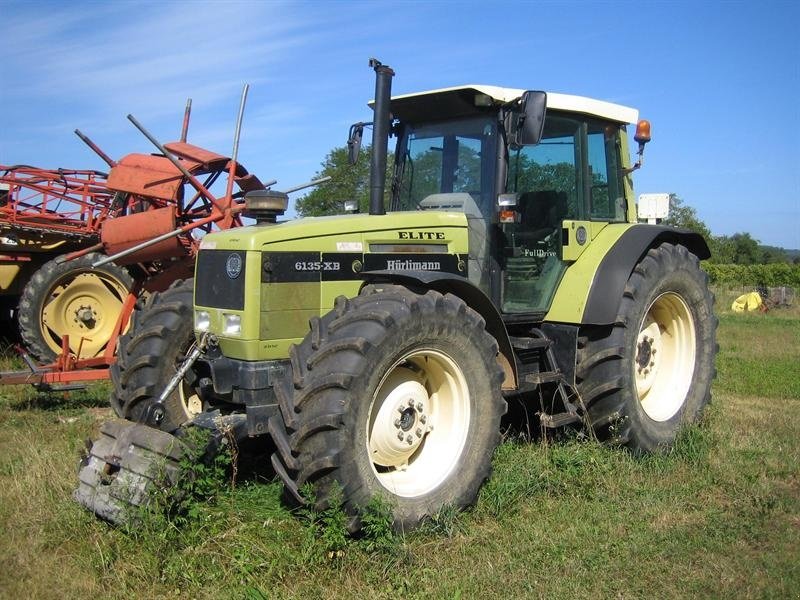

The Hurlimann H-6135 Elite XB is a tractor with an output of 132 horsepower, positioning it within the higher-powered range of its class. It was produced from 1996 to 2000 and features a 6-cylinder turbocharged diesel engine, with mechanical front-wheel drive and a hydrostatic transmission. The listed weight is 5150 kilograms, and it is suited for tasks involving areas of approximately 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
132 hp
Weight
5150 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
132 hp
Recorded weight
5150 kg
Transmissions
24-speed
Production years
1996-2000
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank240.0 LReference
Engine98.4 kWReference
SAMEReference
turbo dieselReference
6-cylinderReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power98.4 kWReference
Rated RPM2500Reference
Torque510.1 NmReference
Torque RPM1400Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
PTO & Hydraulics
Pump flow57.5 lpmReference
Rear lift4800 kgReference
Rear PTO Type540, 750, 1000, 1250Reference
Dimensions
Wheelbase275 cmReference
Weight5150 kgReference
Front tire14.9R30Reference
Rear tire18.4R38Reference
Ag front14.9R30Reference
Ag rear18.4R38Reference
Length459 cmReference
Height280 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
