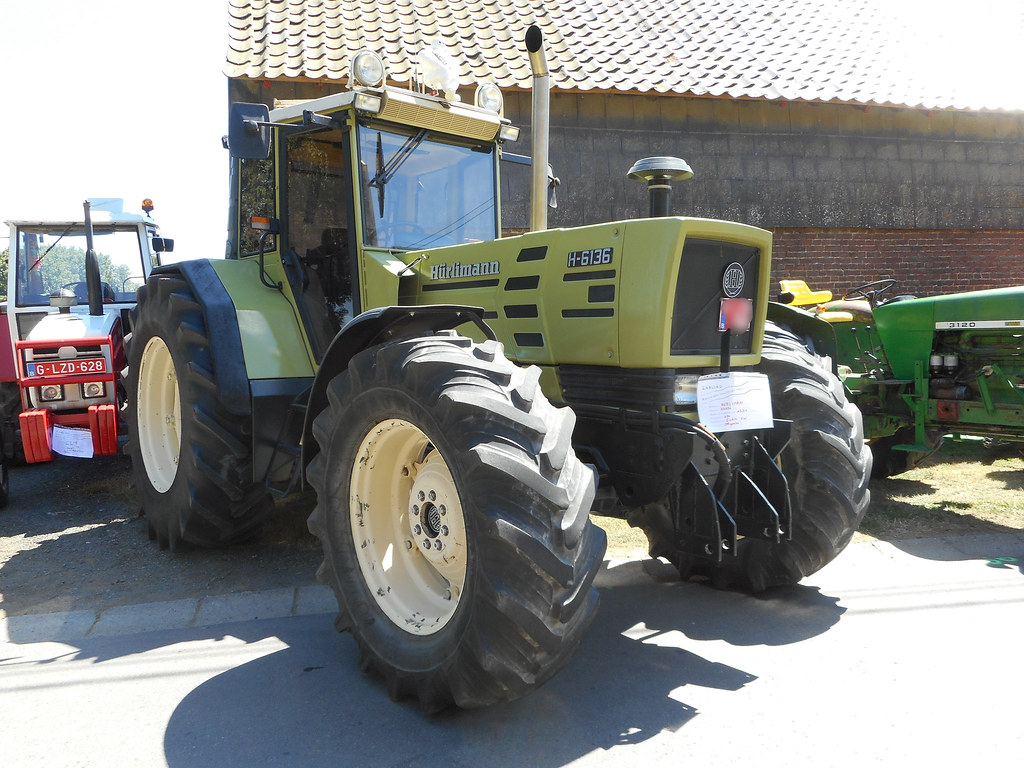

The Hurlimann H-6136 is a tractor with a rated output of 130 horsepower, positioning it among the more powerful machines in its class. It was manufactured from 1984 to 1989. The tractor features a 6-cylinder diesel engine, which drives the mechanical front-wheel drive through a hydrostatic transmission. Its listed weight is 5680 kilograms, making it suitable for tasks covering approximately 200-800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
5680 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
130 hp
Recorded weight
5680 kg
Transmissions
24-speed
Production years
1984-1989
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
SAME 6.8L 6-cyl dieselReference
Fuel tank230.1 LReference
Engine96.9 kWReference
SAMEReference
dieselReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power96.9 kWReference
Rated RPM2260Reference
Torque480.0 NmReference
Torque RPM1300Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Pump flow68.1 lpmReference
Rear lift7001 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase286 cmReference
Weight5680 kgReference
Front tire14.9-30Reference
Rear tire18.4-38Reference
Ag front14.9-30Reference
Ag rear18.4-38Reference
Length451 cmReference
Height275 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
