Tractor · 1979Unverified

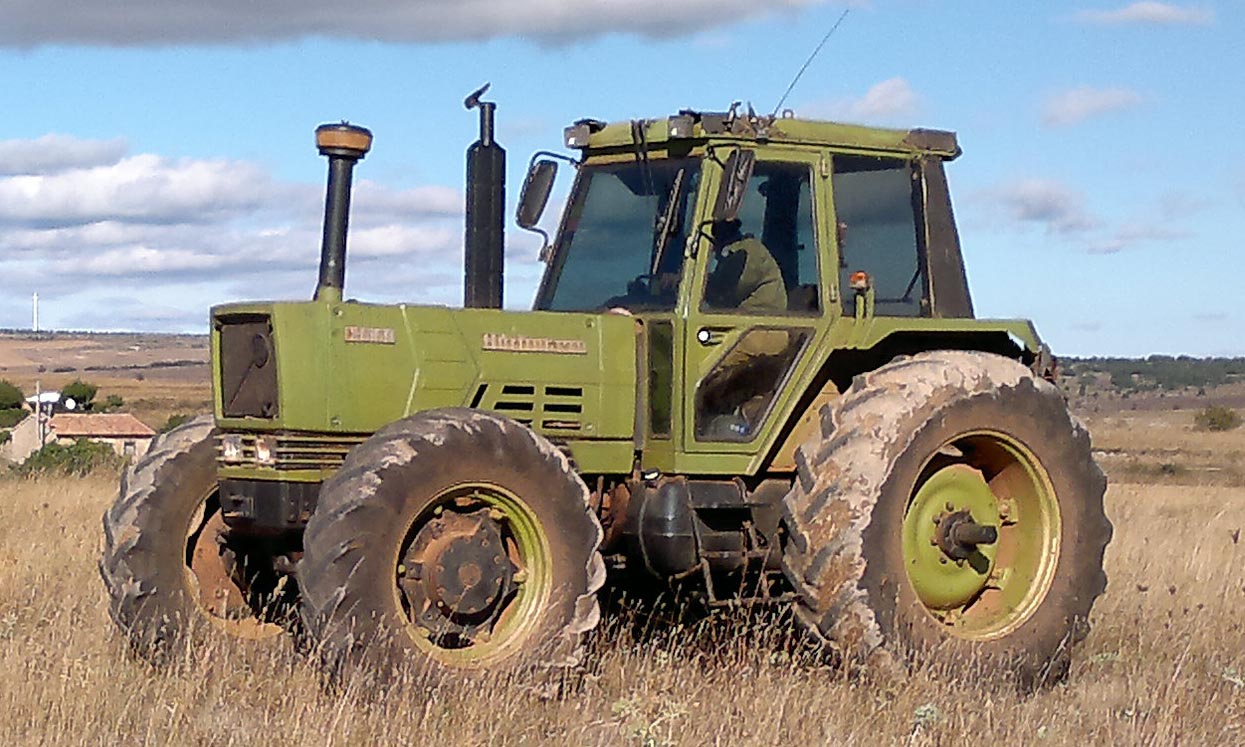

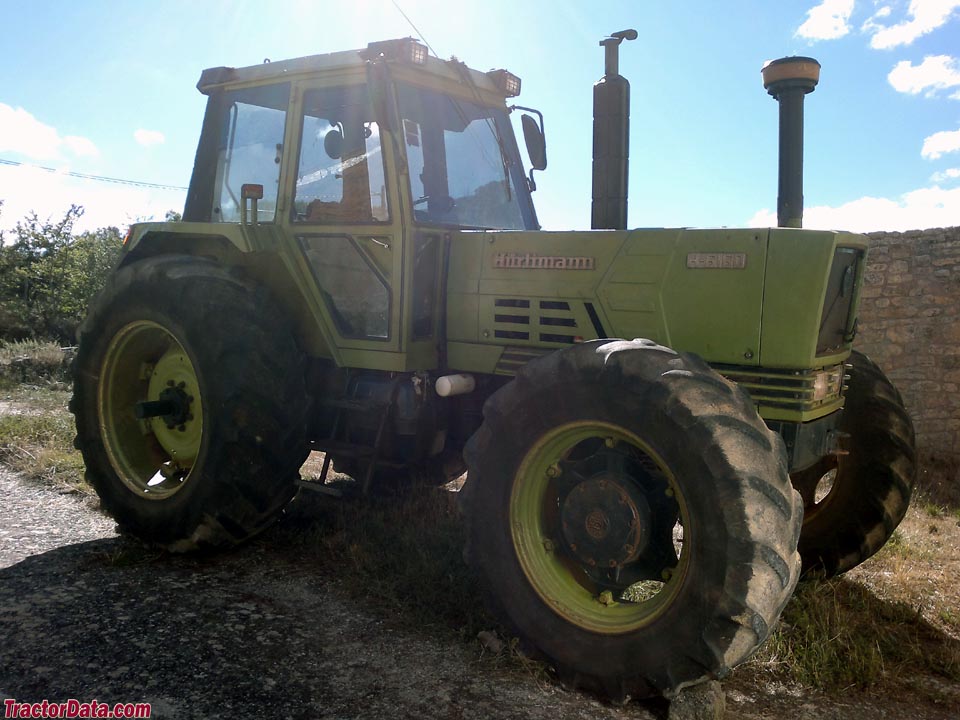

Hurlimann H-6160
Hurlimann H-6160 · 160 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
160 hp
Weight
6500 kg
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Engine
SAME 6.8L 6-cyl dieselReference
Fuel tank230.1 LReference
Engine119.3 kWReference
SAMEReference
turbocharged dieselReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power119.3 kWReference
Rated RPM2200Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow65.1 lpmReference
Rear lift6001 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase286 cmReference
Weight6500 kgReference
Front tire16.9-30Reference
Rear tire20.8-38Reference
Ag front16.9-30Reference
Ag rear20.8-38Reference
Length473 cmReference
Height294 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
