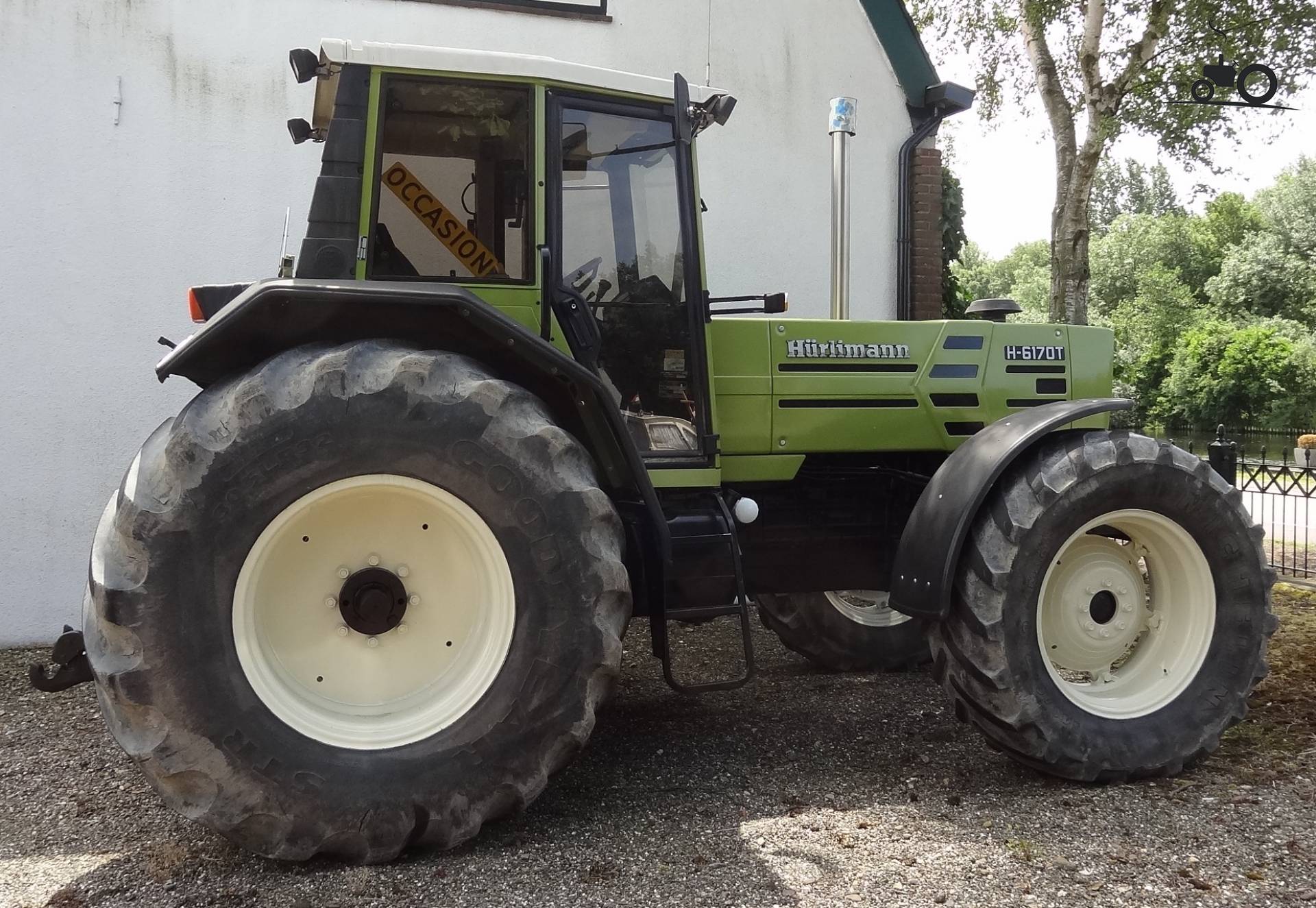

The Hurlimann H-6170 is a tractor with an output of approximately 165 horsepower, placing it at the higher end of its class. This model was produced from 1984 to 1991. It features a 6-cylinder turbocharged diesel engine, combined with mechanical front-wheel drive and a hydrostatic transmission. The tractor has an operating weight of 6500 kg and is suitable for operations covering 600–1,500 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Weight
6500 kg
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
165 hp
Recorded weight
6500 kg
Transmissions
27-speed
Production years
1984-1991
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
SAME 6.8L 6-cyl dieselReference
Fuel tank240.0 LReference
Engine123.0 kWReference
SAMEReference
turbo dieselReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power123.0 kWReference
Rated RPM2200Reference
Torque670.1 NmReference
Transmission
27-speedReference
Gears27 forward and 9 reverseReference
PTO & Hydraulics
Pump flow68.1 lpmReference
Rear lift7001 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase286 cmReference
Weight6500 kgReference
Front tire16.9-30Reference
Rear tire20.8-38Reference
Ag front16.9-30Reference
Ag rear20.8-38Reference
Length473 cmReference
Height284 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
