Tractor · 1999Unverified

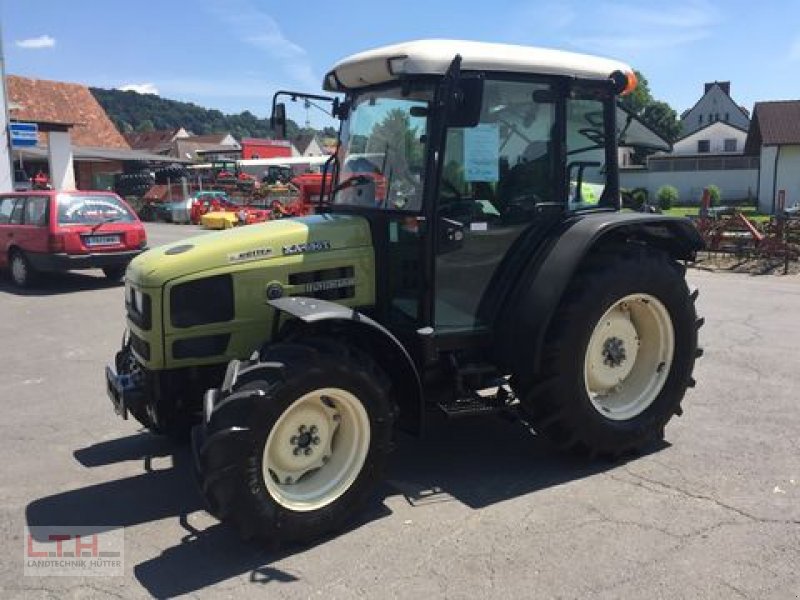

Hurlimann H-656 XA
Hurlimann H-656 XA — XA Series · 63 hp. Reference specifications; pending source verification.
The Hurlimann H-656 XA is a tractor model rated at approximately 63 hp, positioning it at the lighter end of its class. It was produced between 1999 and 2004. The tractor features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 16-speed gearbox. Its operating weight ranges from 5733 to 6284 pounds, making it suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Weight
5733 to 6284 pounds
Catalogue coverage
Variants represented
2
Richest spec table
42 rows
Recorded power
63 hp
Recorded weight
2600 kg
Transmissions
16-speed
Production years
1999-2004
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerHurlimann (a part of SAME)Reference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Variants
Sprint 664-65similar Lamborghini modelReference
Engine
SAME 3.0L 3-cyl dieselReference
Fuel tank90.1 LReference
Engine47.0 kWReference
SAMEReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 116 mmReference
Power47.0 kWReference
Rated RPM2350Reference
Torque225.1 NmReference
Torque RPM1450Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
30-speedReference
Gears16 forward and 8 reverseReference
Gears30 forward and 15 reverseReference
PTO & Hydraulics
Pump flow36.0 lpmReference
Rear lift2900 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase211 cmReference
Weight5733 to 6284 poundsReference
Front tire7.50-16Reference
Rear tire420/70R28Reference
Ag front7.50-16Reference
Ag front320/70R20 (4WD)Reference
Ag rear420/70R28Reference
Length372 cmReference
Height240 cmReference
Weight2600 kgReference
Weight2850 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
